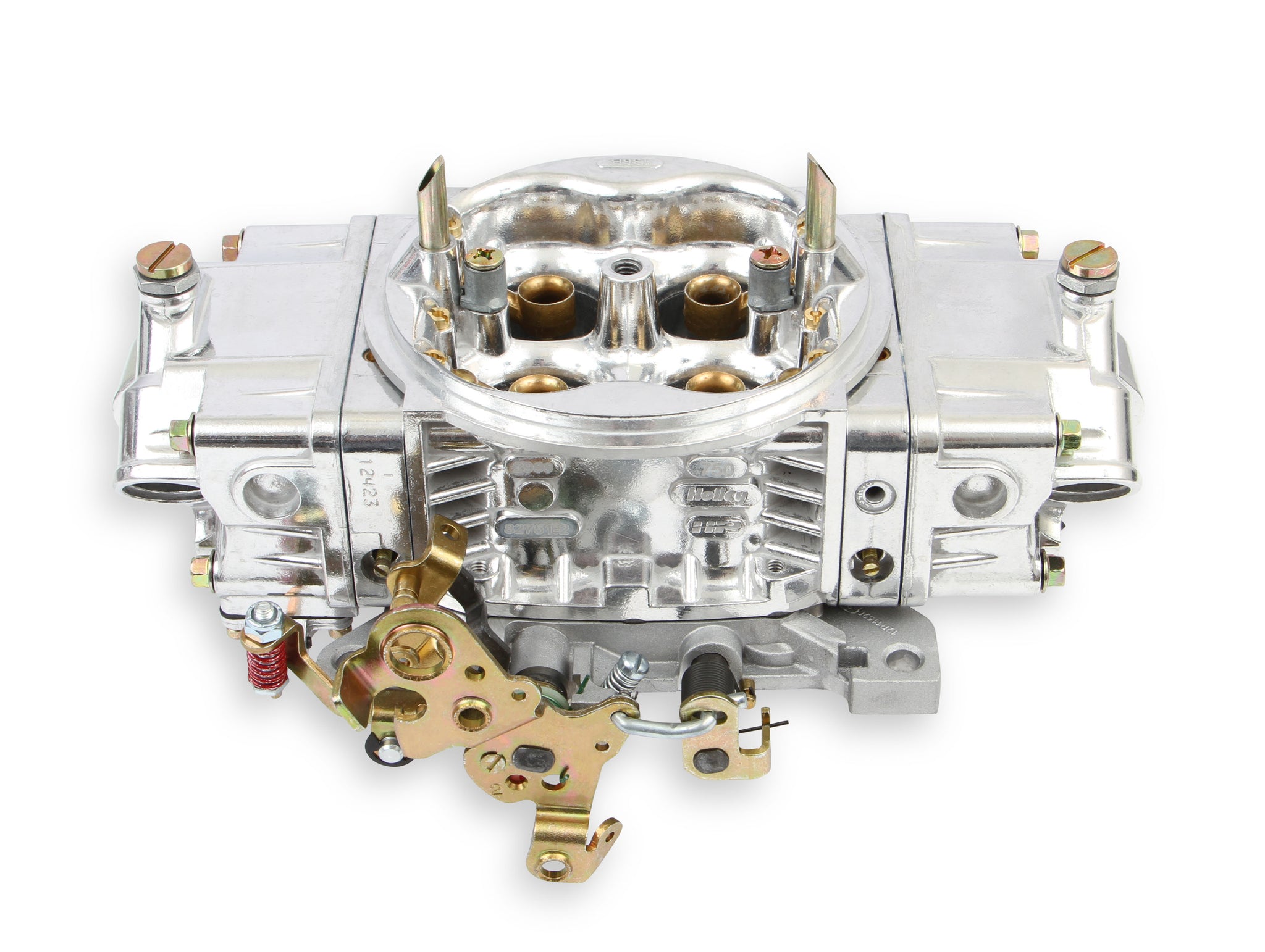

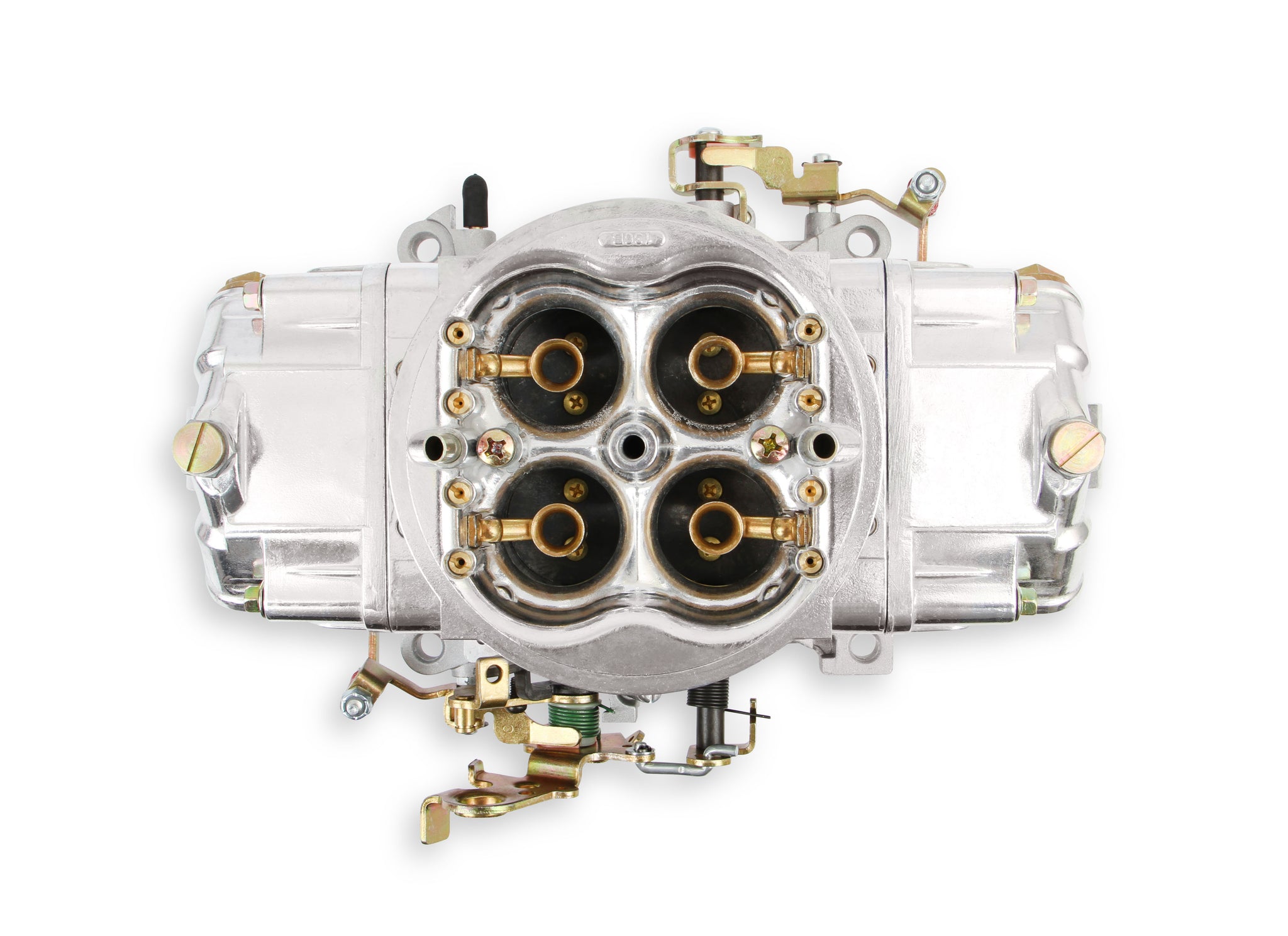

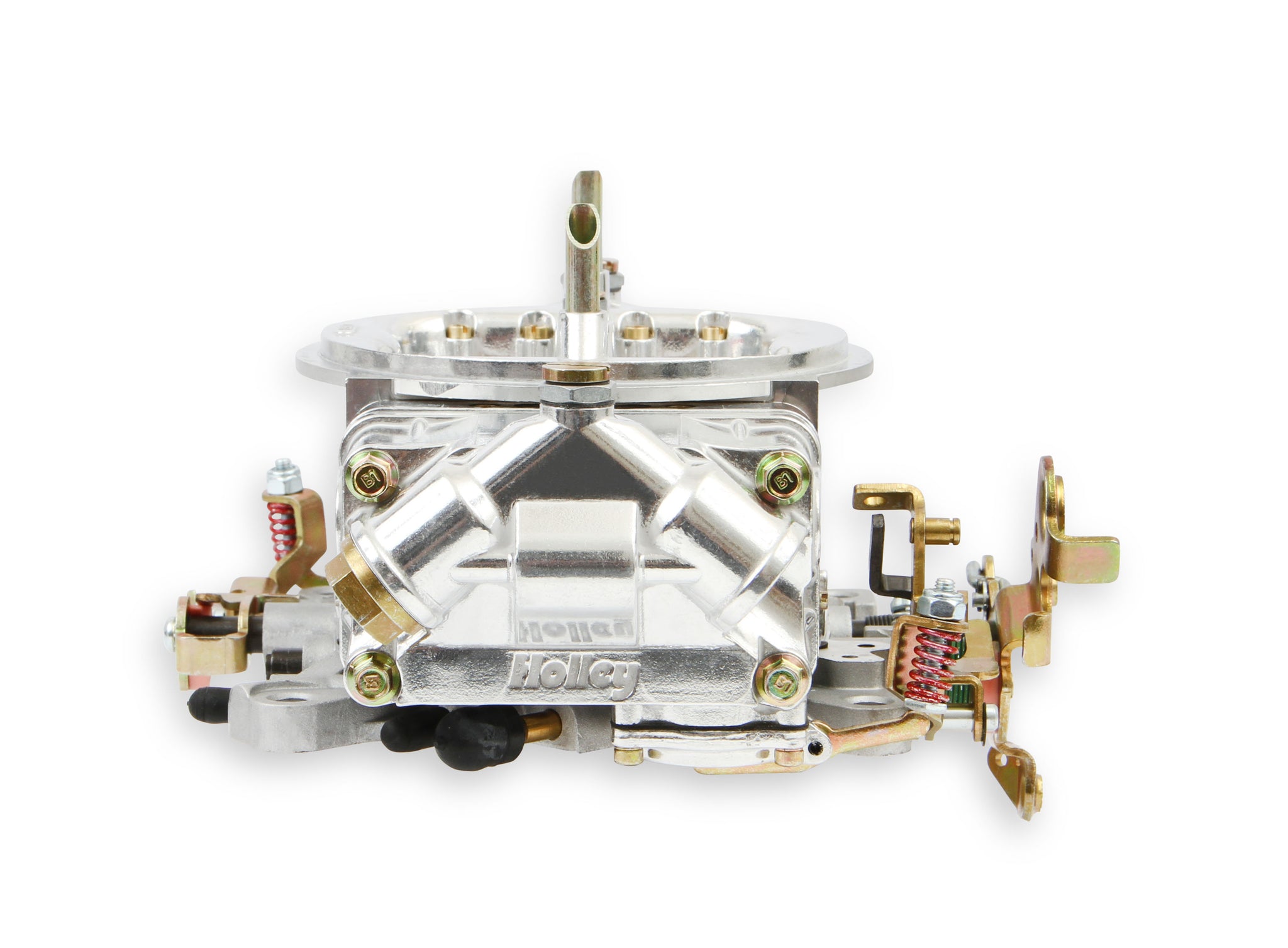

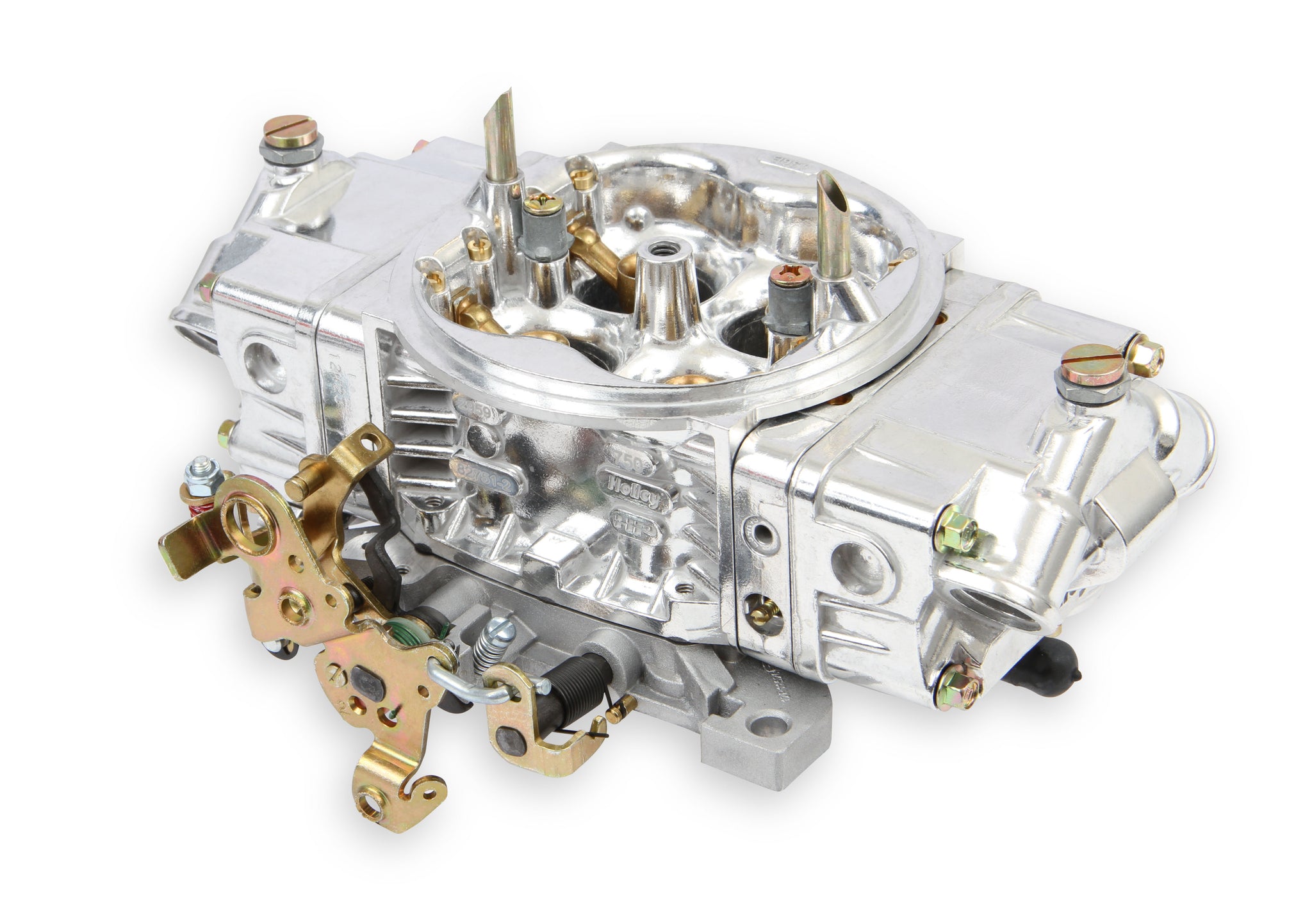

Holley 750 CFM - 4150 - Mechanical Secondaries - Shiny - Gasoline 0-82751
Specifications:
| 857 | 4 |
| Barrels | 4 |
| 1385 | Polished |
| 2464 | Polished |
| Booster | Downleg |
| 10788 | Downleg |
| Brand | Holley |
| Carburetor Material | Aluminum |
| Carburetor Use | Performance and Race |
| Category | Air and Fuel Delivery |
| CFM | 750 |
| Choke | None |
| Choke Type | None |
| Condition | New |
| Cubic Feet Per Minute Rating | 750 |
| Emission Code | 3 |
| Finish | Shiny |
| 8783 | Square/4150 |
| Fuel | Gasoline |
| Fuel Inlet | Dual |
| 3390 | Performance |
| High Speed Air Bleed | 36 |
| Idle Air Bleed Size | 71 |
| 4234 | Yes |
| 574 | No |
| Marine Use | No |
| Material | Aluminum |
| Model | 4150 |
| 356 | 4 |
| part type | Carburetor |
| Primary Jet Diameter | 77 |
| Primary Main Jet | 77 |
| Primary Power Valve | 4.5 |
| Primary Pump Nozzle Size | 28 |
| Product Type | Carburetor |
| Secondaries | Mechanical |
| Secondary Main Jet | 84 |
| Secondary Pump Nozzle Size | 31 |
| 4708 | No |
| Sub Category | Carburetion |
| Supercharged Application | No |
| Throttle Bore | 1.688 inch |
| Venturii Size | 1.375 inch |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| Description_INV | 750 CFM STREET HP MECH SEC |

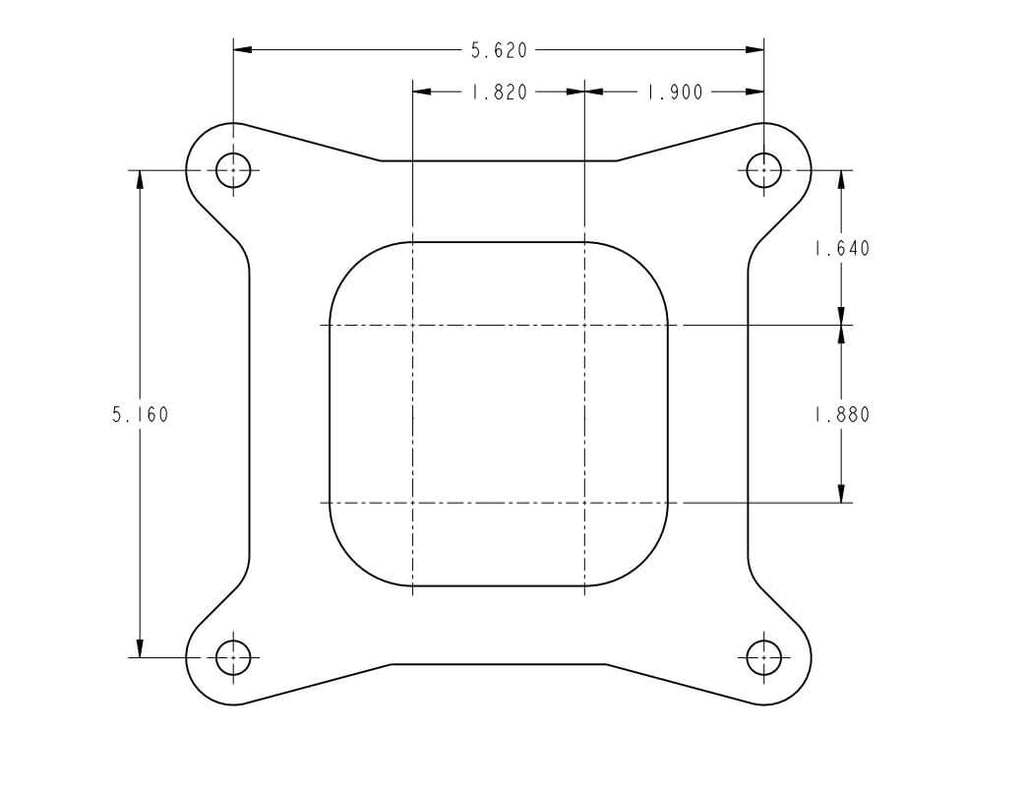

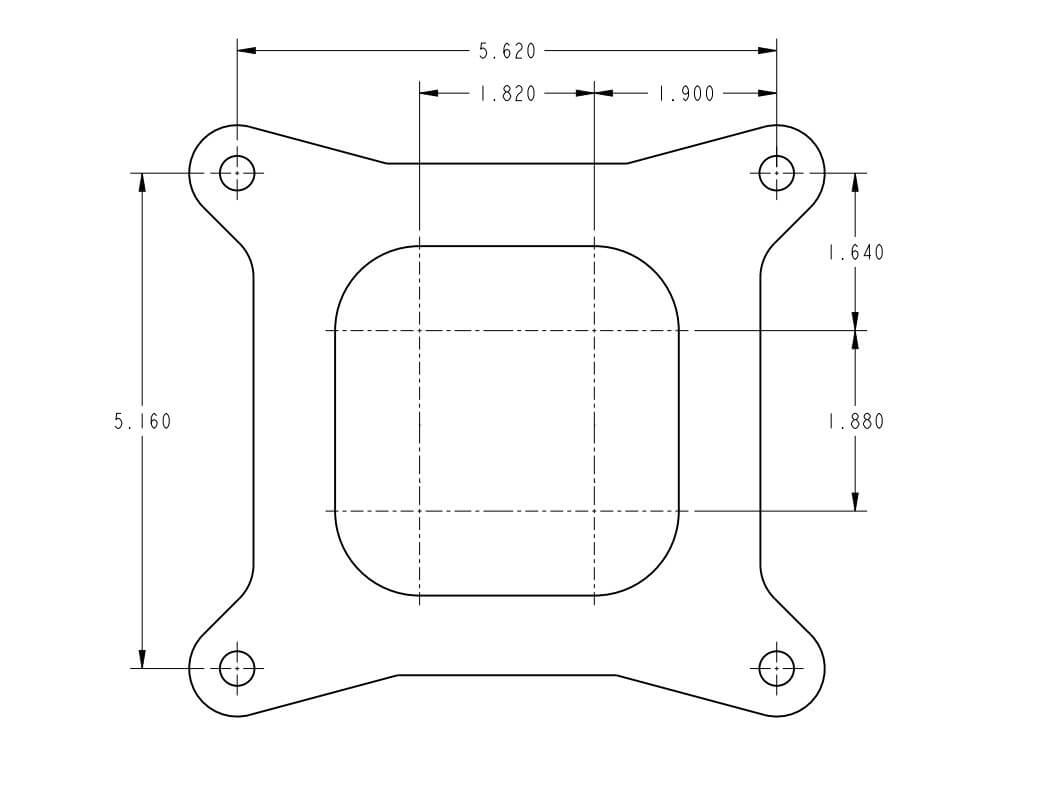

| Description_ASC | This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932. |
| Description_DES | Holley Street HP Carburetor |
| Description_EXT | 750 CFM - 4150 - Mechanical Secondaries - Shiny - Gasoline |
| Description_MKT | The Street HP™ uses the best features from Holley's race Bred 4150 HP™ carbs, but tamed for street and light competition use. |
| Description_MKT | The Street HP features the contoured main body from the 4150 HP™ and has a tumble polished shiny finish and screw in air bleeds for precision tuning capabilities. The metering system includes a timed spark port for a vacuum advance distributor and is calibrated for a hot street/strip engine setup for outstanding throttle response and drivability. A street HP base plate is used on the 650 and 750 cfm models so there are plenty of vacuum ports for power brakes, PCV, etc. |
| Description_MKT | The Street HP takes all the great features from the race HP and the Double Pumper and combines them into the perfect street/strip carburetor. |
| Description_MKT | Limited to stock. replaced by 0-82751SA |
| Description_FAB | Vibratory polished for good looks |
| Description_FAB | Optimized street/strip calibration for outstanding throttle response and drivability |
| Description_FAB | Contoured venturri inlet offers balanced airflow for increased horsepower |
| Description_FAB | Screw in air bleeds for precision tuning capabilities |
| Description_FAB | Four corner idle for precise idle control |
| Description_FAB | Mechanical secondaries for awesome tire turning performance |
| Description_FAB | Dual accelerator pumps for additional fuel under initial acceleration |
| Description_FAB | Dual feed fuel inlets for constant high volume fuel delivery |
| Description_FAB | Compatible with GM, Chrysler, and Ford A/T kickdown linkage. Additional parts may be required. |
| Description_FAB | Intended for lightweight vehicles w/ manual trans or automatics with high stall & low gearing |
| Description_FAB | 100% wet-flow tested by Holley technicians to assure it arrives ready to run! |
