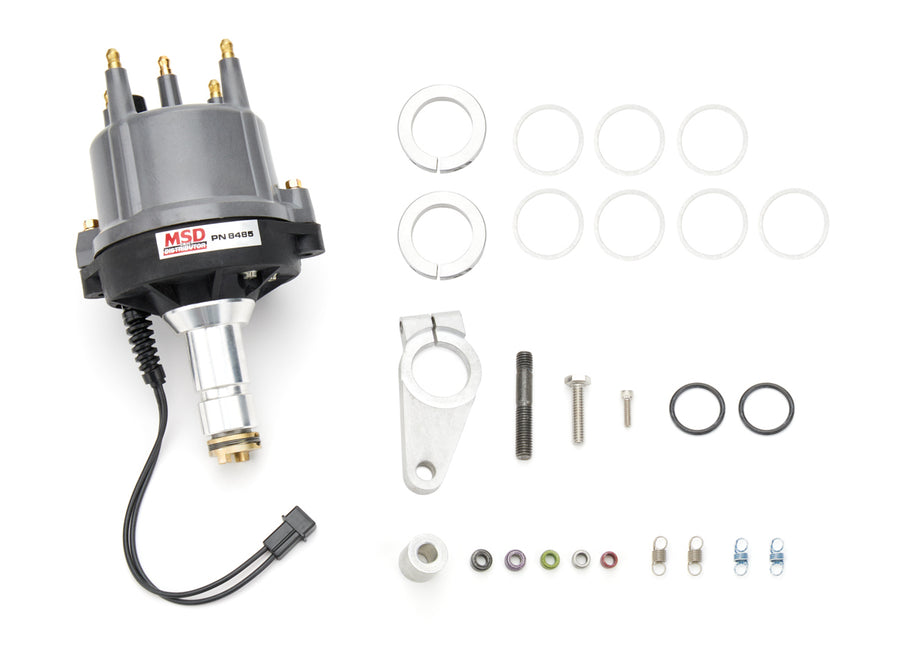

MSD VW Billet Distributor 8485
Specifications:
| Brand | MSD |
| Color | Gray |
| 9047 | Yes |
| Distributor Type | Magnetic Pickup |
| Emission Code | 3 |
| 3390 | Performance |
| 5626 | Yes |
| 6783 | No |
| 9048 | Yes |
| Make | Volkswagen |
| Product Type | Distributor |
| Warning | California Proposition 65 |
| part type | Distributor |
| Category | Ignition |
| Sub Category | Distributor and Magneto |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| Brand | MSD |
| Color | Gray |
| 9047 | Yes |
| Distributor Type | Magnetic Pickup |
| Emission Code | 3 |
| 3390 | Performance |
| 5626 | Yes |
| 6783 | No |
| 9048 | Yes |
| Make | Volkswagen |
| Product Type | Distributor |
| Warning | California Proposition 65 |
| part type | Distributor |
| Category | Ignition |
| Sub Category | Distributor and Magneto |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| Description_SHO | Distributor |
| Description_INV | Distributor, VW Billet |
| Description_DES | VW Billet Distributor |
| Description_EXT | VW Type I (air cooled) Billet distributor requires an MSD 6 or 7-series ignition. |
| Description_MKT | Using technology gained from building distributors for off-road and NASCAR racers, MSD offers this Billet Distributor for the popular Type 1 engine. |
| Description_MKT | A maintenance-free magnetic pickup is responsible for triggering the MSD Ignition. This pickup is accurate to within 1° at any rpm so you won't have to worry about points float or "burbles" at top end speeds. The pickup is triggered by a precision reluctor that is attached to a hardened steel shaft. For increased stability, a sealed ball bearing is used to guide the shaft. Since every engine application is different, the MSD Billet distributor features an easy-to-adjust mechanical advance assembly. By simply changing the advance springs and stop bushing you can tune in 24 different advance curves. |
| Description_FAB | Easy-to-adjust mechanical advance with supplied springs and stop bushings |
| Description_FAB | CNC machined billet aluminum housing and Dupont Rynite base |
| Description_FAB | Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction |
| Description_FAB | Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range |
| Description_FAB | No CARB Exemption Order Number |
| Description_FAB | Advance weight pins are staked and tig welded to the plate• Nylon pads ensure smooth operation of the advance weights |
| Description_FAB | Must be used with an MSD Ignition Control |
| Description_FAB | Mechanical advance assembly can be locked out for crank trigger systems |
| Description_FAB | Supplied with bolt down distributor cap and rotor |
| Description_FAB | Designed as a performance upgrade for VW Type I air cooled engines |
| Description_FAB | Polished steel shaft is QPQ coated and guided by a sealed ball bearing |
| Description_SHO | Distributor |
| Description_INV | Distributor, VW Billet |
| Description_DES | VW Billet Distributor |
| Description_EXT | VW Type I (air cooled) Billet distributor requires an MSD 6 or 7-series ignition. |
| Description_MKT | Using technology gained from building distributors for off-road and NASCAR racers, MSD offers this Billet Distributor for the popular Type 1 engine. |
| Description_MKT | A maintenance-free magnetic pickup is responsible for triggering the MSD Ignition. This pickup is accurate to within 1° at any rpm so you won't have to worry about points float or "burbles" at top end speeds. The pickup is triggered by a precision reluctor that is attached to a hardened steel shaft. For increased stability, a sealed ball bearing is used to guide the shaft. Since every engine application is different, the MSD Billet distributor features an easy-to-adjust mechanical advance assembly. By simply changing the advance springs and stop bushing you can tune in 24 different advance curves. |
| Description_FAB | Easy-to-adjust mechanical advance with supplied springs and stop bushings |
| Description_FAB | CNC machined billet aluminum housing and Dupont Rynite base |
| Description_FAB | Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction |
| Description_FAB | Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range |
| Description_FAB | No CARB Exemption Order Number |
| Description_FAB | Advance weight pins are staked and tig welded to the plate• Nylon pads ensure smooth operation of the advance weights |
| Description_FAB | Must be used with an MSD Ignition Control |
| Description_FAB | Mechanical advance assembly can be locked out for crank trigger systems |
| Description_FAB | Supplied with bolt down distributor cap and rotor |
| Description_FAB | Designed as a performance upgrade for VW Type I air cooled engines |
| Description_FAB | Polished steel shaft is QPQ coated and guided by a sealed ball bearing |
