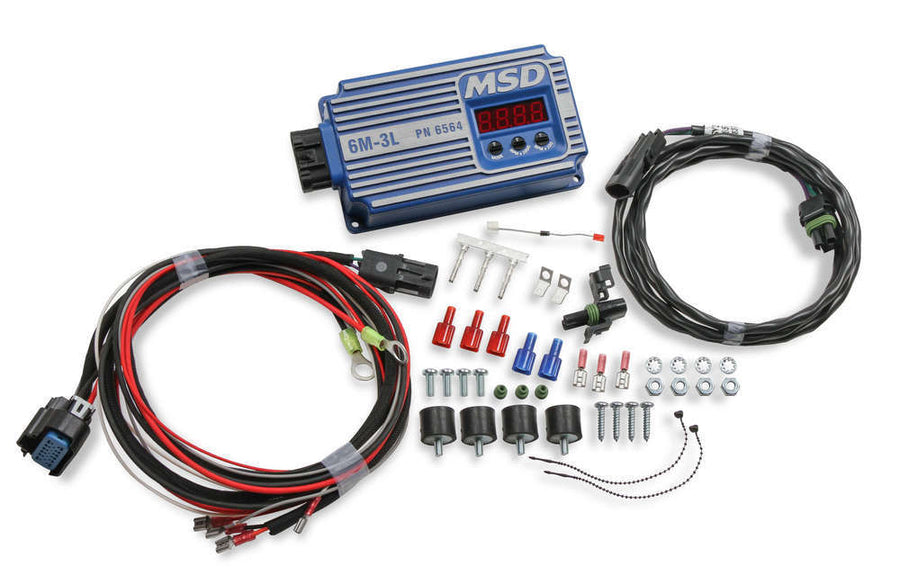

MSD MSD Digital 6M-3L Marine Ignition 6564
Specifications:
| 43 | Male Female |
| 342 | 1 |
| Grade Type | Marine |
| 31 | 1.87 |
| Ignition Type | Performance |
| 14 | 7.89 |
| 349 | Surface Mount |
| 30 | Yes |
| 44 | Male |
| 42 | 12 |
| 24 | 4 |
| Brand | MSD |
| Category | Ignition |
| Color | Blue |
| Current Draw | 1000 |
| Emission Code | 3 |
| Features | Start Retard |
| Primary Voltage | 535-550 |
| Product Type | Ignition |
| Secondary Voltage | 45,000 |
| Spark Series Duration | 20° Crankshaft Rotation |
| Sub Category | Control Modules |
| Voltage Required | 6-18 |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| Weight and Size | 2.5 lbs. 7.89L x 4.00W x 1.87H |
| Maximum RPM | 12,000 |
| Spark Energy (mJ per spark) | 135 w/ Blaster Coil / 150 w/ HVC Coil PN 8250 |
| 43 | Male Female |
| 342 | 1 |
| Grade Type | Marine |
| 31 | 1.87 |
| Ignition Type | Performance |
| 14 | 7.89 |
| 349 | Surface Mount |
| 30 | Yes |
| 44 | Male |
| 42 | 12 |
| 24 | 4 |
| Brand | MSD |
| Category | Ignition |
| Color | Blue |
| Current Draw | 1000 |
| Emission Code | 3 |
| Features | Start Retard |
| Primary Voltage | 535-550 |
| Product Type | Ignition |
| Secondary Voltage | 45,000 |
| Spark Series Duration | 20° Crankshaft Rotation |
| Sub Category | Control Modules |
| Voltage Required | 6-18 |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| Weight and Size | 2.5 lbs. 7.89L x 4.00W x 1.87H |
| Maximum RPM | 12,000 |
| Spark Energy (mJ per spark) | 135 w/ Blaster Coil / 150 w/ HVC Coil PN 8250 |
| Description_INV | Digital 6M-3L Marine Ignition |
| Description_ASC | UL Certified |
| Description_DES | MSD Digital 6M-3L Marine Ignition |
| Description_EXT | Marine certified, digital capacitive discharge ignition with built-in rev limiter and start retard. |
| Description_MKT | Three rotary dials and an LED display simplfy setting the cylinder select, start retard and rev limiter. Plug-in rev limiter chips and hard to read dials are a thing of the past. For diagnostic purposes, the LED display can also be set to a live tach mode on V8's and even display battery voltage with the turn of a knob. |
| Description_MKT | We've raised the bar and added an all-new UL listed marine ignition box to our lineup. The 6M-3L is a fully sealed unit with a single wiring connector makeing installation neat and easy. |
| Description_MKT | The 6M-3L is a capacitive discharge ignition that multi-sparks from idle to 3,000 RPM providing a clean idle and quick throttle response. Above 3,000, capacitive discharge sparks will run clean through 12,000 RPM . Boasting more features and higher spark energy than its predecessor, the 6M-3L is the performance upgrade your boat needs! |
| Description_FAB | Highly efficient, low current draw for extended battery life |
| Description_FAB | Works on 4, 6 and 8 cylinder engines |
| Description_FAB | Large, easy to read LED display |
| Description_FAB | Easy setup of features with three rotary dials on the face of the unit |
| Description_FAB | Records highest RPM the engine turned for last 20 minutes of run time |
| Description_FAB | LED display shows rev limit, highest RMP turned, cylinder select, start retard, battery voltage and can be set to tach mode |
| Description_FAB | Can be triggered by magnetic pickup, amplifier, and points inputs |
| Description_FAB | 0.8 Amps per 1,000 RPM |
| Description_FAB | Reverse polarity and overheat protection provide ultimate reliability |
| Description_FAB | Shift interrupt feature eases shifting |
| Description_FAB | Built-in Start Retard adjustable in 0⁰, 10⁰ or 20⁰ increments for quick, easy starts and extend starter life |
| Description_FAB | Sealed connector for clean wiring and trouble-free operation |
| Description_FAB | 535V w/ Blaster Coil / 550V w/ HVC Coil PN 8250 |
| Description_FAB | Fully potted housing to withstand demanding marine conditions |
| Description_FAB | Full delivery of spark energy and easy starting down to 6 volts battery supply |
| Description_FAB | MSD’s smoothest rev limiter yet, protecting parts and saving your engine |
