Holley EFI Holley EFI Bypass Fuel Pressure Regulator Kit 12-882KIT
Specifications:
| 40 | Yes |
| Brand | Holley EFI |
| Category | Air and Fuel Delivery |
| Color | Chrome |
| Emission Code | 5 |
| Fuel System | EFI |
| Fuel Type | Gasoline |
| 6112 | Yes |
| 10659 | Yes |
| 3390 | Performance |
| 4266 | Female |
| Inlet Port Diameter | 3/8 NPT IN |
| Inlet Size | 3/8 inch NPT |
| 596 | NPT |
| Material | Aluminium |
| 280 | 60 |
| 8932 | 15 |
| 92 | Yes |
| Mounting Hardware Included | Yes |
| 90 | Bolt On |
| 4267 | Female |
| Outlet Port Diameter | 3/8 NPT IN |
| Outlet Size | 3/8 inch NPT |
| 598 | NPT |
| part type | Fuel Pressure Regulator |
| 890 | 5 |
| Pressure Range | 15-60 PSI |
| Pressure Rating | 15-60 PS |
| Product Type | Fuel Pressure Regulator |
| 10660 | Yes |
| Return Size | 3/8 inch NPT |
| Style | Bypass |
| Sub Category | Carburetion |
| 865 | 1 |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| 40 | Yes |
| Brand | Holley EFI |
| Category | Air and Fuel Delivery |
| Color | Chrome |
| Emission Code | 5 |
| Fuel System | EFI |
| Fuel Type | Gasoline |
| 6112 | Yes |
| 10659 | Yes |
| 3390 | Performance |
| 4266 | Female |
| Inlet Port Diameter | 3/8 NPT IN |
| Inlet Size | 3/8 inch NPT |
| 596 | NPT |
| Material | Aluminium |
| 280 | 60 |
| 8932 | 15 |
| 92 | Yes |
| Mounting Hardware Included | Yes |
| 90 | Bolt On |
| 4267 | Female |
| Outlet Port Diameter | 3/8 NPT IN |
| Outlet Size | 3/8 inch NPT |
| 598 | NPT |
| part type | Fuel Pressure Regulator |
| 890 | 5 |
| Pressure Range | 15-60 PSI |
| Pressure Rating | 15-60 PS |
| Product Type | Fuel Pressure Regulator |
| 10660 | Yes |
| Return Size | 3/8 inch NPT |
| Style | Bypass |
| Sub Category | Carburetion |
| 865 | 1 |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| Description_INV | 12-882 REGULATOR KIT, GAUGE AND FITTINGS |
| Description_ASC | The mounting holes in the regulator are not threaded, the screws included are self-tapping for use in installation. If the pump is a high-pressure model, a pressure regulator must be installed in the line between the pump and the carburetor. An optional boost reference fitting is included with the regulator if needed for your application. |
| Description_DES | Holley EFI Bypass Fuel Pressure Regulator Kit |
| Description_EXT | Included gauge and fittings |

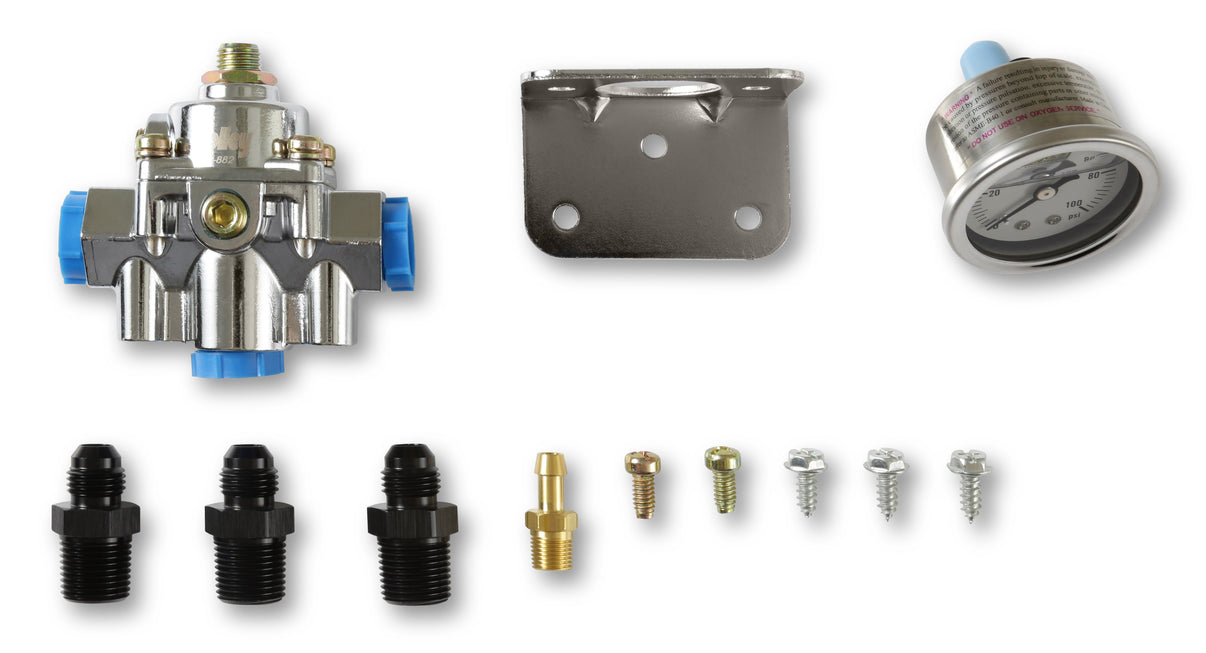

| Description_MKT | Holley EFI bypass fuel pressure regulator kits are part of a complete line of fuel system products from Holley. The included 12-882 EFI Fuel Regulator features a die cast aluminum body and a chrome finish for corrosion resistance and clean appearance. The regulator contains 3/8" NPT inlet/outlet ports, 3/8" NPT return port, 1/8" NPT gauge port, and a 1/8" NPT vacuum port for Boost Reference (1:1). In addition, (3) Mr. Gasket 3/8" NPT to -6 AN fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included in the kit. |
| Description_FAB | Die cast aluminum construction with chrome finish |
| Description_FAB | Adjustable from 15-60 PSI for precise fuel pressure adjustments |
| Description_FAB | 60 PSI preset pressure |
| Description_FAB | Used in return style systems with a line back to the fuel tank |
| Description_FAB | 3/8” NPT inlet, outlet, and return ports |
| Description_FAB | 1/8” NPT gauge port and Earl's fuel pressure gauge (100187ERL) |
| Description_FAB | 1/8" NPT boost reference (1:1) and barbed fitting |
| Description_FAB | Mr. Gasket 3/8” NPT to -6 AN fittings (481666-BL x3) |
| Description_FAB | Included mounting bracket |
| Description_INV | 12-882 REGULATOR KIT, GAUGE AND FITTINGS |
| Description_ASC | The mounting holes in the regulator are not threaded, the screws included are self-tapping for use in installation. If the pump is a high-pressure model, a pressure regulator must be installed in the line between the pump and the carburetor. An optional boost reference fitting is included with the regulator if needed for your application. |
| Description_DES | Holley EFI Bypass Fuel Pressure Regulator Kit |
| Description_EXT | Included gauge and fittings |
| Description_MKT | Holley EFI bypass fuel pressure regulator kits are part of a complete line of fuel system products from Holley. The included 12-882 EFI Fuel Regulator features a die cast aluminum body and a chrome finish for corrosion resistance and clean appearance. The regulator contains 3/8" NPT inlet/outlet ports, 3/8" NPT return port, 1/8" NPT gauge port, and a 1/8" NPT vacuum port for Boost Reference (1:1). In addition, (3) Mr. Gasket 3/8" NPT to -6 AN fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included in the kit. |
| Description_FAB | Die cast aluminum construction with chrome finish |
| Description_FAB | Adjustable from 15-60 PSI for precise fuel pressure adjustments |
| Description_FAB | 60 PSI preset pressure |
| Description_FAB | Used in return style systems with a line back to the fuel tank |
| Description_FAB | 3/8” NPT inlet, outlet, and return ports |
| Description_FAB | 1/8” NPT gauge port and Earl's fuel pressure gauge (100187ERL) |
| Description_FAB | 1/8" NPT boost reference (1:1) and barbed fitting |
| Description_FAB | Mr. Gasket 3/8” NPT to -6 AN fittings (481666-BL x3) |
| Description_FAB | Included mounting bracket |
