Holley EFI 7" Digital Dash, Compact & Fully Customizable! 553-109
Specifications:
| Brand | Holley EFI |
| Category | Body |
| Depth | 1" |
| Emission Code | 5 |
| 3390 | Performance |
| Height | 4.625" |
| 1814 | Yes |
| Maximum Gauge Diameter | Programmable |
| Minimum Gauge Diameter | Programmable |
| 30 | No |
| part type | Electronic Multi-Purpose Gauge |
| Product Type | Digital Dash |
| Screen Size | 7" Diagonal |
| Screen Type | Resistive touch screen |
| Sub Category | Instrument Panel |
| Warning | California Proposition 65 |
| Width | 7.5" |
| Description_INV | HOLLEY STAND ALONE DIGITAL DASH |
| Description_DES | Holley Standalone Digital Dash Kit |
| Description_EXT | 7" Digital Dash, Compact & Fully Customizable! |
| Description_MKT | Have you been looking for a dash solution for your vehicle, but just cannot find anything you like or that is cost-effective? No need to look any further as Holley has created a full-color touch screen dash that includes sensors for monitoring basic engine parameters as well as a GPS speedometer all in a cost-effective package! |
| Description_MKT | Holley's standalone digital dash has great features such as, a weather-resistant aluminum housing for durability, multiple gauge and indicator type selections, customizable screen and gauge layouts, and a virtual switch panel just to name a few. With the integrated 3 axis accelerometer and data-logging, the dash is ideal for anything from a JR dragster to Sportsman racing. It is also equally at home in a daily driver, or a show winning roadster. |
| Description_FAB | Compact, customizable dash for use in a variety of applications |
| Description_FAB | 7” low glare, high brightness, high contrast, full color touch screen for easy viewing even in full sun |
| Description_FAB | 800x480 resolution with auto brightness and dimming |
| Description_FAB | Operating voltage min 8V - 20V |
| Description_FAB | Includes USB GPS for Speedometer display with a magnetic base for a quick and clean install |
| Description_FAB | Weather resistant aluminum housing with flexible mounting options |
| Description_FAB | Completely customizable layouts, with multiple default configurations to get you running in no time! |
| Description_FAB | Multiple gauge & indicator types with limitless customization options |
| Description_FAB | Quickly toggle between multiple active screens (tune, warm-up, race, drive, etc.) |
| Description_FAB | Virtual Switch Panel (replaces the need for physical switches) *2 switched ground outputs to be added to trigger an external relay* |
| Description_FAB | Retains the same gauge customization flexibility as the EFI dash, but now allows use with any vehicle |
| Description_FAB | Powerful data log software provides in-depth analysis (10 samples/sec) of all inputs and outputs, including the integrated 3 axis accelerometer and USB GPS-no need for separate data logging boxes |
| Description_FAB | A variety of additional sensors are available for use with the dash, including fuel pressure, nitrous pressure, boost, with more to come! |
| Description_FAB | Pair with a Holley EFI LED Light Bar (PN 553-107) for a truly customizable solution! |
| Description_FAB | User definable warnings for any input |
| Description_FAB | Configurable progressive shift lights and light bar |
| Description_FAB | Expandable internal storage on micro SD card |
| Description_FAB | Free Software and Firmware upgrades, providing a future proof display solution |

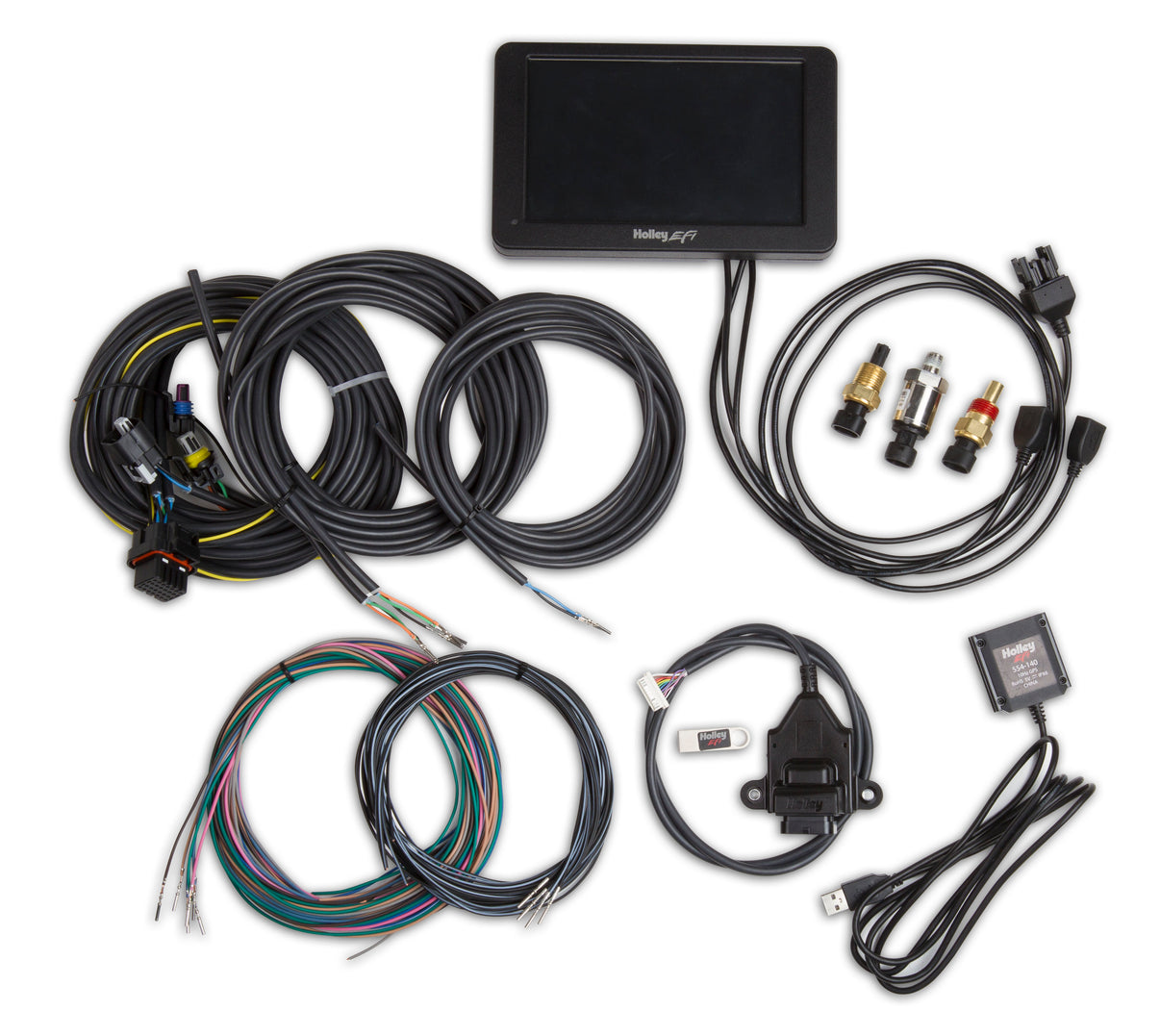

| Description_FAB | Included parts: Standalone digital dash kit with I/O adapter, USB memory stick, terminated vehicle harness, oil pressure sensor, CTS sensor, MAT sensor, USB GPS |
