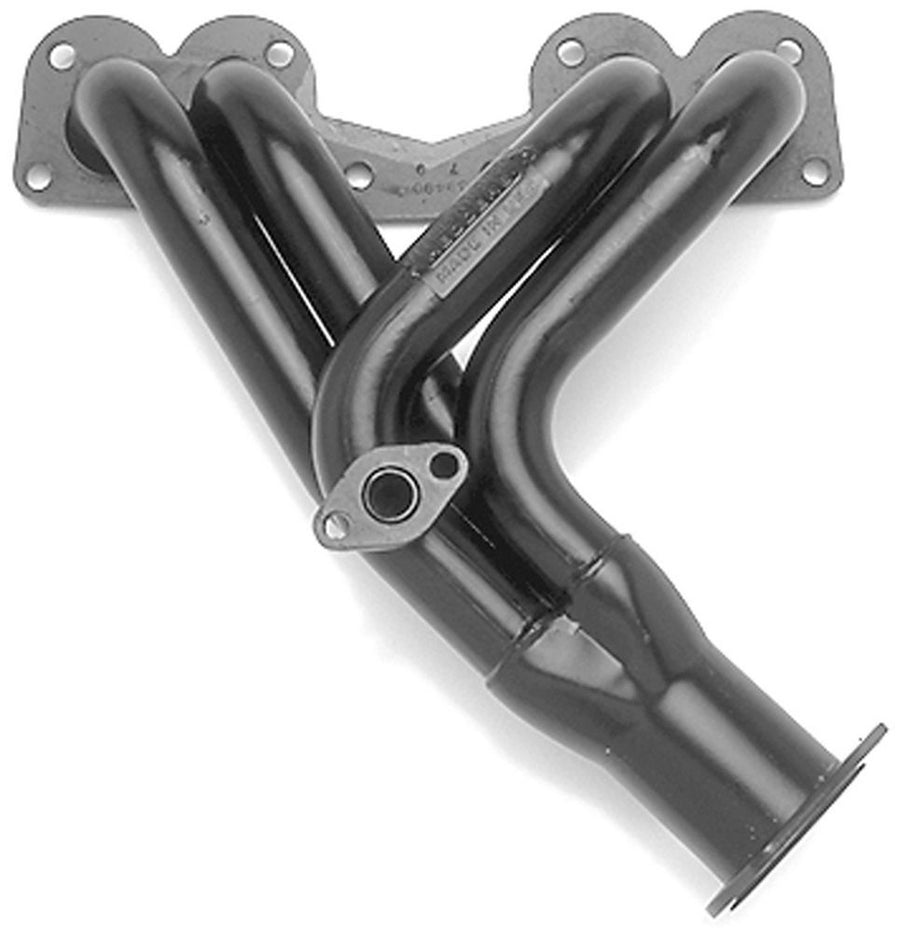

Hedman Hedders Uncoated Short-Tube Header for 85-88 Toyota 2WD/4WD Pickup Trucks w/ 22REC (EFI) 39490
Specifications:
| Description_DEF | [B@555dd12b |
| Description_DES | [B@7efa4f30 |
| Description_EXT | [B@a18cf0a |
| Description_FAB | [B@3b68e676 |
| Description_FAB | [B@87acb9 |
| Description_FAB | [B@2c28f056 |
| Description_FAB | [B@60841a46 |
| Description_FAB | [B@1c231b76 |
| Description_FAB | [B@217c8e2f |
| Description_INV | [B@4a3d6016 |
| Description_SHO | [B@a2b053d |
| Tube Diameter | 1-1/2 in. |
| Y-Pipe Included | No |
| Weld-Up | No |
| Tuned | No |
| Bolts/Studs Included | Yes |
| Catalytic Converter(s) Included | No |
| Crossover Pipe Included | No |
| Gasket Or Seal Included | Yes |
| Header Fasteners Included | Yes |
| Installation Hardware Included | Yes |
| Motor Mounts Included | No |
| Mounting Hardware Included | Yes |
| Reducers Included | Yes |
| Quantity | Sold individually. |
| with A.I.R. System | No |
| Primary Tube Gauge | 16g |
| Primary Tube Diameter (in) | 1.50 in. |
| Package Contents | Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Header Material | Mild Steel |
| Header Finish | Uncoated |
| Cylinder Head | Stock Profile Heads |
| Header Construction | MILD STEEL- Standard-Duty |
| Replacement Gasket | 27610 |
| Replacement Head Flange Gasket | 27610 |
| California Proposition 65 | WARNING: Cancer. For more info visit www.P65Warnings.ca.gov |
| with EGR | No |
| Variations | 39496, 39498 |
| Tube Style | Mid-Length |
| Air Conditioning | Yes |
| Automatic Transmission - Floor | Yes |
| Manual Transmission - Column | No |
| Manual Transmission - Floor | Yes |
| Tube Size | 1-1/2 in. |
| Flange Thickness | 0.375 in. |
| Exhaust System Dia | 2 in. |
| Reducer Outlet Size | 2 in. |
| Collector Attachment | 2-1/2 in. |
| Collector Diameter | 2-1/2 in. |
| Collector Size | 2-1/2 in. |
| Collector Style | BALL and SOCKET Style (Gasketless) |
| Contents | headers, header gaskets, Reducers (exhaust adapters), header and collector bolts |
| Header Style | Mid-Length Tube |
| E.O. # | No |
| Emissions Notes | Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only. |
| Flange Style | Standard |
| Engine | Toyota 22RE (F.I.) |
| Finish | Uncoated |
| Finish Type | UNCOATED Mild Steel! Shipped with Temporary Paint. |
| Power Steering | Yes |
| Cylinder Head Port Shape | Round Port Headers. NOT for Pear-shaped port heads! |
| Port Shape | Round |
| Material | Mild Steel |
| Tube Design | Standard |
| Tube Length | Mid-Length Tubes |
| Tube Material Thickness | 16g |
| Title | HEDMAN HEDDERS STANDARD UNCOATED HEADERS; 1-1/2 IN. TUBE DIA.; 2-1/2 IN. COLL.; SHORTY DESIGN |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1985 | Toyota | Pickup | BASE | |
| 1986 | Toyota | Pickup | BASE | |
| 1987 | Toyota | Pickup | BASE | |
| 1988 | Toyota | Pickup | BASE |
