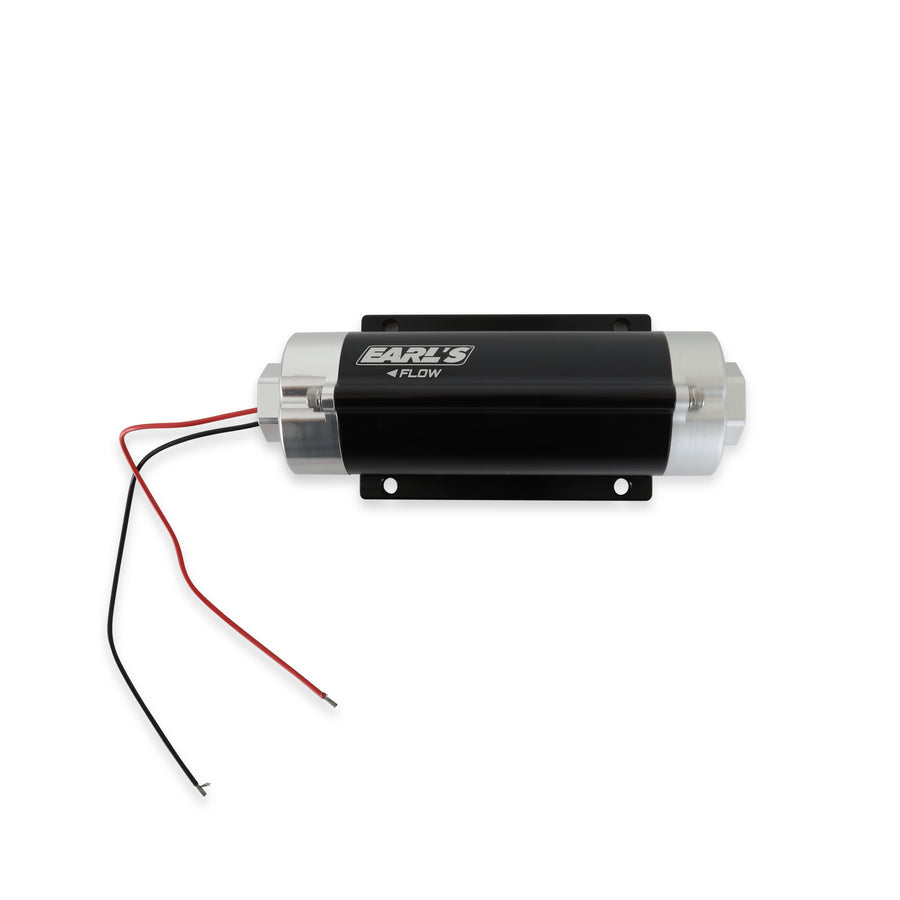

Earl's Performance Earl's 65 GPH HP In-line Fuel Pump 1200600ERL
Specifications:
| Description_ABR | 65 GPH HP |
| Description_SHO | 65 GPH HP In-line |
| Description_INV | EARLS FUEL PUMP, HP LOW FLOW ELECTRIC |
| Description_ASC | These pumps do not have an internal bypass. A bypass style regulator and return line are required. NOT FOR USE WITH METHANOL! Will not work with E-85 or Diesel This pump is not designed to use a standard conical seat style union in the inlet or outlet of the pump.Part # AT981508ERL. Use of this style fitting will block flow and WILL lead to poor performance and pump failure. The ONLY correct fitting to use is a contoured port fitting with an O-ring seal such as :Part # AT985081ERL. |
| Description_DES | Earl's 65 GPH HP In-line Fuel Pump |
| Description_EXT | Street/Strip Carb or EFI ApplicationsSupports up to 600 EFI or 730 Carb HPCompatible with Pump or Race gas |
| Description_MKT | Earl's™ In-Line Billet Fuel Pumps are designed to be the perfect companion to your carbureted or fuel injected race car, off-road truck or any engine needing fuel! The HP™ fuel pumps feature OEM gerotor technology which yields lightweight, quiet operation and 100,000+ mile durability in a cost effective, attractive package. The 1200600ERL features improved hot fuel handling capabilities and was designed to greatly reduce the negative effects of heated fuel now common with many of today's pump gas blends. It is compatible for use with pump gas or race gas. If you are using E-85 or diesel, no need to worry, Earl's has still got you covered with the 1200890ERL fuel pump. HP fuel pumps work well on the street or in racing applications with up to 18.5 volt charging systems and 80 psi |
| Description_FAB | Billet aluminum construction for durability & good looks |
| Description_FAB | -10 an O-ring inlet and -8 an O-ring outlet for high flow and superior sealing |
| Description_FAB | Excellent for use with carbureted or EFI applications |
| Description_FAB | Fully submersible in-tank for custom applications, space savings and less plumbing |
| Description_FAB | Compatible with 12v to 18.5v systems for street or race use |
| Description_FAB | Compact (7.5 long x 3 wide x 2.75 tall) for easy installation on frame rails or other tight areas |
| Description_FAB | Proven durability beyond 3,000 hours in gasoline |
| Description_FAB | Weighs only 3.1 lbs. |
| Description_FAB | 10 AMP maximum amp draw |
| Description_FAB | Not designed for use on aircraft of any type. |
| Description_ABR | 65 GPH HP |
| Description_SHO | 65 GPH HP In-line |
| Description_INV | EARLS FUEL PUMP, HP LOW FLOW ELECTRIC |
| Description_ASC | These pumps do not have an internal bypass. A bypass style regulator and return line are required. NOT FOR USE WITH METHANOL! Will not work with E-85 or Diesel This pump is not designed to use a standard conical seat style union in the inlet or outlet of the pump.Part # AT981508ERL. Use of this style fitting will block flow and WILL lead to poor performance and pump failure. The ONLY correct fitting to use is a contoured port fitting with an O-ring seal such as :Part # AT985081ERL. |
| Description_DES | Earl's 65 GPH HP In-line Fuel Pump |
| Description_EXT | Street/Strip Carb or EFI ApplicationsSupports up to 600 EFI or 730 Carb HPCompatible with Pump or Race gas |
| Description_MKT | Earl's™ In-Line Billet Fuel Pumps are designed to be the perfect companion to your carbureted or fuel injected race car, off-road truck or any engine needing fuel! The HP™ fuel pumps feature OEM gerotor technology which yields lightweight, quiet operation and 100,000+ mile durability in a cost effective, attractive package. The 1200600ERL features improved hot fuel handling capabilities and was designed to greatly reduce the negative effects of heated fuel now common with many of today's pump gas blends. It is compatible for use with pump gas or race gas. If you are using E-85 or diesel, no need to worry, Earl's has still got you covered with the 1200890ERL fuel pump. HP fuel pumps work well on the street or in racing applications with up to 18.5 volt charging systems and 80 psi |
| Description_FAB | Billet aluminum construction for durability & good looks |
| Description_FAB | -10 an O-ring inlet and -8 an O-ring outlet for high flow and superior sealing |
| Description_FAB | Excellent for use with carbureted or EFI applications |
| Description_FAB | Fully submersible in-tank for custom applications, space savings and less plumbing |
| Description_FAB | Compatible with 12v to 18.5v systems for street or race use |
| Description_FAB | Compact (7.5 long x 3 wide x 2.75 tall) for easy installation on frame rails or other tight areas |
| Description_FAB | Proven durability beyond 3,000 hours in gasoline |
| Description_FAB | Weighs only 3.1 lbs. |
| Description_FAB | 10 AMP maximum amp draw |
| Description_FAB | Not designed for use on aircraft of any type. |
| 1153 | No |
| 3390 | Performance |
| 353 | No |
| 30 | No |
| 518 | No |
| 488 | No |
| Application | Universal |
| Brand | Earl's |
| Category | Air and Fuel Delivery |
| Emission Code | 5 |
| Forced Induction HP@43PSI | 450 |
| Forced Induction HP@60PSI | 380 |
| Forced Induction HP@8PSI | 560 |
| Fuel System | Carbureted |
| Fuel System | EFI |
| Fuel Type | Gasoline |
| GPH@43PSI | 48 |
| GPH@60PSI | 41 |
| GPH@8PSI | 65 |
| Inlet Size | 10 AN O-Ring - 7/8-14 SAE |
| LPH@43PSI | 181 |
| LPH@60PSI | 155 |
| LPH@8PSI | 230 |
| Material | Aluminum |
| Outlet Size | 8 AN O-Ring - 3/4-16 SAE |
| Product Type | Fuel Pump |
| Pump Body Color | Black Anodized |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
