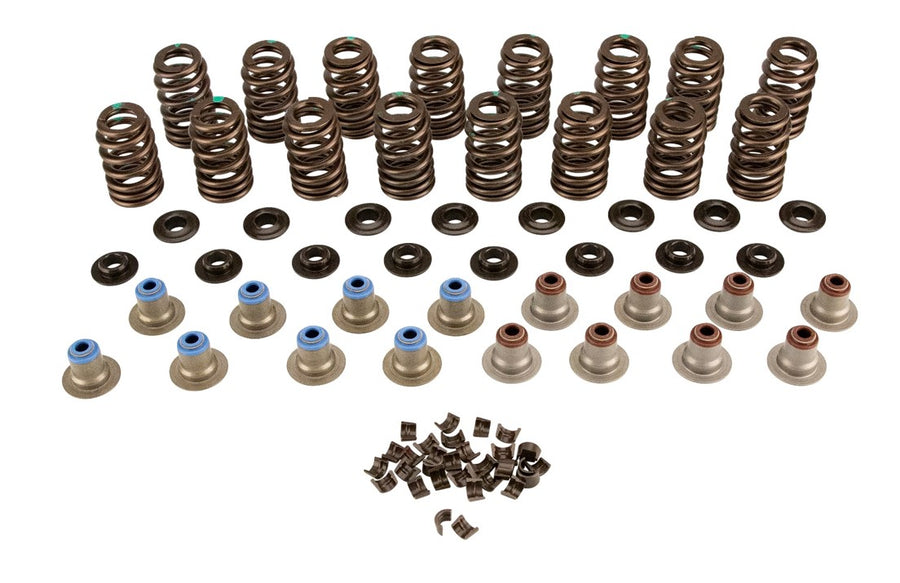

COMP Cams Engine Valve Spring Kit 26906CS-KIT
Specifications:
| Title | LS6+ Beehive Valve Spring Kit w/ Chromemoly Steel Retainers; 0.580" Max Lift |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Compatible Shims | 4753 |
| Spring Top Outside Diameter | 1.077 |
| Spring Top Inside Diameter | 0.655 |
| Spring Bottom Outside Diameter | 1.282 |
| Spring Bottom Inside Diameter | 0.860 |
| Locator Thickness | 0.0600 |
| Locator Outer Diameter | 1.300 |
| Locator Inner Diameter | 0.510 |
| Valve Seal Outer Diameter | 0.600 |
| Includes Valve Seals | Yes |
| Valve Seal Type | Steel Jacketed Viton |
| Includes Spring Seats | Yes |
| Includes Locks | Yes |
| Retainer Material | Chromemoly Steel |
| Includes Retainers | Yes |
| Max Lift | 0.580 |
| Valve Spring Type | Beehive |
| Seat Pressure | 92 |
| Seat Height | 1.800 |
| Coil Bind Height | 1.181 |
| Engine Fitment | GM LS Cathedral and Rectangle Port Applications |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | Yes |
| C.A.R.B. Exemption Reason | No impact on pollution output of vehicle. |
| C.A.R.B. E.O. Number | N/A |
| Description_SHO | LS6+CStlKit |
| Description_INV | LS6+SpringKitChromemolyStlRetainers |
| Description_ASC | Available with Tool Steel Retainers under 26906TS-KIT |
| Description_KSW | GM |
| Description_KSW | 4.8 |
| Description_KSW | 5.3 |
| Description_KSW | 5.7 |
| Description_KSW | 6.0 |
| Description_KSW | 6.2 |
| Description_KSW | 7.0 |
| Description_KSW | LS1 |
| Description_KSW | LS2 |
| Description_KSW | LS3 |
| Description_KSW | LS4 |
| Description_KSW | LS6 |
| Description_KSW | LS7 |
| Description_KSW | LSA |
| Description_KSW | 350 |
| Description_KSW | SBC |
| Description_KSW | Chevelle |
| Description_KSW | Yukon |
| Description_KSW | L92 |
| Description_KSW | LM7 |
| Description_KSW | 325 |
| Description_KSW | 383 |
| Description_KSW | LS Swap |
| Description_KSW | Silverado |
| Description_KSW | Camaro |
| Description_KSW | LS9 |
| Description_KSW | GMC |
| Description_KSW | Trailblazer |
| Description_KSW | Corvette |
| Description_KSW | GM LS |
| Description_KSW | GEN III |
| Description_KSW | GEN 3 |
| Description_KSW | GEN IV |
| Description_KSW | GEN 4 |
| Description_KSW | DOD |
| Description_KSW | AFM |
| Description_KSW | VVT |
| Description_KSW | BTR |
| Description_KSW | Texas Speed |
| Description_DES | LS6+ Beehive Valve Spring Kit w/ Chromemoly Steel Retainers |
| Description_DES | 0.580" Max Lift |
| Description_APS | Gm LS engines including truck engines |
| Description_APS | excluding LS7. |
| Description_EXT | Including our LS6+ Beehive Valve Springs |
| Description_EXT | hardened spring seats |
| Description_EXT | viton valve seals and machined steel locks and chromemoly steel retainers |
| Description_EXT | this kit is a great way to freshen up LS heads. Allows for a maximum of 0.580" valve lift. |
| Description_DEF | Engine Valve Spring Kit |
