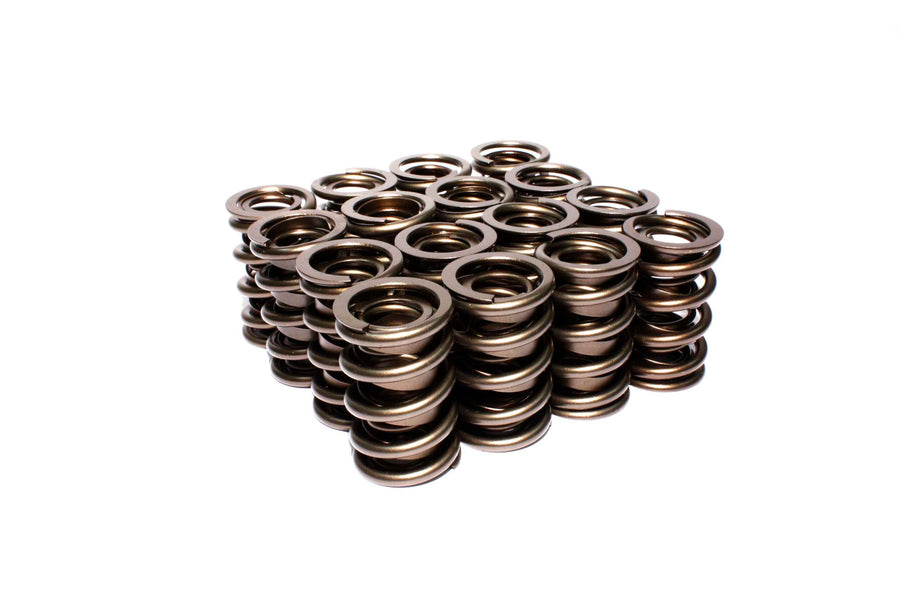

COMP Cams Engine Valve Spring Kit 26097-16
Specifications:
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Number of Springs | 16 |
| Spring Rate(lbs/in) | 502 |
| Load at Installed Height (lbs) | 195 |
| Installed Height | 2.000 |
| Outer Spring Outside Diameter | 1.551 |
| Outer Spring Inside Diameter | 1.117 |
| Inner Spring Inside Diameter | 0.721 |
| Maximum Coil Bind Height (in) | 1.135 |
| Damper | Yes |
| Compatible Spring Cup (O.D. Locator) | 4700 Spring Seats for OD Locator |
| Compatible Shims | 4757 Spring Shims |
| Compatible Retainer | 732 Standard Titanium Retainers for 10° Locks and All Valves |
| Compatible .630" Guide Diameter Spring Seats | 4782 Spring Seats for .630 Guide |
| Compatible .570" Guide Diameter Spring Seats | 4781 Spring Seats for .570 Guide |
| C.A.R.B. Exempt for On-Road Vehicles? | Yes |
| C.A.R.B. Exemption Reason | No impact on pollution output of vehicle. |
| C.A.R.B. E.O. Number | N/A |
| Open Height (in) | 1.200 |
| Load at Open Height (lbs) | 597 |
| Recommended Max Lift (in) | .800 |
| Description_DES | 500 LBS/IN |
| Description_APS | Solid Roller Valve Trains |
| Description_EXT | Designed for endurance-race-oriented solid roller cams |
| Description_EXT | 26097 fits applications near a 2.000" installed height and a spring pocket of 1.549". It has a 500 lbs/in rate and over 600 lbs open load for increased RPM and improved dynamics. |
| Description_MKT | COMP Cams' 26097 dual valve springs are a product of innovative design and superior craftsmanship. Engineered with state-of-the-art techniques and premium wire processing |
| Description_MKT | they redefine reliability and consistency in the performance automotive aftermarket. This spring utilizes a progressive pitch coiling process that greatly improves durability and ensures safe spring life beyond traditional extreme-duty applications. The 26097 is purposed for endurance solid roller applications |
| Description_MKT | with up to .800” lift at an installed height of 2.000”. They fit cylinder heads with at least a 1.549" spring pocket. Boasting an open load of over 600 pounds |
| Description_MKT | these valve springs are designed for endurance applications and optimized with newer lobe profiles in mind to achieve higher RPM and higher lift. It is similar to the new 26953 but includes more seat load and installed height for applications where the 26953 is too short. Whether you're seeking improved dynamics |
| Description_MKT | enhanced valve control |
| Description_MKT | or unmatched reliability |
| Description_MKT | we have the valve springs to deliver the perfect solution. Elevate your engine's dependability and confidence on the track with COMP Cams valve springs. |
| Description_DEF | Engine Valve Spring Kit |
| Description_SHO | Engine Valve Spring |
| Description_INV | 26097-16 DUAL SPRING W/ DAMPER, |
| Description_KSW | Valve Springs |
| Description_KSW | Spring Kit |
| Description_KSW | Max Lift |
| Description_KSW | Valve Lift |
| Description_KSW | Conical Springs |
| Description_KSW | Single Valve Springs |
| Description_KSW | Dual Valve Springs |
| Description_DES | DUAL SPRING W/ DAMPER |
| Description_DES | 1.549 OD |
| Description_DES | 2.000 IH |
| Description_DES | .800 LIFT |
