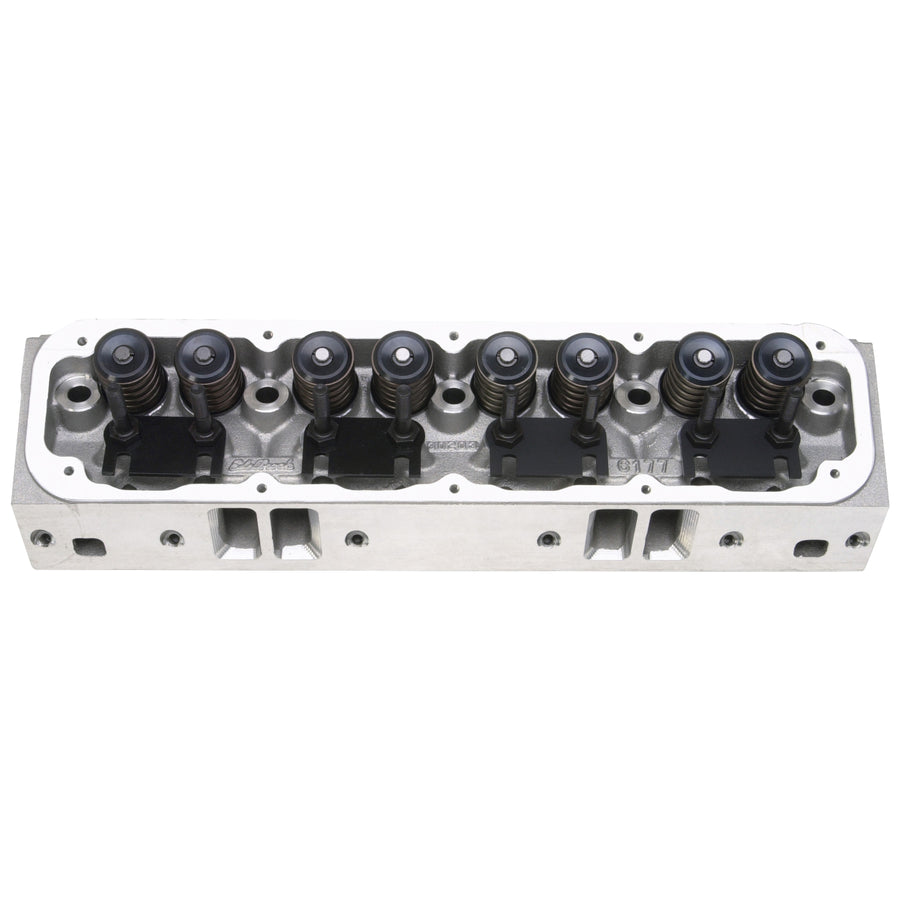

Edelbrock Engine Cylinder Head 61779
Specifications:
| Rocker Arm Stud Diameter | 0.375 |
| Guide Plates Included | Yes |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Horsepower | 350-500 |
| Exhaust Valve Diameter | 1.60 |
| EGR Port | No |
| Grade Type | Performance |
| Deck Thickness | 0.625 |
| CNC Ported | No |
| Valve Stem Diameter | 0.3438 |
| Intake Valve Diameter | 2.02 |
| Material | Aluminum |
| Intake Runner Volume | 176 |
| Series | Performer RPM |
| Family | Performer RPM |
| Seat Material | Ductile Iron |
| Valve Angle | 18 |
| Head Casting Number | N/A |
| Guide Material | Manganese Bronze |
| Construction Type | Complete |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Valve Springs Included | Yes |
| Exhaust Port Location | Standard |
| Camshaft Type | Flat Tappet |
| Combustion Chamber Volume | 58 |
| Valve Spring Diameter | 1.46 |
| Valve Spring Maximum Lift | 0.580 |
| Exhaust Runner Volume | 75 |
| Quantity | Sold Individually |
| Retainer Included | Yes |
| Valve Included | Yes |
| Guide Plate Material | Hardened Steel |
| Description_ABR | Cyl. Head |
| Description_INV | Edelbrock SB Chrysler Cylinder Head |
| Description_LAB | RPM Small-Block Chrysler Magnum Cylinder Head Hydraulic Flat Tappet |
| Description_ASM | Chrysler:Small-Block:273 (4.5L)/318 (5.2L)/340 (5.6L)/360 (5.9L) |
| Description_EXT | Edelbrock part #61779 Performer RPM cylinder heads are designed for use with 1992 & later 5.2L (318 c.i.d.) and 1993 & later 5.9L (360 c.i.d.) Chrysler Magnum style V8 applications. |
| Description_MKT | The Edelbrock #61779 Performer RPM cylinder head is designed for use with 1992 & later 5.2L (318 c.i.d.) and 1993 & later 5.9L (360 c.i.d.) Chrysler Magnum style V8 applications. The Edelbrock #61779 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only. |
| Description_TRA | EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC FLAT TAPPET CAMSHAFT APPLICATIONS |
| Description_TRA | Match with the Edelbrock RPM Air-Gap Magnum manifold #7577 |
| Description_TRA | Cylinder heads exhaust flanges in stock location to allow use of stock exhaust if desired |
| Description_TRA | Accepts small-block Chevy adjustable 1.6 ratio rockers and classic valve covers #4177 and #41773 |
| Description_TRA | Requires hardened pushrods, #9638. |
| Description_TRA | Match with Edelbrock head gasket sets. |
| Description_TRA | Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Description_TRA | Deck thickness: 5/8" |
| Description_TRA | Rocker stud diameter: 3/8" |
| Description_TRA | Pushrod diameter: 5/16" (width of slot in guide plate). |
| Description_DEF | Engine Cylinder Head |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1992 | Dodge | B150 | ||
| 1993 | Dodge | B150 | ||
| 1994 | Dodge | B150 | ||
| 1995 | Dodge | B1500 | ||
| 1996 | Dodge | B1500 | ||
| 1997 | Dodge | B1500 | ||
| 1998 | Dodge | B1500 | ||
| 1998 | Dodge | B1500 | ||
| 1992 | Dodge | B250 | ||
| 1992 | Dodge | B250 | ||
| 1993 | Dodge | B250 | ||
| 1993 | Dodge | B250 | ||
| 1994 | Dodge | B250 | ||
| 1994 | Dodge | B250 | ||
| 1995 | Dodge | B2500 | ||
| 1995 | Dodge | B2500 | ||
| 1996 | Dodge | B2500 | ||
| 1996 | Dodge | B2500 | ||
| 1997 | Dodge | B2500 | ||
| 1997 | Dodge | B2500 | ||
| 1998 | Dodge | B2500 | ||
| 1998 | Dodge | B2500 | ||
| 1992 | Dodge | B350 | ||
| 1992 | Dodge | B350 | ||
| 1993 | Dodge | B350 | ||
| 1993 | Dodge | B350 | ||
| 1994 | Dodge | B350 | ||
| 1994 | Dodge | B350 | ||
| 1995 | Dodge | B3500 | ||
| 1995 | Dodge | B3500 | ||
| 1996 | Dodge | B3500 | ||
| 1996 | Dodge | B3500 | ||
| 1997 | Dodge | B3500 | ||
| 1997 | Dodge | B3500 | ||
| 1998 | Dodge | B3500 | ||
| 1998 | Dodge | B3500 | ||
| 1992 | Dodge | D150 | ||
| 1993 | Dodge | D150 | ||
| 1993 | Dodge | D150 | ||
| 1992 | Dodge | D250 | ||
| 1992 | Dodge | D250 | ||
| 1993 | Dodge | D250 | ||
| 1993 | Dodge | D250 | ||
| 1992 | Dodge | D350 | ||
| 1993 | Dodge | D350 | ||
| 1992 | Dodge | Dakota | ||
| 1993 | Dodge | Dakota | ||
| 1994 | Dodge | Dakota | ||
| 1995 | Dodge | Dakota | ||
| 1996 | Dodge | Dakota | ||
| 1997 | Dodge | Dakota | ||
| 1998 | Dodge | Dakota | ||
| 1998 | Dodge | Dakota | ||
| 1999 | Dodge | Dakota | ||
| 1999 | Dodge | Dakota | ||
| 2000 | Dodge | Dakota | ||
| 2001 | Dodge | Dakota | ||
| 2002 | Dodge | Dakota | ||
| 2003 | Dodge | Dakota | ||
| 1998 | Dodge | Durango | ||
| 1998 | Dodge | Durango | ||
| 1999 | Dodge | Durango | ||
| 1999 | Dodge | Durango | ||
| 2000 | Dodge | Durango | ||
| 2000 | Dodge | Durango | ||
| 2001 | Dodge | Durango | ||
| 2002 | Dodge | Durango | ||
| 2003 | Dodge | Durango | ||
| 1994 | Dodge | Ram 1500 | ||
| 1994 | Dodge | Ram 1500 | ||
| 1995 | Dodge | Ram 1500 | ||
| 1995 | Dodge | Ram 1500 | ||
| 1996 | Dodge | Ram 1500 | ||
| 1996 | Dodge | Ram 1500 | ||
| 1997 | Dodge | Ram 1500 | ||
| 1997 | Dodge | Ram 1500 | ||
| 1998 | Dodge | Ram 1500 | ||
| 1998 | Dodge | Ram 1500 | ||
| 1999 | Dodge | Ram 1500 | ||
| 1999 | Dodge | Ram 1500 | ||
| 2000 | Dodge | Ram 1500 | ||
| 2000 | Dodge | Ram 1500 | ||
| 2001 | Dodge | Ram 1500 | ||
| 2001 | Dodge | Ram 1500 | ||
| 2002 | Dodge | Ram 1500 | ||
| 2003 | Dodge | Ram 1500 | ||
| 1999 | Dodge | Ram 1500 Van | ||
| 1999 | Dodge | Ram 1500 Van | ||
| 2000 | Dodge | Ram 1500 Van | ||
| 2000 | Dodge | Ram 1500 Van | ||
| 2001 | Dodge | Ram 1500 Van | ||
| 2001 | Dodge | Ram 1500 Van | ||
| 2002 | Dodge | Ram 1500 Van | ||
| 2002 | Dodge | Ram 1500 Van | ||
| 2003 | Dodge | Ram 1500 Van | ||
| 2003 | Dodge | Ram 1500 Van | ||
| 1994 | Dodge | Ram 2500 | ||
| 1994 | Dodge | Ram 2500 | ||
| 1995 | Dodge | Ram 2500 | ||
| 1995 | Dodge | Ram 2500 | ||
| 1996 | Dodge | Ram 2500 | ||
| 1996 | Dodge | Ram 2500 | ||
| 1997 | Dodge | Ram 2500 | ||
| 1998 | Dodge | Ram 2500 | ||
| 1999 | Dodge | Ram 2500 | ||
| 2000 | Dodge | Ram 2500 | ||
| 2001 | Dodge | Ram 2500 | ||
| 2002 | Dodge | Ram 2500 | ||
| 1999 | Dodge | Ram 2500 Van | ||
| 1999 | Dodge | Ram 2500 Van | ||
| 2000 | Dodge | Ram 2500 Van | ||
| 2000 | Dodge | Ram 2500 Van | ||
| 2001 | Dodge | Ram 2500 Van | ||
| 2001 | Dodge | Ram 2500 Van | ||
| 2002 | Dodge | Ram 2500 Van | ||
| 2002 | Dodge | Ram 2500 Van | ||
| 2003 | Dodge | Ram 2500 Van | ||
| 2003 | Dodge | Ram 2500 Van | ||
| 1994 | Dodge | Ram 3500 | ||
| 1995 | Dodge | Ram 3500 | ||
| 1996 | Dodge | Ram 3500 | ||
| 1997 | Dodge | Ram 3500 | ||
| 1998 | Dodge | Ram 3500 | ||
| 1999 | Dodge | Ram 3500 | ||
| 2000 | Dodge | Ram 3500 | ||
| 2001 | Dodge | Ram 3500 | ||
| 2002 | Dodge | Ram 3500 | ||
| 1999 | Dodge | Ram 3500 Van | ||
| 1999 | Dodge | Ram 3500 Van | ||
| 2000 | Dodge | Ram 3500 Van | ||
| 2000 | Dodge | Ram 3500 Van | ||
| 2001 | Dodge | Ram 3500 Van | ||
| 2001 | Dodge | Ram 3500 Van | ||
| 2002 | Dodge | Ram 3500 Van | ||
| 2002 | Dodge | Ram 3500 Van | ||
| 2003 | Dodge | Ram 3500 Van | ||
| 2003 | Dodge | Ram 3500 Van | ||
| 1992 | Dodge | Ramcharger | ||
| 1992 | Dodge | Ramcharger | ||
| 1993 | Dodge | Ramcharger | ||
| 1993 | Dodge | Ramcharger | ||
| 1992 | Dodge | W150 | ||
| 1993 | Dodge | W150 | ||
| 1993 | Dodge | W150 | ||
| 1992 | Dodge | W250 | ||
| 1992 | Dodge | W250 | ||
| 1993 | Dodge | W250 | ||
| 1993 | Dodge | W250 | ||
| 1992 | Dodge | W350 | ||
| 1993 | Dodge | W350 |
