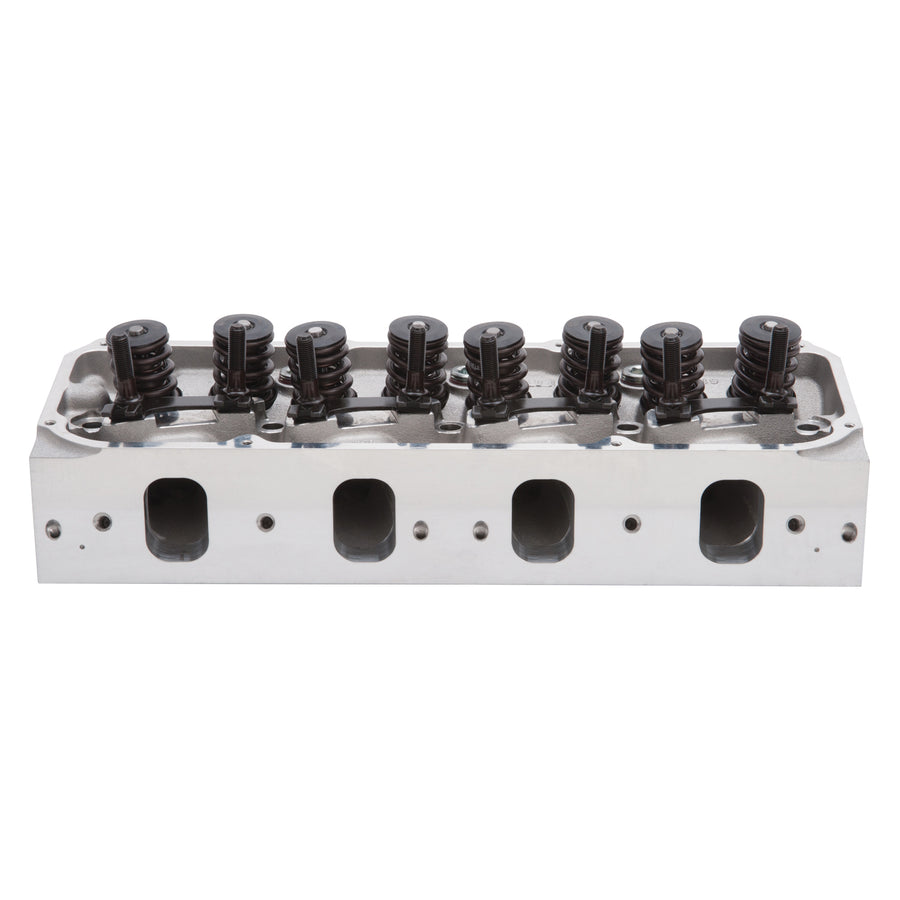

Edelbrock Engine Cylinder Head 61625
Specifications:
| Valve Stem Diameter | 0.3438 |
| Seat Material | Ductile Iron |
| Push Rod Diameter | (Suggested) 0.3125 |
| Deck Thickness | 0.625 |
| Guide Plates Included | Yes |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Camshaft Type | Hydraulic Roller |
| Horsepower | 350-500 |
| Exhaust Valve Diameter | 1.60 |
| EGR Port | No |
| Valve Springs Included | Yes |
| Material | Aluminum |
| Rocker Arm Stud Diameter | 0.4375 |
| Exhaust Runner Volume | 90 |
| Grade Type | Performance |
| Intake Valve Diameter | 2.05 |
| Exhaust Port Location | Standard |
| Intake Runner Volume | 190 |
| Valve Spring Diameter | 1.55 |
| Seat Angle | Exhaust 45 deg/Intake 45 |
| Series | Performer RPM |
| Family | Performer RPM |
| Head Casting Number | N/A |
| Guide Material | Manganese Bronze |
| Quantity | Sold Individually |
| Retainer Included | Yes |
| Valve Included | Yes |
| Combustion Chamber Volume | 60 |
| Guide Plate Material | Hardened Steel |
| CNC Ported | No |
| Construction Type | Complete |
| Valve Spring Maximum Lift | 0.580 |
| Valve Angle | 9.5 |
| Description_ABR | Cyl. Head |
| Description_INV | Edelbrock SBF Cleveland Cylinder Head |
| Description_LAB | RPM Small-Block Ford 351 Cleveland Cylinder Head Hydraulic Roller Cam |
| Description_ASM | Ford:Small-Block Cleveland:351 (5.8L) |
| Description_EXT | Edelbrock part #61625 Performer RPM cylinder heads are designed for use with 351C, 351M & 400M Ford engine applications. |
| Description_MKT | The Edelbrock #61625 Performer RPM cylinder head is designed for use with 351C, 351M & 400M Ford engine applications. The Edelbrock #61625 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only. |
| Description_TRA | Match with Edelbrock head gasket sets. |
| Description_TRA | Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. |
| Description_TRA | Recommended spark plugs 14mm x 3/4" reach with flat gasket seat (Champion RC12YC). |
| Description_TRA | Deck thickness: 5/8" |
| Description_TRA | Rocker stud diameter: 7/16" |
| Description_TRA | Pushrod diameter: 5/16" (width of slot in guide plate). |
| Description_TRA | Valve sizes are recommended, not maximum. |
| Description_TRA | EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC ROLLER CAMSHAFT APPLICATIONS |
| Description_TRA | Very streetable 190cc intake runners |
| Description_TRA | 2.05" intake and 1.60" exhaust valves |
| Description_TRA | "Compact charge" kidney shape combustion chamber design |
| Description_TRA | Intake and exhaust ports based on 2V design |
| Description_TRA | Optimized spark plug location provides improved header clearance |
| Description_TRA | Match with Edelbrock RPM Air-Gap manifold #7564 |
| Description_DEF | Engine Cylinder Head |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1971 | DeTomaso | Pantera | ||
| 1972 | DeTomaso | Pantera | ||
| 1973 | DeTomaso | Pantera | ||
| 1974 | DeTomaso | Pantera | ||
| 1981 | DeTomaso | Pantera | ||
| 1982 | DeTomaso | Pantera | ||
| 1983 | DeTomaso | Pantera | ||
| 1984 | DeTomaso | Pantera | ||
| 1985 | DeTomaso | Pantera | ||
| 1986 | DeTomaso | Pantera | ||
| 1969 | Ford | Country Sedan | ||
| 1970 | Ford | Country Sedan | ||
| 1971 | Ford | Country Sedan | ||
| 1972 | Ford | Country Sedan | ||
| 1973 | Ford | Country Sedan | ||
| 1974 | Ford | Country Sedan | ||
| 1969 | Ford | Country Squire | ||
| 1970 | Ford | Country Squire | ||
| 1971 | Ford | Country Squire | ||
| 1972 | Ford | Country Squire | ||
| 1973 | Ford | Country Squire | ||
| 1974 | Ford | Country Squire | ||
| 1969 | Ford | Custom | ||
| 1970 | Ford | Custom | ||
| 1971 | Ford | Custom | ||
| 1972 | Ford | Custom | ||
| 1969 | Ford | Custom 500 | ||
| 1970 | Ford | Custom 500 | ||
| 1971 | Ford | Custom 500 | ||
| 1972 | Ford | Custom 500 | ||
| 1973 | Ford | Custom 500 | ||
| 1974 | Ford | Custom 500 | ||
| 1969 | Ford | Fairlane | ||
| 1970 | Ford | Fairlane | ||
| 1970 | Ford | Falcon | ||
| 1969 | Ford | Galaxie 500 | ||
| 1970 | Ford | Galaxie 500 | ||
| 1971 | Ford | Galaxie 500 | ||
| 1972 | Ford | Galaxie 500 | ||
| 1973 | Ford | Galaxie 500 | ||
| 1974 | Ford | Galaxie 500 | ||
| 1972 | Ford | Gran Torino | ||
| 1973 | Ford | Gran Torino | ||
| 1974 | Ford | Gran Torino | ||
| 1969 | Ford | LTD | ||
| 1970 | Ford | LTD | ||
| 1971 | Ford | LTD | ||
| 1972 | Ford | LTD | ||
| 1973 | Ford | LTD | ||
| 1974 | Ford | LTD | ||
| 1969 | Ford | Mustang | ||
| 1970 | Ford | Mustang | ||
| 1971 | Ford | Mustang | ||
| 1972 | Ford | Mustang | ||
| 1973 | Ford | Mustang | ||
| 1969 | Ford | Ranch Wagon | ||
| 1970 | Ford | Ranch Wagon | ||
| 1971 | Ford | Ranch Wagon | ||
| 1972 | Ford | Ranch Wagon | ||
| 1973 | Ford | Ranch Wagon | ||
| 1974 | Ford | Ranch Wagon | ||
| 1969 | Ford | Ranchero | ||
| 1970 | Ford | Ranchero | ||
| 1971 | Ford | Ranchero | ||
| 1972 | Ford | Ranchero | ||
| 1973 | Ford | Ranchero | ||
| 1974 | Ford | Ranchero | ||
| 1970 | Ford | Torino | ||
| 1971 | Ford | Torino | ||
| 1972 | Ford | Torino | ||
| 1973 | Ford | Torino | ||
| 1974 | Ford | Torino | ||
| 1970 | Mercury | Colony Park | ||
| 1971 | Mercury | Colony Park | ||
| 1972 | Mercury | Colony Park | ||
| 1973 | Mercury | Colony Park | ||
| 1974 | Mercury | Colony Park | ||
| 1969 | Mercury | Comet | ||
| 1970 | Mercury | Cougar | ||
| 1971 | Mercury | Cougar | ||
| 1972 | Mercury | Cougar | ||
| 1973 | Mercury | Cougar | ||
| 1974 | Mercury | Cougar | ||
| 1969 | Mercury | Cyclone | ||
| 1970 | Mercury | Cyclone | ||
| 1971 | Mercury | Cyclone | ||
| 1970 | Mercury | Marquis | ||
| 1971 | Mercury | Marquis | ||
| 1972 | Mercury | Marquis | ||
| 1973 | Mercury | Marquis | ||
| 1974 | Mercury | Marquis | ||
| 1969 | Mercury | Montego | ||
| 1970 | Mercury | Montego | ||
| 1971 | Mercury | Montego | ||
| 1972 | Mercury | Montego | ||
| 1973 | Mercury | Montego | ||
| 1974 | Mercury | Montego | ||
| 1970 | Mercury | Monterey | ||
| 1971 | Mercury | Monterey | ||
| 1972 | Mercury | Monterey | ||
| 1973 | Mercury | Monterey | ||
| 1974 | Mercury | Monterey |
