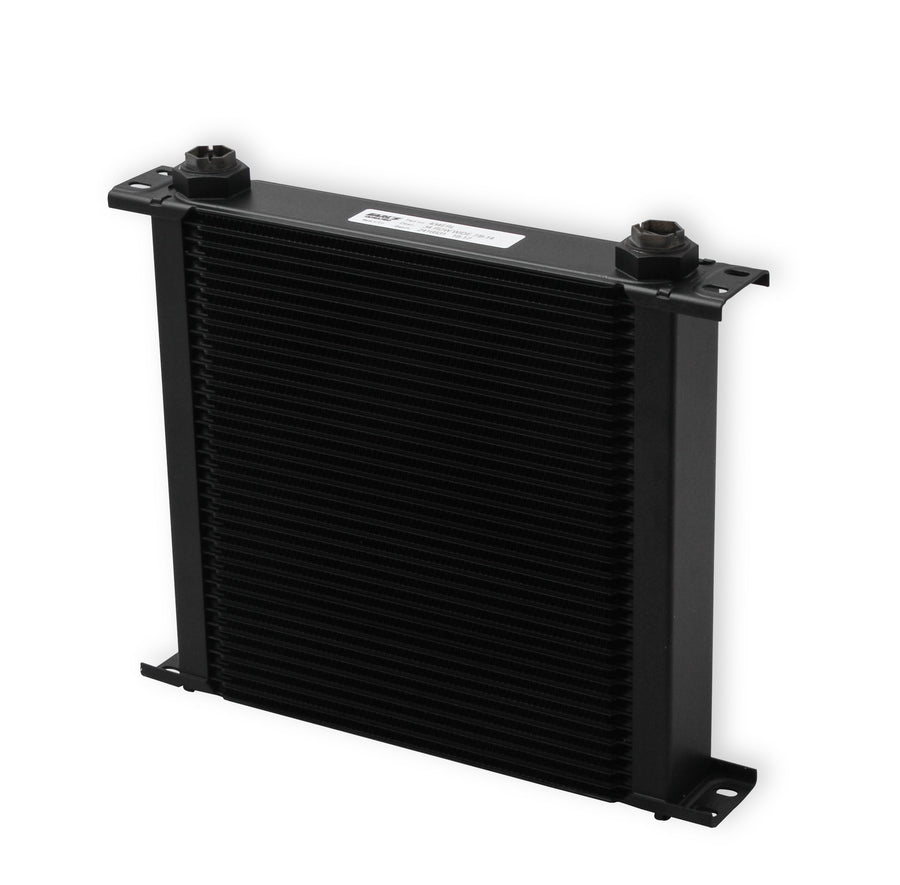

Earl's Performance Earl's UltraPro Oil Cooler - Black - 34 Rows - Wide Cooler 434ERL
Specifications:
| Application | Engine Oil Cooler |
| Body Width (Overall) | 13.000" |
| Brackets Included | No |
| Brand | Earl's |
| Category | Cooling |
| Construction | Stacked Plate - Brazed |
| Cooler Fittings | 585112ERL |
| Cooler Fittings | 585108ERL |
| Cooler Fittings | 585110ERL |
| Cooler Fittings | AT585112ERL |
| Cooler Fittings | AT585110ERL |
| Cooler Fittings | 585106ERL |
| Cooler Fittings | AT585108ERL |
| Cooler Fittings | AT585106ERL |
| Cooler Fittings Included | No |
| Emission Code | 5 |
| Engine HP Range | 400-475 HP |
| Engine Oil BTU Range | 43,000-59,000 |
| 200 | Black |
| Fitting Centers | 9.530" |
| Height | 10.390" |
| Material | Aluminum |
| Mounting Bracket Width | 12.200" |
| Mounting Brackets | 400ERL |
| Port Size | 7/8-14 Female (-10 O-Ring Boss) |
| Product Line | UltraPro |
| Product Type | Oil Cooler |
| ROWS | 34 Rows |
| Temperature Range | -40° F to 302° F |
| Thickness | 2.000" |
| Volume | .75 Quarts |
| Weight | 4.50 Lbs |
| Width | Wide Cooler |
| Width (Less Mounting Ears) | 11.125" |
| Application | Engine Oil Cooler |
| Body Width (Overall) | 13.000" |
| Brackets Included | No |
| Brand | Earl's |
| Category | Cooling |
| Construction | Stacked Plate - Brazed |
| Cooler Fittings | 585112ERL |
| Cooler Fittings | 585108ERL |
| Cooler Fittings | 585110ERL |
| Cooler Fittings | AT585112ERL |
| Cooler Fittings | AT585110ERL |
| Cooler Fittings | 585106ERL |
| Cooler Fittings | AT585108ERL |
| Cooler Fittings | AT585106ERL |
| Cooler Fittings Included | No |
| Emission Code | 5 |
| Engine HP Range | 400-475 HP |
| Engine Oil BTU Range | 43,000-59,000 |
| 200 | Black |
| Fitting Centers | 9.530" |
| Height | 10.390" |
| Material | Aluminum |
| Mounting Bracket Width | 12.200" |
| Mounting Brackets | 400ERL |
| Port Size | 7/8-14 Female (-10 O-Ring Boss) |
| Product Line | UltraPro |
| Product Type | Oil Cooler |
| ROWS | 34 Rows |
| Temperature Range | -40° F to 302° F |
| Thickness | 2.000" |
| Volume | .75 Quarts |
| Weight | 4.50 Lbs |
| Width | Wide Cooler |
| Width (Less Mounting Ears) | 11.125" |
| Description_INV | 34 ROW ULTRAPRO COOLER WIDE BLACK |
| Description_DES | Earl's UltraPro Oil Cooler - Black - 34 Rows - Wide Cooler |
| Description_EXT | 34 Row Oil Cooler Core Black |
| Description_MKT | Earls new premium quality UltraPro oil coolers are ideal for all high performance applications. These aluminum stacked plate style coolers are made using state of the art brazing techniques for a durable and long lasting premium cooler that is highly efficient w/ minimal pressure drop. These coolers are available in 30 sizes for all applications (i.e. engine oil cooler, transmission cooler, power steering cooler, valve spring cooler, differential / gearbox cooler, etc.). Three fan pack style coolers are now also available w/ a premium cooling fan & shroud. These coolers feature -10 AN O-ring female ports and are used with special ORB cooler fittings (-6 AN, -8 AN, -10 AN, or -12 AN) and AN hose ends. Earls will also now stock coolers w/ -16 AN male flares brazed on the cooler for applications that require larger ports for additional oil flow. Black Finish. |
| Description_FAB | Optional Mounting Brackets – Sold Separately |
| Description_INV | 34 ROW ULTRAPRO COOLER WIDE BLACK |
| Description_DES | Earl's UltraPro Oil Cooler - Black - 34 Rows - Wide Cooler |
| Description_EXT | 34 Row Oil Cooler Core Black |
| Description_MKT | Earls new premium quality UltraPro oil coolers are ideal for all high performance applications. These aluminum stacked plate style coolers are made using state of the art brazing techniques for a durable and long lasting premium cooler that is highly efficient w/ minimal pressure drop. These coolers are available in 30 sizes for all applications (i.e. engine oil cooler, transmission cooler, power steering cooler, valve spring cooler, differential / gearbox cooler, etc.). Three fan pack style coolers are now also available w/ a premium cooling fan & shroud. These coolers feature -10 AN O-ring female ports and are used with special ORB cooler fittings (-6 AN, -8 AN, -10 AN, or -12 AN) and AN hose ends. Earls will also now stock coolers w/ -16 AN male flares brazed on the cooler for applications that require larger ports for additional oil flow. Black Finish. |
| Description_FAB | Optional Mounting Brackets – Sold Separately |
