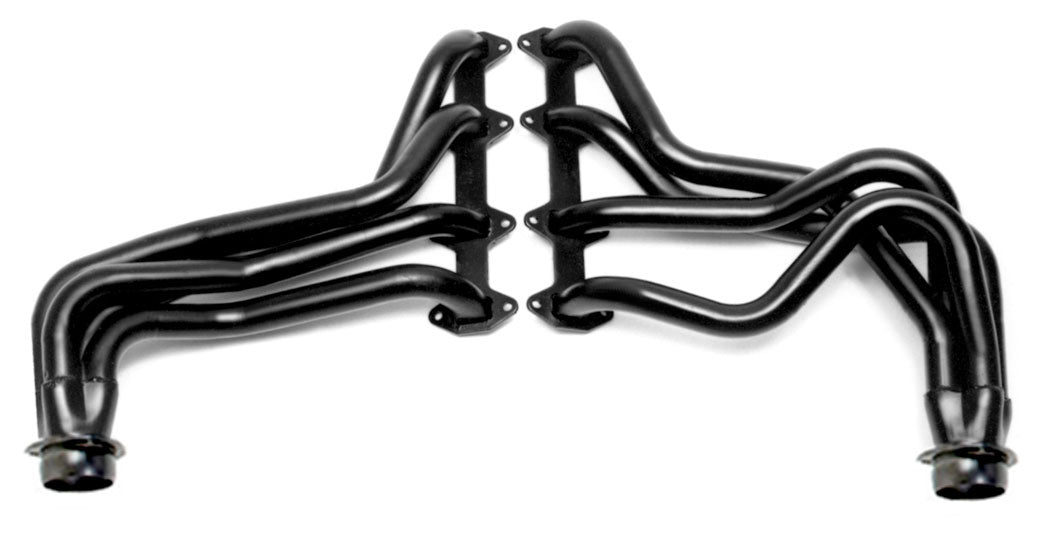

Hedman Hedders Standard Uncoated Headers; 1-3/4 in. Tube Dia.; 3 in. Coll.; FULL LENGTH Design 89180
Specifications:
| Quantity | Sold as a pair. |
| Replacement Gasket | 27740 |
| Header Material | Mild Steel |
| Installation Hardware Included | Yes |
| with A.I.R. System | No |
| with EGR | No |
| Y-Pipe Included | No |
| Cylinder Head Port Shape | Square |
| Variations | 89186 |
| Port Shape | Square |
| Contents | headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware |
| Title | HEDMAN HEDDERS STANDARD UNCOATED HEADERS; '69-76 FORD F100 & F250, 360-390 ENGINE; 4WD ONLY; 1-3/4 IN. TUBE DIAMETER; 3 IN. COLLECTOR.; FULL LENGTH DESIGN- UNCOATED MILD STEEL |
| Notes | 69-77 Ford 1/2 Ton Trucks; 4WD 352-390 |
| Manual Transmission - Floor | Yes |
| Drivetrain | 4WD Only! |
| Header Construction | MILD STEEL- Standard-Duty |
| Reducer Outlet Size | 2-1/2 in. |
| Gasket Or Seal Included | Yes |
| E.O. # | Yes |
| Collector Attachment | 3 in. |
| Flange Thickness | 0.3125 in. |
| Exhaust System Dia | 2-1/2 in. |
| Material | Mild Steel |
| California Proposition 65 | WARNING: Cancer. For more info visit www.P65Warnings.ca.gov |
| Collector Style | BALL and SOCKET Style (Gasketless) |
| Tube Style | Long Tubes |
| Finish Type | UNCOATED Mild Steel! Shipped with Temporary Paint. |
| Emissions Notes | EO# D167-27 (click here for covered vehicles in document on ARB.CA.GOV website) |
| Tube Length | Long Tubes |
| Tube Diameter | 1-3/4 in. |
| Tube Size | 1-3/4 in. |
| Tube Design | Standard |
| Finish | Uncoated |
| Replacement Head Flange Gasket | 27740 |
| Header Finish | Uncoated |
| Primary Tube Gauge | 16g |
| Header Fasteners Included | Yes |
| Bolts/Studs Included | Yes |
| Air Conditioning | Yes |
| Header Style | Long Tube |
| Reducers Included | Yes |
| Automatic Transmission - Column | Yes |
| Automatic Transmission - Floor | Yes |
| Collector Size | 3 in. |
| Power Steering | Yes |
| Flange Style | Standard |
| Header Port Shape | Square |
| Manual Transmission - Column | Yes |
| Tube Material Thickness | 16g |
| Collector Diameter | 3 in. |

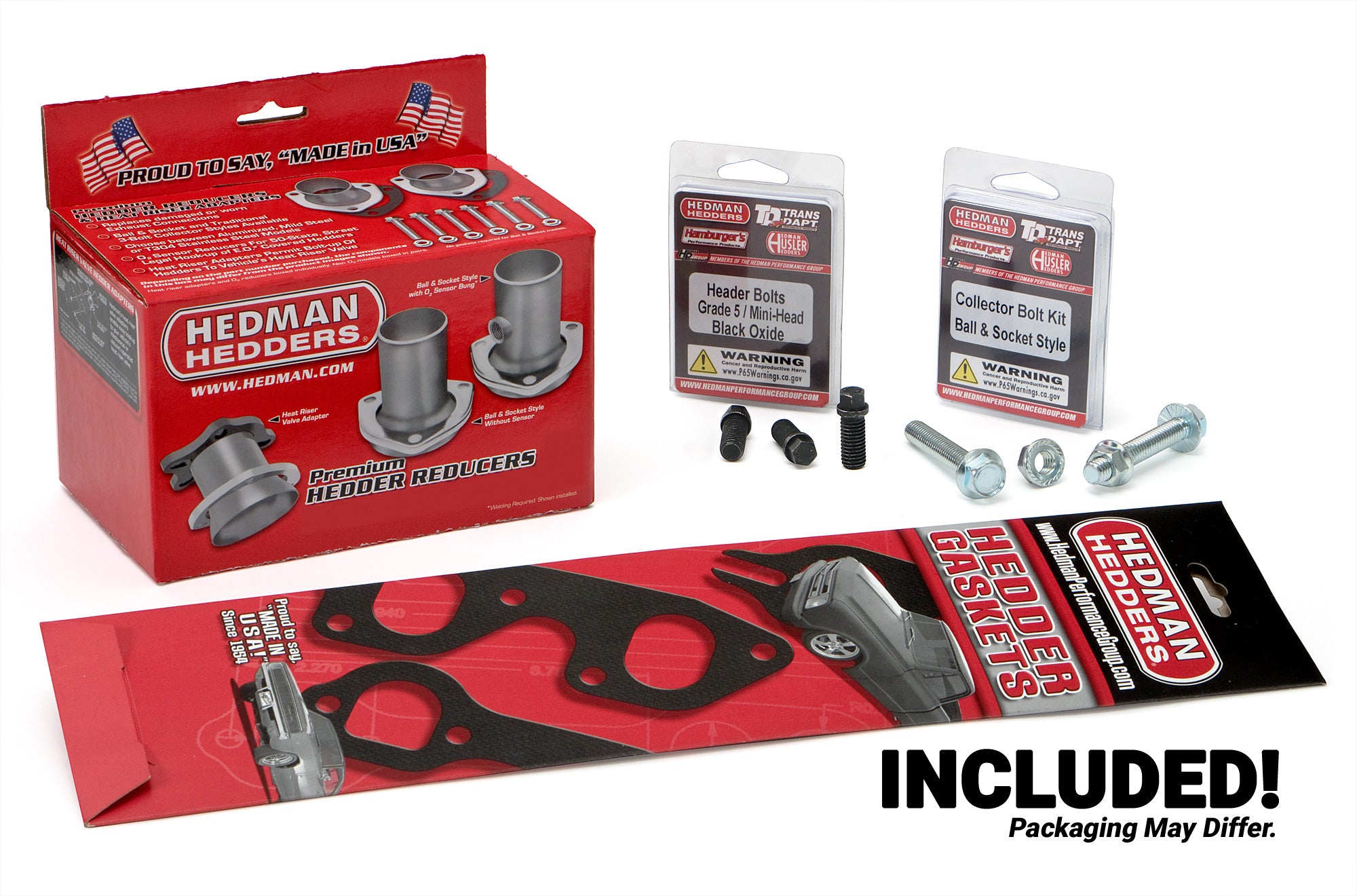

| Package Contents | Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Cylinder Head | Stock Profile Heads |
| Mounting Hardware Included | Yes |
| Primary Tube Diameter (in) | 1.75 in. |
| Tuned | No |
| Weld-Up | No |
| Collector Bolts Included | Yes |
| Catalytic Converter(s) Included | No |
| Crossover Pipe Included | No |
| Motor Mounts Included | No |
| Description_SHO | HEADERS, UNCOATED |
| Description_INV | HEDMAN FORD TRUCK HEADER-UNCOATED |
| Description_DEF | Exhaust Header |
| Description_DES | Uncoated 50-State Legal Headers for 69-77 Ford 4WD F100 or F150 Truck w/352-390 |
| Description_ASM | 1970-1976 Ford F-100 CID 360 GAS 4WD, 1970-1976 Ford F-100 CID 390 GAS 4WD, 1976 Ford F-150 CID 360 GAS 4WD, 1976 Ford F-150 CID 390 GAS 4WD |
| Description_EXT | Standard Uncoated Headers; 1-3/4 in. Tube Dia.; 3 in. Coll.; FULL LENGTH Design |
| Description_FAB | Handcrafted, Mild Steel Construction. |
| Description_FAB | Long Tube Header Design Provides Excellent Top-End Horsepower and Torque. |
| Description_FAB | Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors |
| Description_FAB | Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters) |
| Description_FAB | Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating! |
| Description_FAB | Proud To Say, Made In The USA, Since 1954! |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1969 | Ford | F-100 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: Yes; Manual Transmission - Floor: Yes; Footnotes: (138) Will not fit Camper Special or vehicles equipped with front sway bar.; Footnotes: (166) Will not multi-shock absorber factory or aftermarket installations.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Drivetrain: 4WD Models Only!; Emissions Notes: 1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed. | |
| 1969 | Ford | F-100 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: Yes; Manual Transmission - Floor: Yes; Footnotes: (138) Will not fit Camper Special or vehicles equipped with front sway bar.; Footnotes: (166) Will not multi-shock absorber factory or aftermarket installations.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Drivetrain: 4WD Models Only!; Emissions Notes: 1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed. | |
| 1970 | Ford | F-100 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: Yes; Manual Transmission - Floor: Yes; Footnotes: (138) Will not fit Camper Special or vehicles equipped with front sway bar.; Footnotes: (166) Will not multi-shock absorber factory or aftermarket installations.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Drivetrain: 4WD Models Only!; Emissions Notes: 1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed. | |
| 1970 | Ford | F-100 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: Yes; Manual Transmission - Floor: Yes; Footnotes: (138) Will not fit Camper Special or vehicles equipped with front sway bar.; Footnotes: (166) Will not multi-shock absorber factory or aftermarket installations.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Drivetrain: 4WD Models Only!; Emissions Notes: 1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed. | |
| 1971 | Ford | F-100 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: Yes; Manual Transmission - Floor: Yes; Footnotes: (138) Will not fit Camper Special or vehicles equipped with front sway bar.; Footnotes: (166) Will not multi-shock absorber factory or aftermarket installations.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Drivetrain: 4WD Models Only!; Emissions Notes: 1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed. | |
| 1971 | Ford | F-100 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: Yes; Manual Transmission - Floor: Yes; Footnotes: (138) Will not fit Camper Special or vehicles equipped with front sway bar.; Footnotes: (166) Will not multi-shock absorber factory or aftermarket installations.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Drivetrain: 4WD Models Only!; Emissions Notes: 1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed. | |
| 1972 | Ford | F-100 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: Yes; Manual Transmission - Floor: Yes; Footnotes: (138) Will not fit Camper Special or vehicles equipped with front sway bar.; Footnotes: (166) Will not multi-shock absorber factory or aftermarket installations.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Drivetrain: 4WD Models Only!; Emissions Notes: 1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed. | |
| 1972 | Ford | F-100 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: Yes; Manual Transmission - Floor: Yes; Footnotes: (138) Will not fit Camper Special or vehicles equipped with front sway bar.; Footnotes: (166) Will not multi-shock absorber factory or aftermarket installations.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Drivetrain: 4WD Models Only!; Emissions Notes: 1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed. | |
| 1973 | Ford | F-100 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: Yes; Manual Transmission - Floor: Yes; Footnotes: (138) Will not fit Camper Special or vehicles equipped with front sway bar.; Footnotes: (166) Will not multi-shock absorber factory or aftermarket installations.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Drivetrain: 4WD Models Only!; Emissions Notes: 1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed. | |
| 1973 | Ford | F-100 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: Yes; Manual Transmission - Floor: Yes; Footnotes: (138) Will not fit Camper Special or vehicles equipped with front sway bar.; Footnotes: (166) Will not multi-shock absorber factory or aftermarket installations.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Drivetrain: 4WD Models Only!; Emissions Notes: 1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed. | |
| 1974 | Ford | F-100 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: Yes; Manual Transmission - Floor: Yes; Footnotes: (138) Will not fit Camper Special or vehicles equipped with front sway bar.; Footnotes: (166) Will not multi-shock absorber factory or aftermarket installations.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Drivetrain: 4WD Models Only!; Emissions Notes: 1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed. | |
| 1974 | Ford | F-100 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: Yes; Manual Transmission - Floor: Yes; Footnotes: (138) Will not fit Camper Special or vehicles equipped with front sway bar.; Footnotes: (166) Will not multi-shock absorber factory or aftermarket installations.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Drivetrain: 4WD Models Only!; Emissions Notes: 1974 and earlier vehicles WITHOUT A.I.R.; Does not require EO if existing emission controls are not removed. |
