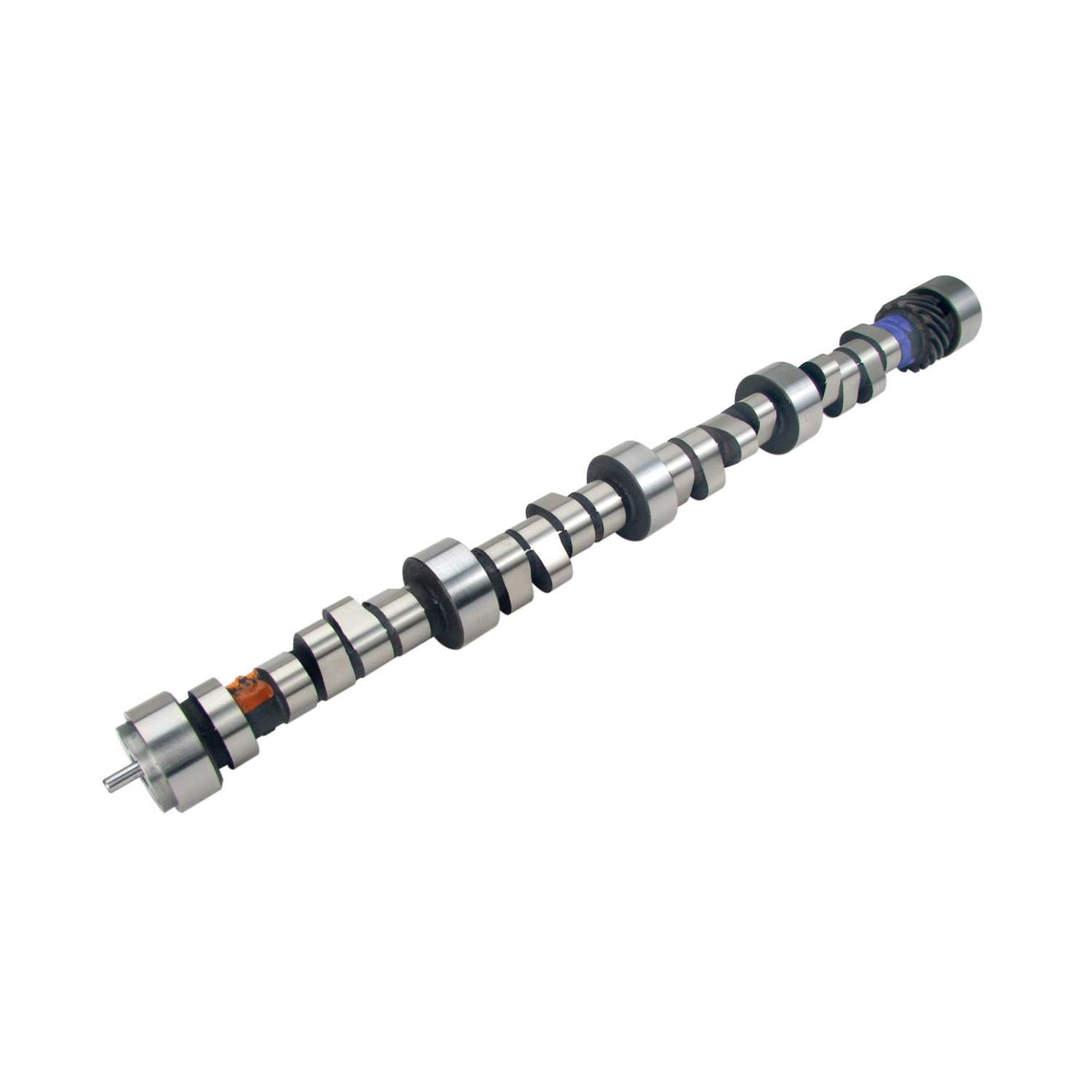

COMP Cams Xtreme Energy 210/220 Hydraulic Roller Cam for GM LT1/LT4 07-304-8
Specifications:
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exemption Reason | N/A |
| C.A.R.B. E.O. Number | N/A |
| 10602 | 266HR-14 |
| Camshaft Series | Xtreme Energy |
| Cam Type | Hydraulic Roller |
| Grind Number | 266HR-14 |
| Basic Operating RPM Range | 1,000-5,000 |
| Intake Duration at .050 Inch Lift | 210 |
| Exhaust Duration at .050 inch Lift | 220 |
| Advertised Intake Duration | 266 |
| Advertised Exhaust Duration | 276 |
| Lobe Separation | 114 |
| Intake Valve Lift | 0.5 |
| Exhaust Valve Lift | 0.51 |
| Lifters Included | No |
| Valve Springs Required | Yes |
| Assembly Lubricant Included | No |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Austempered Ductile Iron |
| Engine Family | GM LT1 and LT4 350 c.i. 8 Cylinder (1995-1997) |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Lifter Type | Hydraulic Roller |
| Title | Xtreme Energy 210/220 Hydraulic Roller Cam for GM LT1/LT4 |
| Amazon ASIN | B000VU1QB6 |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| Description_SHO | XE 210/220 HRlrLT1/4 |
| Description_INV | XE 210/220 Hyd Roller Cam GM LT1/LT4 |
| Description_KSW | SBC |
| Description_KSW | Chevrolet |
| Description_KSW | Chevy Small Block |
| Description_KSW | Small Block Chevrolet |
| Description_KSW | 305 |
| Description_KSW | 350 |
| Description_KSW | LT1 |
| Description_KSW | LT4 |
| Description_KSW | Chevelle |
| Description_KSW | Camaro |
| Description_KSW | Swap |
| Description_KSW | Corvette |
| Description_KSW | Bel Air |
| Description_KSW | Z28 |
| Description_KSW | Z2/8 |
| Description_KSW | Duntov |
| Description_KSW | Nova |
| Description_KSW | Monaro |
| Description_KSW | Firebird |
| Description_KSW | Trans-Am |
| Description_KSW | Pontac |
| Description_KSW | C10 |
| Description_KSW | C20 |
| Description_KSW | K10 |
| Description_KSW | Blazer |
| Description_KSW | S10 |
| Description_KSW | Monza |
| Description_KSW | Ventura |
| Description_KSW | Monte Carlo |
| Description_KSW | Malibu |
| Description_KSW | El Camino |
| Description_KSW | Caprice |
| Description_KSW | Vortec |
| Description_KSW | SS |
| Description_DES | Xtreme Energy 210/220 Hydraulic Roller Cam for GM LT1/LT4 |
| Description_APS | Buick: Commercial Chassis 94 - 96 5.7 L Engine Buick: Roadmaster 94 - 96 5.7 L Engine Cadillac: Commercial Chassis 94 - 96 5.7 L Engine Cadillac: Fleetwood 94 - 96 5.7 L Engine |
| Description_APS | Chevrolet: Camaro 92 - 97 5.7 L Engine Chevrolet: Caprice 94 - 96 4.3 L Engine Chevrolet: Caprice 94 - 96 5.7 L Engine Chevrolet: Commercial Chassis 94 - 94 5.7 L Engine |
| Description_APS | Chevrolet: Corvette 92 - 96 5.7 L Engine Chevrolet: Impala 94 - 96 5.7 L Engine Excalibur: Limited 93 - 93 5.7 L Engine Pontiac: Firebird 92 - 97 5.7 L Engine |
| Description_EXT | Good in factory LT1 |
| Description_EXT | noticeable increase over stock cam. |
| Description_DEF | Engine Camshaft |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1994 | Buick | Commercial Chassis | Base | |
| 1995 | Buick | Commercial Chassis | Base | |
| 1996 | Buick | Commercial Chassis | Base | |
| 1994 | Buick | Roadmaster | Base | |
| 1995 | Buick | Roadmaster | Base | |
| 1996 | Buick | Roadmaster | Collector's Edition | |
| 1994 | Buick | Roadmaster | Estate Wagon | |
| 1995 | Buick | Roadmaster | Estate Wagon | |
| 1996 | Buick | Roadmaster | Estate Wagon Collector's Edition | |
| 1994 | Buick | Roadmaster | Limited | |
| 1995 | Buick | Roadmaster | Limited | |
| 1996 | Buick | Roadmaster | Limited Collector's Edition | |
| 1994 | Cadillac | Commercial Chassis | Base | |
| 1995 | Cadillac | Commercial Chassis | Base | |
| 1996 | Cadillac | Commercial Chassis | Base | |
| 1994 | Cadillac | Commercial Chassis | Brougham | |
| 1995 | Cadillac | Commercial Chassis | Brougham | |
| 1996 | Cadillac | Commercial Chassis | Brougham | |
| 1994 | Cadillac | Fleetwood | Base | |
| 1995 | Cadillac | Fleetwood | Base | |
| 1996 | Cadillac | Fleetwood | Base | |
| 1994 | Cadillac | Fleetwood | Brougham | |
| 1995 | Cadillac | Fleetwood | Brougham | |
| 1996 | Cadillac | Fleetwood | Brougham | |
| 1993 | Chevrolet | Camaro | Indianapolis 500 Pace Car | |
| 1992 | Chevrolet | Camaro | Z28 | |
| 1993 | Chevrolet | Camaro | Z28 | |
| 1994 | Chevrolet | Camaro | Z28 | |
| 1995 | Chevrolet | Camaro | Z28 | |
| 1996 | Chevrolet | Camaro | Z28 | |
| 1997 | Chevrolet | Camaro | Z28 | |
| 1992 | Chevrolet | Camaro | Z28 Heritage Edition | |
| 1994 | Chevrolet | Caprice | Classic | |
| 1994 | Chevrolet | Caprice | Classic | |
| 1995 | Chevrolet | Caprice | Classic | |
| 1995 | Chevrolet | Caprice | Classic | |
| 1996 | Chevrolet | Caprice | Classic | |
| 1996 | Chevrolet | Caprice | Classic | |
| 1994 | Chevrolet | Caprice | Classic LS | |
| 1994 | Chevrolet | Caprice | Classic LS | |
| 1994 | Chevrolet | Commercial Chassis | Base | |
| 1993 | Chevrolet | Corvette | 40th Anniversary Edition | |
| 1992 | Chevrolet | Corvette | Base | |
| 1993 | Chevrolet | Corvette | Base | |
| 1994 | Chevrolet | Corvette | Base | |
| 1995 | Chevrolet | Corvette | Base | |
| 1996 | Chevrolet | Corvette | Base | |
| 1996 | Chevrolet | Corvette | Collector's Edition | |
| 1996 | Chevrolet | Corvette | Grand Sport | |
| 1995 | Chevrolet | Corvette | Indianapolis 500 Pace Car | |
| 1994 | Chevrolet | Impala | SS | |
| 1995 | Chevrolet | Impala | SS | |
| 1996 | Chevrolet | Impala | SS | |
| 1993 | Excalibur | Limited | Base | |
| 1992 | Pontiac | Firebird | Formula | |
| 1993 | Pontiac | Firebird | Formula | |
| 1994 | Pontiac | Firebird | Formula | |
| 1995 | Pontiac | Firebird | Formula | |
| 1996 | Pontiac | Firebird | Formula | |
| 1997 | Pontiac | Firebird | Formula | |
| 1992 | Pontiac | Firebird | Trans Am | |
| 1993 | Pontiac | Firebird | Trans Am | |
| 1994 | Pontiac | Firebird | Trans Am | |
| 1995 | Pontiac | Firebird | Trans Am | |
| 1996 | Pontiac | Firebird | Trans Am | |
| 1997 | Pontiac | Firebird | Trans Am | |
| 1994 | Pontiac | Firebird | Trans Am GT | |
| 1992 | Pontiac | Firebird | Trans Am GTA |
