Wilwood 260-14248 is a left hand mounting bracket kit that locates a combination proportioning valve next to a Wilwood tandem master cylinder. It is designed to work with Wilwood remote tandem master cylinders in manual or boosted systems, and compact tandem master cylinders with left hand outlets use this kit. Pre-bent stainless steel fluid tubes with installed stainless tube nuts bolt between the valve and the master cylinder. The black E-coated bracket mounts with stainless steel button head fasteners, and the kit includes combination proportioning valve 260-11179.
Notes:
- Designed for Wilwood remote tandem master cylinders.
- A right hand bracket version is also offered.

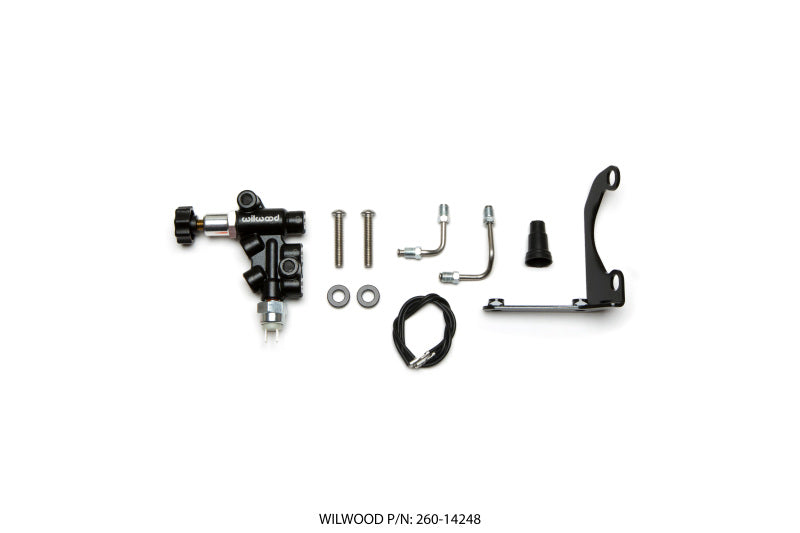

Included:
- Black E-coated L/H mounting bracket
- Combination proportioning valve 260-11179
- Precision bent stainless steel fluid tubes with preinstalled stainless tube nuts
- Stainless steel button head fasteners and mounting hardware
Specifications:
- Brand: Wilwood
- Part Number: 260-14248
- Type: Proportioning Valve
- Mount Side: L/H
- Valve Part Number: 260-11179
- Material: Aluminum / Steel
- Finish: Clear Anodize / Black E-coat
- Rate: 0 to 57%
- Inlet Size: 3/8-24 IF
- Outlet Size: 3/8-24 IF
FAQ
What master cylinders does Wilwood 260-14248 work with?
It is designed for Wilwood remote tandem master cylinders, in manual or power assisted systems.
Is the proportioning valve included?
Yes. The kit includes combination proportioning valve 260-11179 along with the bracket, stainless lines and mounting hardware.
What are the valve port sizes?
The inlet and outlet are 3/8-24 inverted flare.
What is the adjustment range?
The valve adjusts from 0 to 57%.
