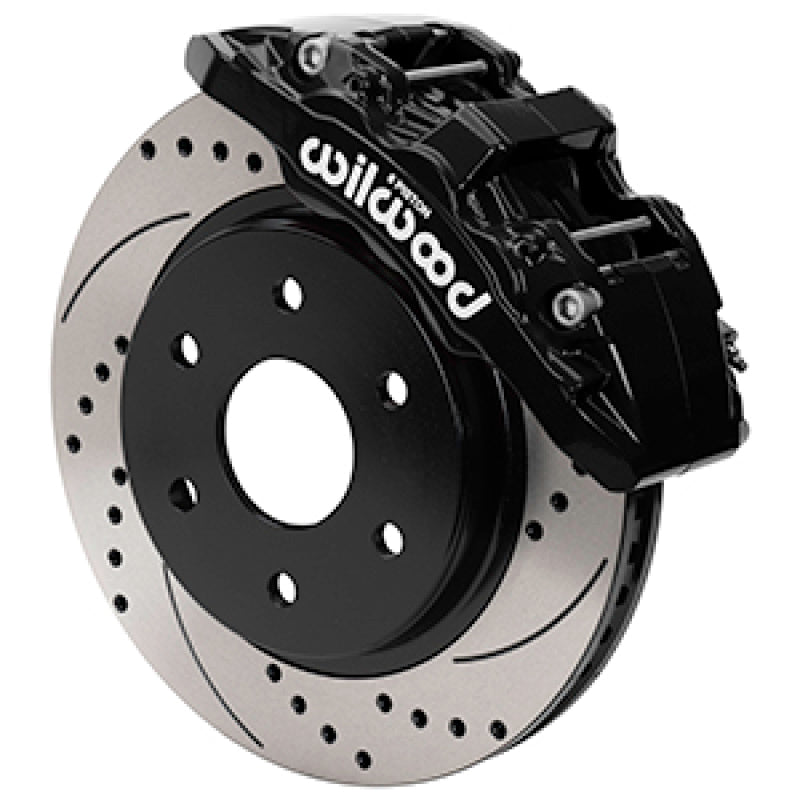

Wilwood 140-16808-D is an AERO6-DM direct-mount front brake kit for 2017-2020 Ford F-150 Raptor trucks with factory disc spindles. It uses six-piston AERODM lug mount calipers in black powder coat with 13.38 in by 1.25 in one-piece SRP drilled and slotted rotor and hat assemblies in iron with a black electro coat finish, and BP-22 compound pads on the 6617 pad plate. The kit is built for heavy trucks and SUVs used for towing, off-road driving or larger wheel and tire packages, and it is compatible with OE master cylinder output and ABS function. It may fit 17 in wheels, and the matching front brake line kit is 220-15838.
Notes:
- Matching front brake line kit: 220-15838, offered as a separate accessory part.
- Minimum wheel diameter is 17 in. Check the wheel clearance diagram in the installation instructions to confirm clearance for a specific wheel.
- Other configurations of this kit: 140-16808 (black calipers, slotted rotors), 140-16808-DR (red calipers, drilled & slotted rotors), 140-16808-R (red calipers, slotted rotors).
Specifications:
- Brand: Wilwood
- Part Number: 140-16808-D
- Kit Type: AERO6-DM Direct-Mount Truck Front Brake Kit
- Spindle Type: Factory Disc Spindle
- Caliper: AERODM
- Caliper Part Numbers (L / R): 120-16830-BK / 120-16829-BK
- Caliper Finish: Black Powder Coat
- Piston Count: 6
- Piston Bores (in): 1.75, 1.62, 1.62
- Piston Area (in²): 6.52
- Piston Type: Stainless
- Caliper Mount Type: Lug
- Brake Pad Plate: 6617
- Pad Compound: BP-22
- Pad Area (in²): 11.1
- Pad Volume (in³): 5.2
- Rotor Part Numbers (L / R): 160-16718-BK / 160-16717-BK
- Rotor Type: SRP Drilled Rotor & Hat
- Rotor Style: SRP Drilled & Slotted
- Rotor Material: Iron
- Rotor Finish: Black Electro Coat
- Rotor Diameter (in): 13.38
- Rotor Width (in): 1.25
- Vane Count: 48 V
- Dynamically Balanced: Yes
- Minimum Wheel Diameter (in): 17
- Front Line Kit: 220-15838
Vehicle Applications
- 2017 Ford F-150 (Raptor)
- 2018 Ford F-150 (Raptor)
- 2019 Ford F-150 (Raptor)
- 2020 Ford F-150 (Raptor)
FAQ
What vehicles does Wilwood 140-16808-D fit?
It fits 2017-2020 Ford F-150 Raptor models with factory disc spindles.
What calipers and rotors come in this kit?
The kit uses AERODM six-piston lug mount calipers (120-16830-BK left, 120-16829-BK right) in black powder coat with 13.38 in by 1.25 in SRP Drilled & Slotted iron rotors in a black electro coat finish.
What wheel size does this kit need?
The minimum wheel diameter is 17 in. Wheel clearance should be checked against the diagram in the installation instructions.
Which brake pads does the kit use?
The calipers use the 6617 pad plate with BP-22 compound pads, with 11.1 in² of pad area.
Are brake lines included?
Brake lines are offered as a separate accessory. The matching front brake line kit is Wilwood 220-15838.
