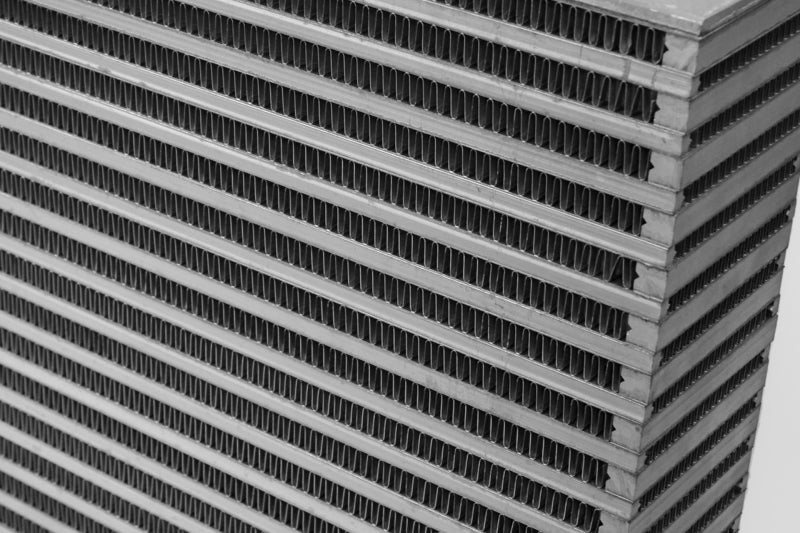

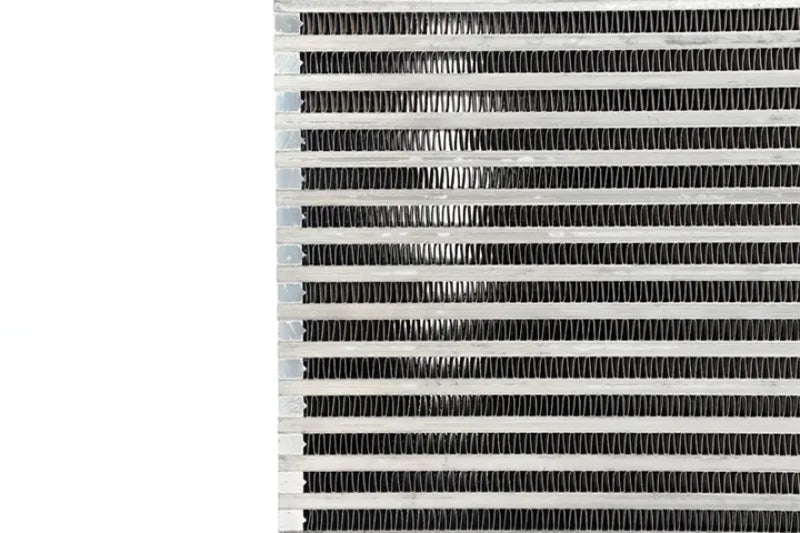

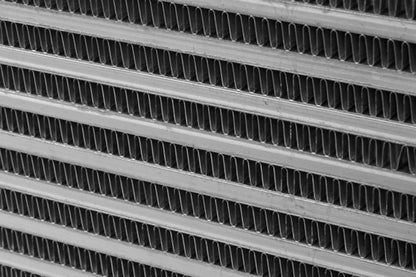

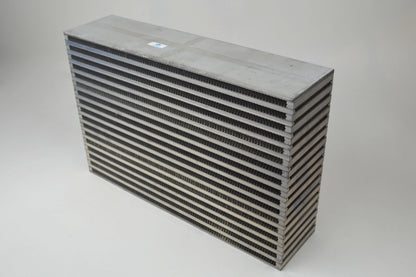

The CSF 8048 is a universal high-performance bar-and-plate intercooler core measuring 18 by 12 by 4.5 inches and rated to 1000 wheel horsepower. It uses a cross-flow design with a multi-louvered high-precision staggered fin pattern on both the ambient and pressure sides of the core. It is batch-brazed in CSF's digital vacuum brazing oven, hand-built in a clean room, and pressure tested at 120 psi. This is a core only, for custom intercooler fabrication.
- Type: universal bar-and-plate intercooler core
- Dimensions: 18 in L x 12 in H x 4.5 in W (455 x 300 x 115mm)
- Rating: 1000 WHP
- Flow: cross-flow

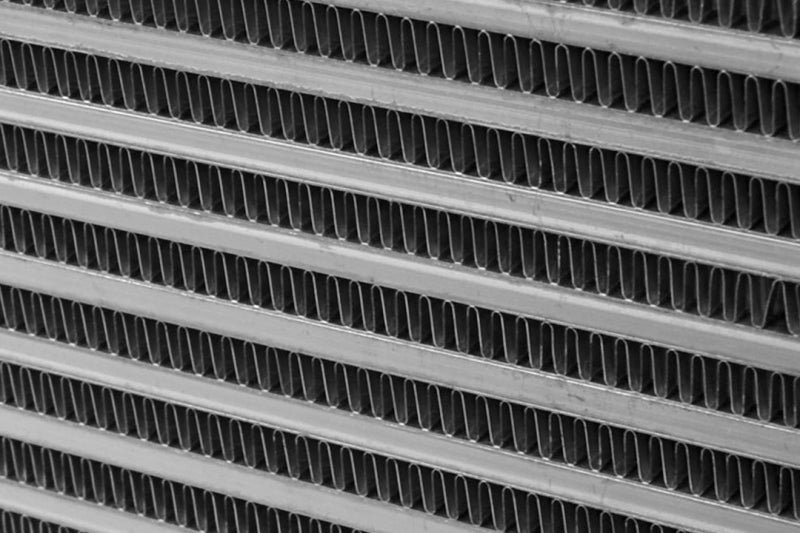

- Fins: multi-louvered, high-precision staggered
- Construction: vacuum-brazed, pressure tested at 120 psi
- Note: core only, for custom fabrication
- Part number: 8048
FAQ
What is the CSF 8048?
A universal bar-and-plate intercooler core, 18 by 12 by 4.5 inches, rated to 1000 wheel horsepower.
What is the horsepower rating?
It is rated to 1000 WHP.
Is this a complete intercooler?
No. It is a core only, intended for custom intercooler fabrication.
