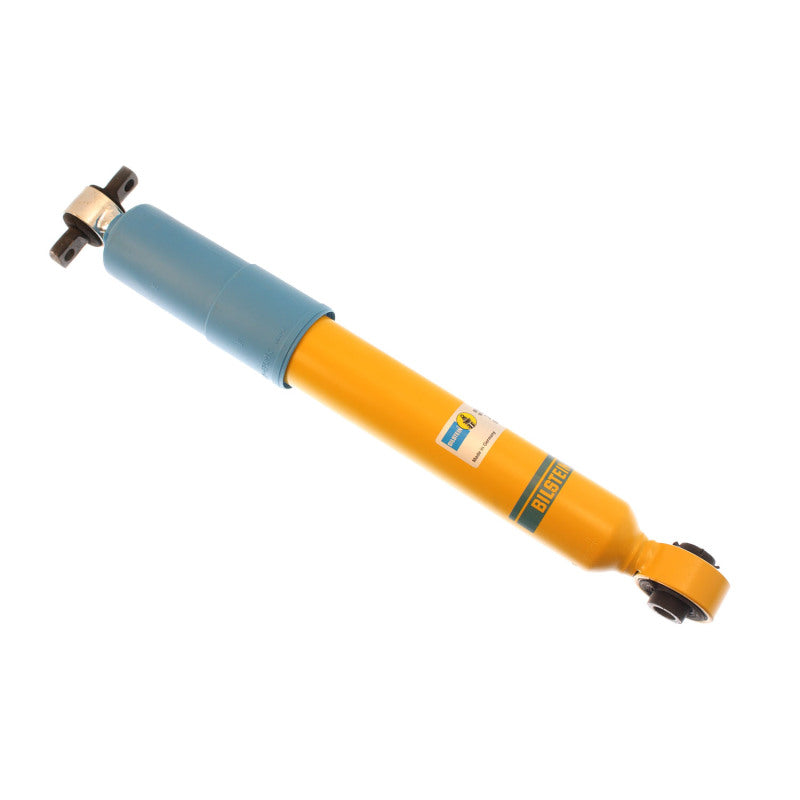

Bilstein 24-066761 is a B6 Performance series rear shock absorber for the 2002-2008 Jaguar X-Type. It is a monotube shock with a yellow paint finish and a blue straight boot, with a bar pin upper mount and a 14.1mm eye lower mount. It measures 12.05 in collapsed and 17.74 in extended, and no spring seat is included. It is designed to be paired with the factory (OE) spring and uses application-specific valve settings; the quantity per vehicle is 2.
Specifications:
- Brand: Bilstein
- Part Number: 24-066761
- Series: B6 Performance
- Product: Suspension Shock Absorber
- Collapsed Length (in): 12.05
- Extended Length (in): 17.74
- Extended Length (mm): 450.5
- Lower Mount Type: Eye 14.1mm
- Upper Mount Type: Bar Pin
- Internal Design: Monotube
- Finish: Yellow Paint
- Boot Included: Blue Straight
- Spring Seat Included: No
- Country of Origin: DE
- Quantity per Vehicle: 2
Vehicle Applications
- 2002 Jaguar X-Type (Base): Rear
- 2003 Jaguar X-Type (Base): Rear
- 2004 Jaguar X-Type (Base): Rear
- 2005 Jaguar X-Type (Base, Premium, Vanden Plas): Rear
- 2006 Jaguar X-Type (Base, Sport, VDP Edition): Rear
- 2007 Jaguar X-Type (Base): Rear
- 2008 Jaguar X-Type (Base): Rear
FAQ
What vehicles does the Bilstein 24-066761 fit?
It fits the rear of the 2002-2008 Jaguar X-Type. The submodels covered for each year are listed under Vehicle Applications.
Is the 24-066761 a front or rear shock?
It is a rear shock absorber, and the quantity per vehicle is 2.
What are the collapsed and extended lengths of the 24-066761?
It measures 12.05 in collapsed and 17.74 in extended.
How does the 24-066761 mount?
It has a bar pin upper mount and a 14.1mm eye lower mount. No spring seat is included.
Does the 24-066761 include a boot?
Yes. It comes with a blue straight boot.
