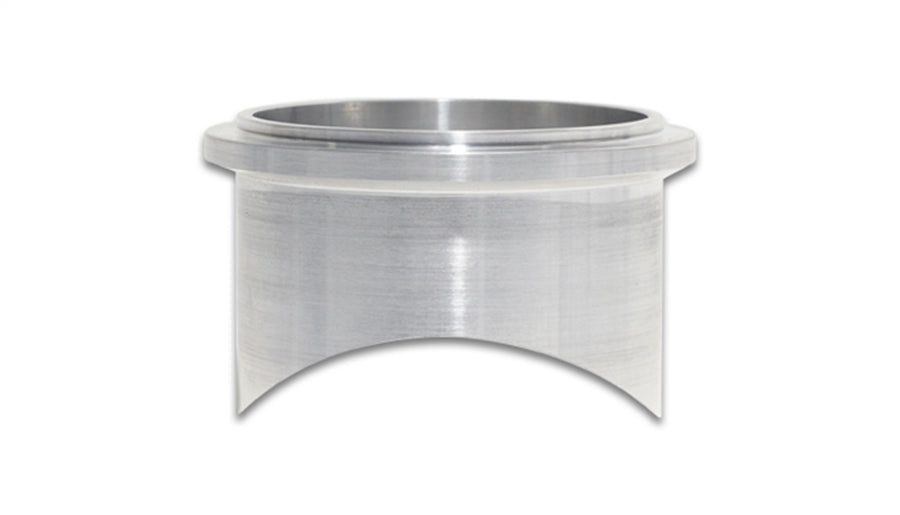

Vibrant Performance weld flanges for Tial blow off valves provide a mounting surface for a 50mm Tial BOV. This flange is aluminum and is coped to sit on 3.00 in O.D. tubing for a clean weld fit.
- Type: Tial 50mm blow off valve weld flange
- Material: aluminum
- Coped for tube O.D.: 3.00 in (76.2 mm)
- Flange O.D.: 59.5 mm
- Centering ring male diameter: 51.67 mm
- Port I.D.: 47.7 mm
- Part number: 11136
FAQ
What blow off valve does this flange fit?
It is designed as a weld flange for 50mm Tial blow off valves.
What tubing size is this flange coped for?
The flange is coped to seat on 3.00 in (76.2 mm) O.D. tubing.
What material is this flange made from?
This flange is aluminum. Vibrant offers the Tial BOV flange in 304 stainless steel, 6061 aluminum and titanium.
