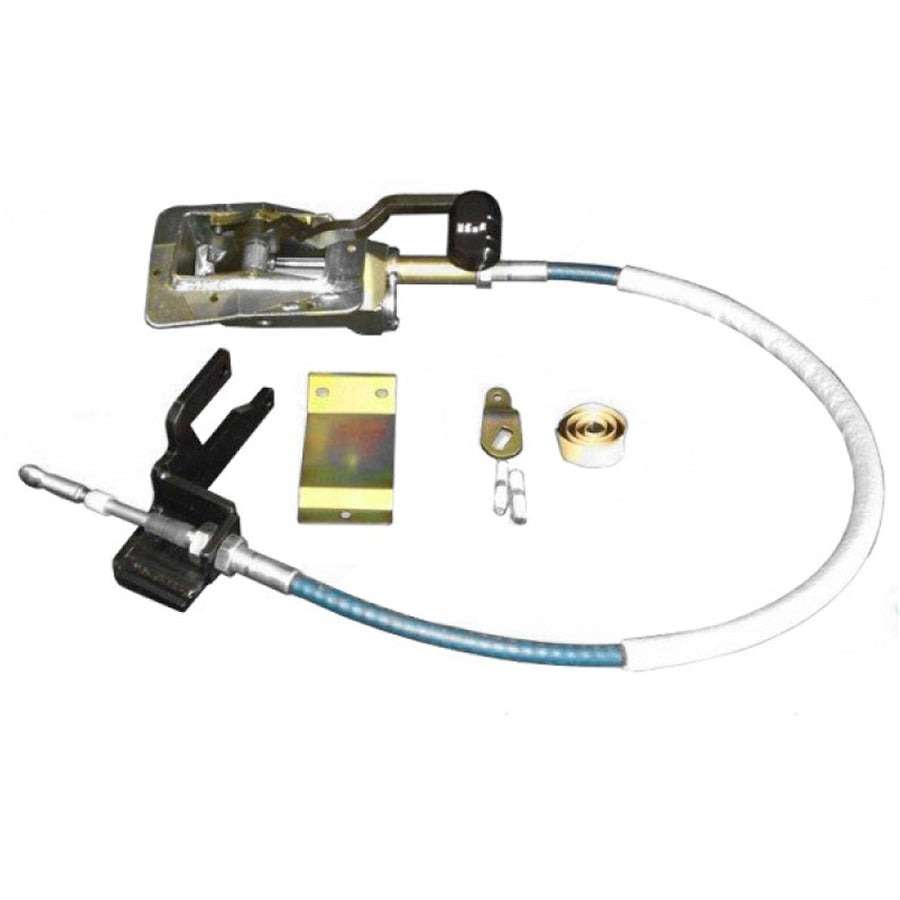

This cable shift kit replaces the factory bell-crank shift linkage on New Process 231 and 241 transfer cases with a cable-actuated shifter, addressing the binding, hard shifting, and accidental slip-out-of-gear issues common on the factory TJ linkage. The kit includes new brackets, a shift cable, hardware, and a new shift knob.
Specifications:
- Type: Transfer case cable shifter
- Compatible transfer cases: New Process 231 / 241
- Included: Brackets, cable, hardware, shift knob
- Sold as: Kit
- Part Number: 715543
Vehicle Applications:
- 1997 Jeep Wrangler TJ
- 1998 Jeep Wrangler TJ
- 1999 Jeep Wrangler TJ
- 2000 Jeep Wrangler TJ
- 2001 Jeep Wrangler TJ
- 2002 Jeep Wrangler TJ
- 2003 Jeep Wrangler TJ
- 2004 Jeep Wrangler TJ
- 2005 Jeep Wrangler TJ
- 2006 Jeep Wrangler TJ
Installing this cable shifter removes the factory bell-crank linkage, which reverses the shift lever pattern inside the vehicle; moving the shifter fully forward engages 4WD Low instead of 2WD after installation. The included replacement knob reflects the corrected shift pattern.
FAQ
What transfer cases does the 715543 cable shift kit fit?
New Process 231 and 241 transfer cases as used in the Jeep Wrangler TJ.
What years of Jeep Wrangler TJ does this kit fit?
1997 through 2006 Jeep Wrangler TJ.
What problem does this kit solve?
It replaces the factory bell-crank shift linkage, which is prone to binding, hard shifts, and slipping out of gear, with a cable-actuated shifter.
Does installing this kit change the shift pattern?
Yes, removing the factory bell-crank linkage reverses the shift lever pattern, so moving the shifter fully forward engages 4WD Low instead of 2WD. A new knob with the corrected pattern is included.
