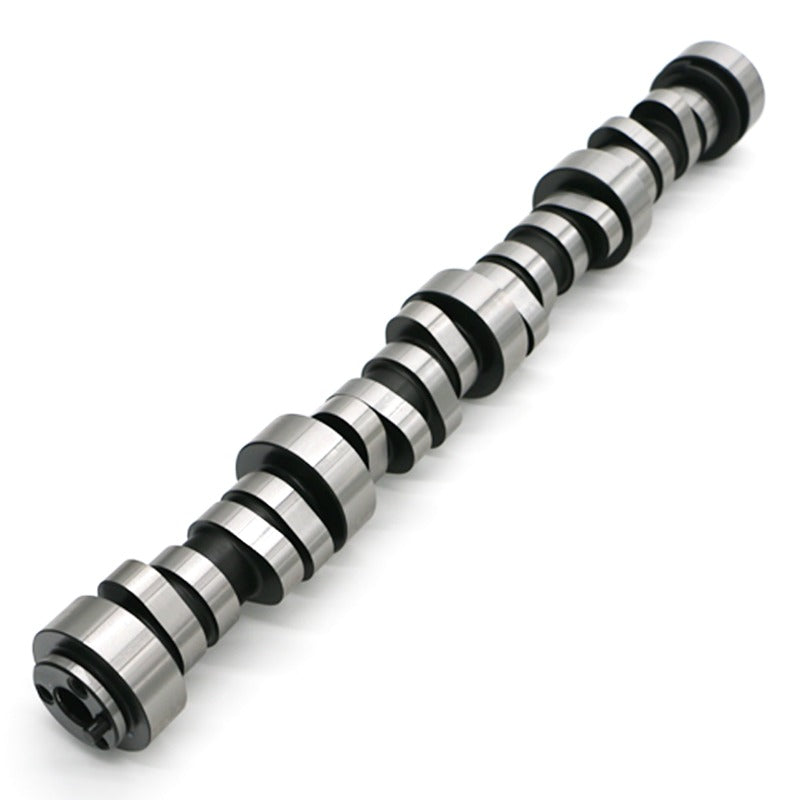

The Texas Speed Magic Stick 3 Camshaft is part of the Magic Stick line, the most popular camshaft series Texas Speed offers. The MS3 is an all-out, max-effort nitrous camshaft intended to pull maximum power from a stock-displacement LS, with 5.7L and 6.0L engines listed as best suited. Its 238/242 duration and 112 degree lobe separation put the powerband between 2,500 and 7,000 rpm.

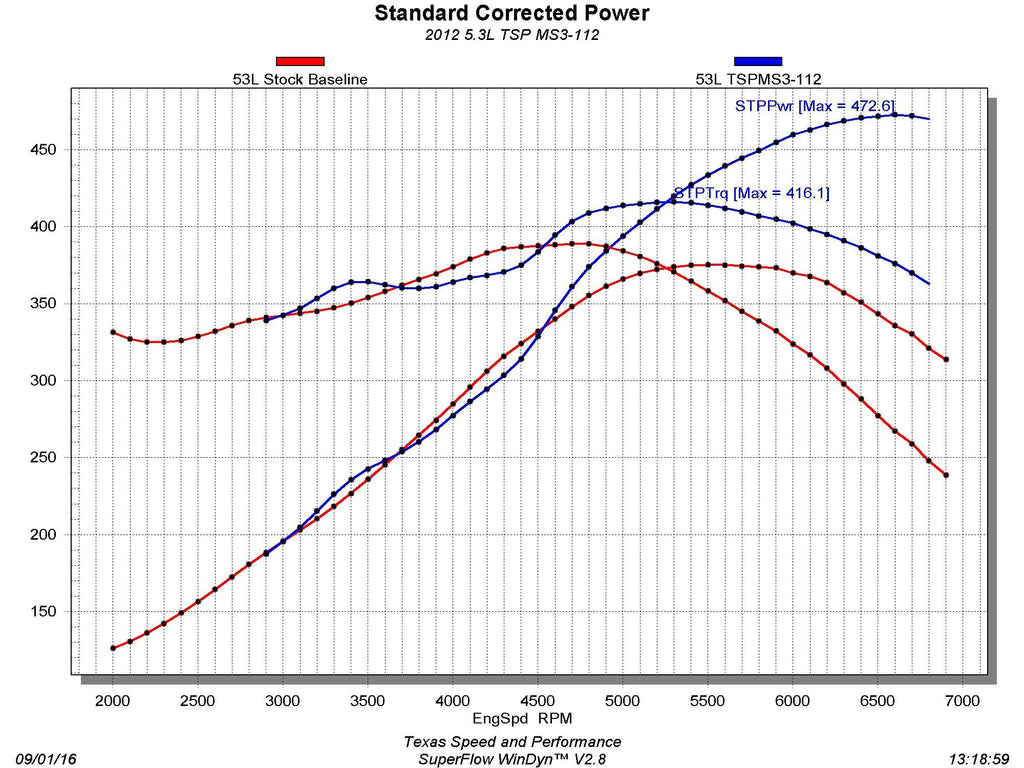

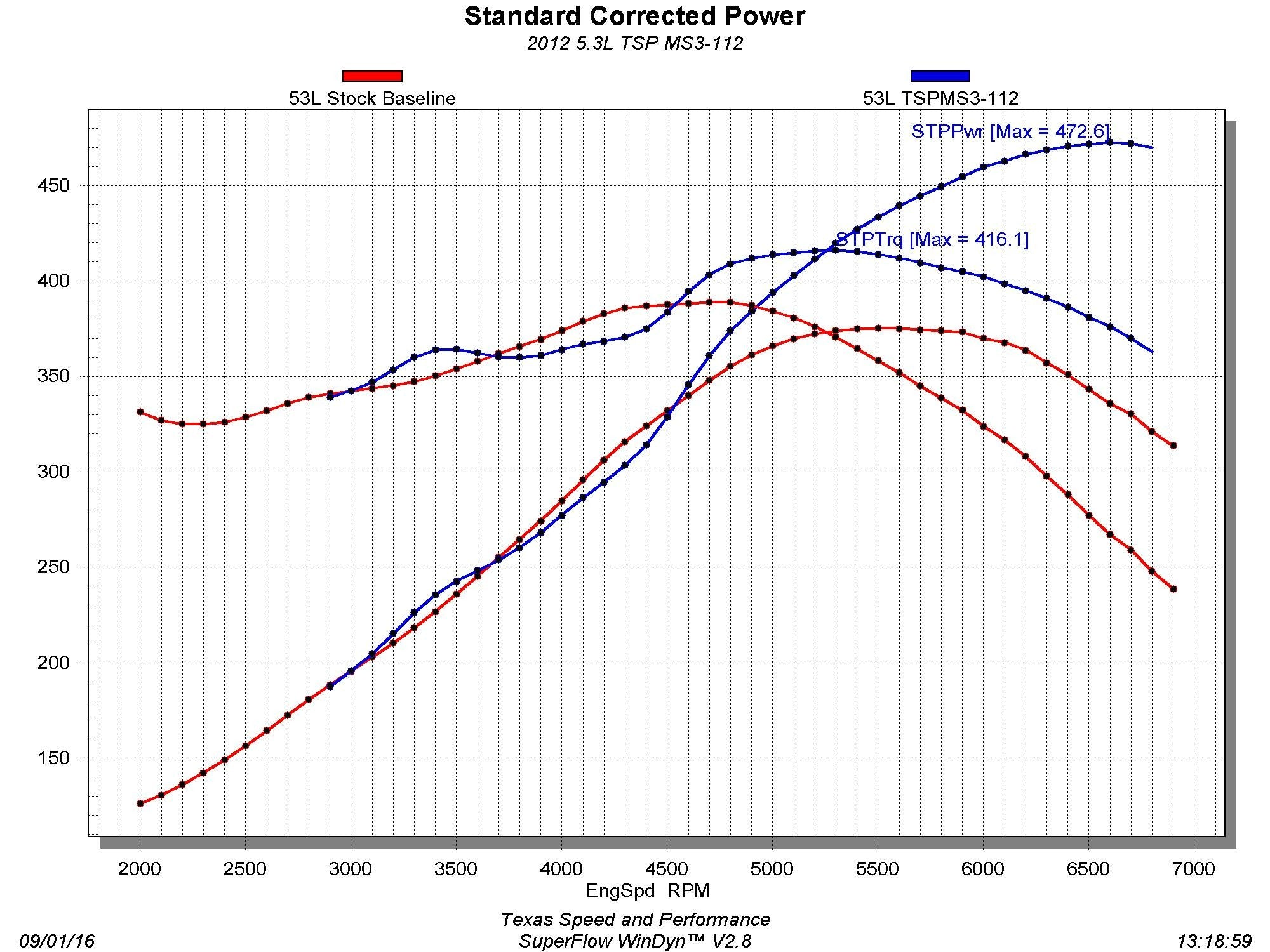

Texas Speed estimates a gain of 60 to 65 or more horsepower at a 10.5:1 compression ratio. A high-quality double spring kit such as the TSP/PAC .660" dual spring kit is required, automatics must have at least a 3,800 rpm stall converter, and a 3.42 or steeper rear gear is listed for maximum performance. The cam fits stock, untouched heads with no piston-to-valve clearance issues per Texas Speed, though measuring is always recommended. Tuning is required for automatic and manual vehicles.
Specifications
- Duration at .050": 238/242
- Valve lift: .600"/.600"
- Lobe separation angle: 112 degrees
- Intake centerline: 110 degrees
- Engines: Stock-displacement LS, 5.7L and 6.0L best suited
- Application: Max-effort naturally aspirated / nitrous
- Recommended compression ratio: 10.5:1
- Recommended valve springs: TSP/PAC .660" dual valve springs (upgraded springs required)
- Aftermarket stall converter required: Yes, 3,800 rpm or higher
- Upgraded rear gear: 3.42 or steeper for maximum performance
- Operating range: 2,500 to 7,000 rpm
- Estimated power increase: 60-65+ hp
- Fits stock untouched heads: Yes, no piston-to-valve clearance issues per Texas Speed; measuring recommended
- Vehicle usage: Race / aggressive
- Chop level: Very aggressive
Vehicle Applications
Engine families listed by Texas Speed: Gen III and Gen IV LS 4.8L, 5.3L, 5.7L, 6.0L and 6.2L, with stock-displacement 5.7L and 6.0L engines best suited.
Chevrolet Camaro
- 1998 Chevrolet Camaro
- 1999 Chevrolet Camaro
- 2000 Chevrolet Camaro
- 2001 Chevrolet Camaro
- 2002 Chevrolet Camaro
- 2010 Chevrolet Camaro
- 2011 Chevrolet Camaro
- 2012 Chevrolet Camaro
- 2013 Chevrolet Camaro
- 2014 Chevrolet Camaro
- 2015 Chevrolet Camaro
Chevrolet Corvette
- 1997 Chevrolet Corvette
- 1998 Chevrolet Corvette
- 1999 Chevrolet Corvette
- 2000 Chevrolet Corvette
- 2001 Chevrolet Corvette
- 2002 Chevrolet Corvette
- 2003 Chevrolet Corvette
- 2004 Chevrolet Corvette
- 2005 Chevrolet Corvette
- 2006 Chevrolet Corvette
- 2007 Chevrolet Corvette
- 2008 Chevrolet Corvette
- 2009 Chevrolet Corvette
- 2010 Chevrolet Corvette
- 2011 Chevrolet Corvette
- 2012 Chevrolet Corvette
- 2013 Chevrolet Corvette
Cadillac CTS-V
- 2004 Cadillac CTS-V
- 2005 Cadillac CTS-V
- 2006 Cadillac CTS-V
- 2007 Cadillac CTS-V
- 2008 Cadillac CTS-V
- 2009 Cadillac CTS-V
- 2010 Cadillac CTS-V
- 2011 Cadillac CTS-V
- 2012 Cadillac CTS-V
- 2013 Cadillac CTS-V
- 2014 Cadillac CTS-V
- 2015 Cadillac CTS-V
Cadillac Escalade
- 2002 Cadillac Escalade
- 2003 Cadillac Escalade
- 2004 Cadillac Escalade
- 2005 Cadillac Escalade
- 2006 Cadillac Escalade
- 2008 Cadillac Escalade
- 2009 Cadillac Escalade
- 2010 Cadillac Escalade
- 2011 Cadillac Escalade
- 2012 Cadillac Escalade
- 2013 Cadillac Escalade
- 2014 Cadillac Escalade
Pontiac Firebird
- 1998 Pontiac Firebird
- 1999 Pontiac Firebird
- 2000 Pontiac Firebird
- 2001 Pontiac Firebird
- 2002 Pontiac Firebird
Pontiac Firebird Formula
- 1998 Pontiac Firebird Formula
- 1999 Pontiac Firebird Formula
- 2000 Pontiac Firebird Formula
- 2001 Pontiac Firebird Formula
- 2002 Pontiac Firebird Formula
Pontiac G8
- 2008 Pontiac G8
- 2009 Pontiac G8
Pontiac GTO
- 2004 Pontiac GTO
- 2005 Pontiac GTO
- 2006 Pontiac GTO
GMC Sierra 1500
- 1999 GMC Sierra 1500
- 2000 GMC Sierra 1500
- 2001 GMC Sierra 1500
- 2002 GMC Sierra 1500
- 2003 GMC Sierra 1500
- 2004 GMC Sierra 1500
- 2005 GMC Sierra 1500
- 2006 GMC Sierra 1500
- 2007 GMC Sierra 1500
- 2008 GMC Sierra 1500
- 2009 GMC Sierra 1500
- 2010 GMC Sierra 1500
- 2011 GMC Sierra 1500
- 2012 GMC Sierra 1500
- 2013 GMC Sierra 1500
GMC Sierra 2500
- 2001 GMC Sierra 2500
- 2002 GMC Sierra 2500
- 2003 GMC Sierra 2500
- 2004 GMC Sierra 2500
- 2005 GMC Sierra 2500
- 2006 GMC Sierra 2500
- 2007 GMC Sierra 2500
- 2009 GMC Sierra 2500
- 2010 GMC Sierra 2500
- 2011 GMC Sierra 2500
- 2012 GMC Sierra 2500
- 2013 GMC Sierra 2500
- 2014 GMC Sierra 2500
- 2015 GMC Sierra 2500
- 2016 GMC Sierra 2500
- 2017 GMC Sierra 2500
- 2018 GMC Sierra 2500
- 2019 GMC Sierra 2500
GMC Sierra 3500
- 2001 GMC Sierra 3500
- 2002 GMC Sierra 3500
- 2003 GMC Sierra 3500
- 2004 GMC Sierra 3500
- 2005 GMC Sierra 3500
- 2006 GMC Sierra 3500
- 2009 GMC Sierra 3500
- 2010 GMC Sierra 3500
- 2011 GMC Sierra 3500
- 2012 GMC Sierra 3500
- 2013 GMC Sierra 3500
- 2014 GMC Sierra 3500
- 2015 GMC Sierra 3500
- 2016 GMC Sierra 3500
- 2017 GMC Sierra 3500
- 2018 GMC Sierra 3500
- 2019 GMC Sierra 3500
Chevrolet Silverado 1500
- 1999 Chevrolet Silverado 1500
- 2000 Chevrolet Silverado 1500
- 2001 Chevrolet Silverado 1500
- 2002 Chevrolet Silverado 1500
- 2003 Chevrolet Silverado 1500
- 2004 Chevrolet Silverado 1500
- 2005 Chevrolet Silverado 1500
- 2006 Chevrolet Silverado 1500
- 2007 Chevrolet Silverado 1500
- 2008 Chevrolet Silverado 1500
- 2009 Chevrolet Silverado 1500
- 2010 Chevrolet Silverado 1500
- 2011 Chevrolet Silverado 1500
- 2012 Chevrolet Silverado 1500
- 2013 Chevrolet Silverado 1500
Chevrolet Silverado 2500
- 1999 Chevrolet Silverado 2500
- 2000 Chevrolet Silverado 2500
- 2001 Chevrolet Silverado 2500
- 2002 Chevrolet Silverado 2500
- 2003 Chevrolet Silverado 2500
- 2004 Chevrolet Silverado 2500
- 2005 Chevrolet Silverado 2500
- 2006 Chevrolet Silverado 2500
- 2007 Chevrolet Silverado 2500
- 2008 Chevrolet Silverado 2500
- 2009 Chevrolet Silverado 2500
- 2010 Chevrolet Silverado 2500
- 2011 Chevrolet Silverado 2500
- 2012 Chevrolet Silverado 2500
- 2013 Chevrolet Silverado 2500
- 2014 Chevrolet Silverado 2500
- 2015 Chevrolet Silverado 2500
- 2016 Chevrolet Silverado 2500
- 2017 Chevrolet Silverado 2500
- 2018 Chevrolet Silverado 2500
- 2019 Chevrolet Silverado 2500
Chevrolet Silverado 3500
- 2001 Chevrolet Silverado 3500
- 2002 Chevrolet Silverado 3500
- 2003 Chevrolet Silverado 3500
- 2004 Chevrolet Silverado 3500
- 2005 Chevrolet Silverado 3500
- 2006 Chevrolet Silverado 3500
- 2007 Chevrolet Silverado 3500
- 2008 Chevrolet Silverado 3500
- 2009 Chevrolet Silverado 3500
- 2010 Chevrolet Silverado 3500
- 2011 Chevrolet Silverado 3500
- 2012 Chevrolet Silverado 3500
- 2013 Chevrolet Silverado 3500
- 2014 Chevrolet Silverado 3500
- 2015 Chevrolet Silverado 3500
- 2016 Chevrolet Silverado 3500
- 2017 Chevrolet Silverado 3500
- 2018 Chevrolet Silverado 3500
- 2019 Chevrolet Silverado 3500
Chevrolet SS
- 2014 Chevrolet SS
- 2015 Chevrolet SS
- 2016 Chevrolet SS
- 2017 Chevrolet SS
Chevrolet Suburban
- 2000 Chevrolet Suburban
- 2001 Chevrolet Suburban
- 2002 Chevrolet Suburban
- 2003 Chevrolet Suburban
- 2004 Chevrolet Suburban
- 2005 Chevrolet Suburban
- 2006 Chevrolet Suburban
- 2007 Chevrolet Suburban
- 2008 Chevrolet Suburban
- 2009 Chevrolet Suburban
- 2010 Chevrolet Suburban
- 2011 Chevrolet Suburban
- 2012 Chevrolet Suburban
- 2013 Chevrolet Suburban
- 2014 Chevrolet Suburban
- 2016 Chevrolet Suburban
- 2017 Chevrolet Suburban
- 2018 Chevrolet Suburban
- 2019 Chevrolet Suburban
Chevrolet Suburban 2500
- 2000 Chevrolet Suburban 2500
- 2001 Chevrolet Suburban 2500
- 2002 Chevrolet Suburban 2500
- 2003 Chevrolet Suburban 2500
- 2004 Chevrolet Suburban 2500
- 2005 Chevrolet Suburban 2500
- 2006 Chevrolet Suburban 2500
- 2007 Chevrolet Suburban 2500
Chevrolet Tahoe
- 2000 Chevrolet Tahoe
- 2001 Chevrolet Tahoe
- 2002 Chevrolet Tahoe
- 2003 Chevrolet Tahoe
- 2004 Chevrolet Tahoe
- 2005 Chevrolet Tahoe
- 2006 Chevrolet Tahoe
- 2007 Chevrolet Tahoe
- 2008 Chevrolet Tahoe
- 2009 Chevrolet Tahoe
- 2010 Chevrolet Tahoe
- 2011 Chevrolet Tahoe
- 2012 Chevrolet Tahoe
- 2013 Chevrolet Tahoe
- 2014 Chevrolet Tahoe
Chevrolet Trailblazer SS
- 2006 Chevrolet Trailblazer SS
- 2007 Chevrolet Trailblazer SS
- 2008 Chevrolet Trailblazer SS
- 2009 Chevrolet Trailblazer SS
Pontiac Trans Am
- 1998 Pontiac Trans Am
- 1999 Pontiac Trans Am
- 2000 Pontiac Trans Am
- 2001 Pontiac Trans Am
- 2002 Pontiac Trans Am
GMC Yukon
- 1999 GMC Yukon
- 2000 GMC Yukon
- 2001 GMC Yukon
- 2002 GMC Yukon
- 2003 GMC Yukon
- 2004 GMC Yukon
- 2005 GMC Yukon
- 2006 GMC Yukon
- 2007 GMC Yukon
- 2008 GMC Yukon
- 2009 GMC Yukon
- 2010 GMC Yukon
- 2011 GMC Yukon
- 2012 GMC Yukon
- 2013 GMC Yukon
- 2014 GMC Yukon
GMC Yukon XL 2500
- 2000 GMC Yukon XL 2500
- 2001 GMC Yukon XL 2500
- 2002 GMC Yukon XL 2500
- 2003 GMC Yukon XL 2500
- 2004 GMC Yukon XL 2500
- 2005 GMC Yukon XL 2500
- 2006 GMC Yukon XL 2500
Vehicle applications reflect the fitment published by Texas Speed & Performance for this part number. Confirm your engine and cylinder head configuration before ordering.
FAQ
What engines is the Texas Speed Magic Stick 3 cam for?
Texas Speed designed the Magic Stick 3 as a max-effort camshaft for stock-displacement LS engines and lists 5.7L and 6.0L engines as best suited, with Gen III and Gen IV LS families in its fitment filter.
Is the Magic Stick 3 a nitrous camshaft?
Yes. Texas Speed describes the MS3 as an all-out, max-effort nitrous camshaft meant to extract maximum power from a stock-displacement engine, although it also runs naturally aspirated.
What stall converter does the MS3 cam need?
Automatic vehicles must have a stall converter of at least 3,800 rpm. Texas Speed also lists a 3.42 or steeper rear gear for maximum performance with this camshaft.
Will the Magic Stick 3 fit stock untouched heads?
Yes. Texas Speed states there are no piston-to-valve clearance issues on stock untouched heads, but recommends measuring clearance during any camshaft installation.
Can the Magic Stick 3 be daily driven?
Texas Speed does not recommend it for a daily driver, although it can be done with good tuning. It is positioned as a weekend warrior street/strip camshaft with a very aggressive chop.
How does the Magic Stick 3 compare to the Magic Stick 4?
The MS3 is 238/242 with .600" lift on a 112 LSA and needs a 3,800 rpm stall. The MS4 is 239/242 with .649"/.600" lift on a 111.5 LSA, needs a 4,000 rpm stall and is the most powerful LS1 camshaft Texas Speed offers.
