The Texas Speed Dual Spring Cam Package supplies the core parts for a camshaft upgrade on LS3, L92, LSA and L76 rectangular-port engines. It combines your choice of Texas Speed LS3 camshaft with the TSP .660" dual spring kit, built on PAC polished dual springs with retainers, new spring seats and new valve stem seals, plus Texas Speed hardened chromoly pushrods in the length selected at ordering.
The camshaft list runs from the L92 truck cams and Stage 1 through Stage 4 naturally aspirated LS3 grinds to the Honey Badger, Chopacabra, Chop Monster, Bald Eagle, turbo, centrifugal and positive displacement supercharger cams and stroker and 3/4 race grinds. Factory LS3 engines use a single-bolt camshaft; a three-bolt cam can be run with the appropriate 4X three-bolt conversion, offered as an optional timing set. AFM/DOD must be removed on equipped engines, with delete parts sold separately. A tune is required, and an HP Tuners MPVI4 or Throttle Republic tuner with tune can be added.
Specifications
- Application: LS3, L92, LSA and L76 rectangular-port cylinder heads
- Camshaft: Texas Speed LS3 grind selected at ordering
- Valve springs: TSP dual spring kit with PAC polished .660" dual springs (TSP-PACPOL660SPRINGKIT)
- Retainers, spring seats and valve stem seals: Included
- Pushrods: Texas Speed hardened chromoly, length selected at ordering (7.225" to 7.575")
- Camshaft choices include: L92 truck cams 216/228, 220/232 and 224/236; Stage 1 N/A 225/236; Stage 2 N/A 229/244; Stage 3 N/A 231/246; Stage 4 F-35 N/A 235/248; Honey Badger 218/230; LS3 Chopacabra; B.F.D. Chop Monster and Chop Monster Stroker; Cleetus McFarland Bald Eagle N/A and Boost 229/242; Turbo 229/242; Centrifugal Supercharger 227/244; Positive Displacement Supercharger 225/244; Stroker N/A Stage 2 247/259; 3/4 Race
- Camshaft bolt pattern: Factory LS3 is single-bolt; three-bolt cams require a 4X three-bolt conversion (optional 3-bolt timing set offered)
- AFM/DOD: Must be removed when equipped; delete components sold separately
- Optional tuners: HP Tuners MPVI4 or Texas Speed Throttle Republic tuner with tune
- Tuning: Required

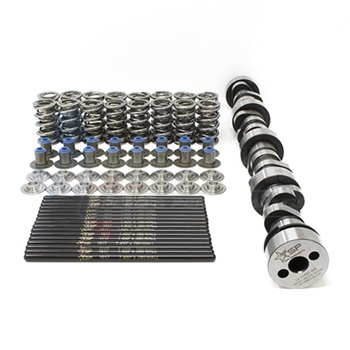

Kit Includes
- Texas Speed LS3 camshaft (selected at ordering)
- TSP dual spring kit with PAC polished .660" dual valve springs (TSP-PACPOL660SPRINGKIT)
- Retainers
- New spring seats
- New valve stem seals
- Texas Speed hardened chromoly pushrods (length selected at ordering)
Ordering Options
Two selections are required when ordering: the camshaft and the pushrod length. Optional add-ons offered by Texas Speed include a camshaft retainer plate and bolts, crankshaft bolt (wet or dry sump, GM or ARP), rocker arm trunnion upgrade kit, 3-bolt timing set with ARP cam bolts, front cover gasket kit, oil pump, pushrod length checker, tuner (HP Tuners MPVI4 or Throttle Republic tuner with tune) and valve spring compressor tool.
Note: Verify the camshaft bolt configuration and AFM/DOD requirements for the specific engine before installation. Factory LS3 engines use a single-bolt cam; a three-bolt cam needs the appropriate 4X three-bolt conversion kit.
Vehicle Applications
Engine families covered per Texas Speed: Gen IV LS 6.0L and 6.2L rectangular-port (LS3, L92, LSA, L76).
Chevrolet Camaro
- 2010 Chevrolet Camaro
- 2011 Chevrolet Camaro
- 2012 Chevrolet Camaro
- 2013 Chevrolet Camaro
- 2014 Chevrolet Camaro
- 2015 Chevrolet Camaro
Chevrolet Corvette
- 2007 Chevrolet Corvette
- 2008 Chevrolet Corvette
- 2009 Chevrolet Corvette
- 2010 Chevrolet Corvette
- 2011 Chevrolet Corvette
- 2012 Chevrolet Corvette
- 2013 Chevrolet Corvette
Cadillac CTS-V
- 2009 Cadillac CTS-V
- 2010 Cadillac CTS-V
- 2011 Cadillac CTS-V
- 2012 Cadillac CTS-V
- 2013 Cadillac CTS-V
- 2014 Cadillac CTS-V
- 2015 Cadillac CTS-V
Cadillac Escalade
- 2008 Cadillac Escalade
- 2009 Cadillac Escalade
- 2010 Cadillac Escalade
- 2011 Cadillac Escalade
- 2012 Cadillac Escalade
- 2013 Cadillac Escalade
- 2014 Cadillac Escalade
Pontiac G8
- 2008 Pontiac G8
- 2009 Pontiac G8
GMC Sierra 1500
- 2007 GMC Sierra 1500
- 2008 GMC Sierra 1500
- 2009 GMC Sierra 1500
- 2010 GMC Sierra 1500
- 2011 GMC Sierra 1500
- 2012 GMC Sierra 1500
- 2013 GMC Sierra 1500
Chevrolet Silverado 1500
- 2007 Chevrolet Silverado 1500
- 2008 Chevrolet Silverado 1500
- 2009 Chevrolet Silverado 1500
- 2010 Chevrolet Silverado 1500
- 2011 Chevrolet Silverado 1500
- 2012 Chevrolet Silverado 1500
- 2013 Chevrolet Silverado 1500
Chevrolet SS
- 2014 Chevrolet SS
- 2015 Chevrolet SS
- 2016 Chevrolet SS
- 2017 Chevrolet SS
Chevrolet Suburban
- 2007 Chevrolet Suburban
- 2008 Chevrolet Suburban
- 2009 Chevrolet Suburban
- 2010 Chevrolet Suburban
- 2011 Chevrolet Suburban
- 2012 Chevrolet Suburban
- 2013 Chevrolet Suburban
- 2014 Chevrolet Suburban
Chevrolet Tahoe
- 2007 Chevrolet Tahoe
- 2008 Chevrolet Tahoe
- 2009 Chevrolet Tahoe
- 2010 Chevrolet Tahoe
- 2011 Chevrolet Tahoe
- 2012 Chevrolet Tahoe
- 2013 Chevrolet Tahoe
- 2014 Chevrolet Tahoe
GMC Yukon
- 2007 GMC Yukon
- 2008 GMC Yukon
- 2009 GMC Yukon
- 2010 GMC Yukon
- 2011 GMC Yukon
- 2012 GMC Yukon
- 2013 GMC Yukon
- 2014 GMC Yukon
Vehicle applications reflect the fitment published by Texas Speed & Performance for this part number. Confirm your engine and cylinder head configuration before ordering.
FAQ
What is included in the Texas Speed Dual Spring Cam Package for LS3 heads?
The package includes your choice of Texas Speed LS3 camshaft, the TSP .660" dual spring kit with PAC polished dual springs, retainers, new spring seats, new valve stem seals and Texas Speed hardened chromoly pushrods in the length selected.
Which engines does this rectangular-port cam package fit?
Texas Speed lists it for LS3, L92, LSA and L76 rectangular-port applications, such as the 2010 to 2015 Camaro SS, 2008 to 2013 Corvette, 2009 to 2015 CTS-V, Pontiac G8, Chevrolet SS and 6.0L and 6.2L rectangular-port GM trucks and SUVs.
Does the Dual Spring Cam Package work on a factory single-bolt LS3 cam?
Yes. Factory LS3 engines use a single-bolt camshaft design. If a three-bolt camshaft is chosen, Texas Speed notes a 4X three-bolt conversion is required and offers a 3-bolt timing set as an add-on.
Do I need to delete AFM or DOD before installing this cam kit?
Yes, on engines equipped with AFM/DOD such as the L99 and some L76 and L92 trucks. Texas Speed states AFM/DOD must be removed and sells the delete components separately.
Why does this kit use .660" dual springs?
The PAC polished dual springs in the TSP .660" kit support the higher lift of the Texas Speed LS3 camshaft lineup, many of which run .629" to .649" lift, with margin that single springs do not provide.
Is a tune required after installing the LS3 cam package?
Yes. A custom tune is required after the camshaft swap. Texas Speed offers the HP Tuners MPVI4 or its Throttle Republic tuner, which includes a tune, as optional add-ons.
