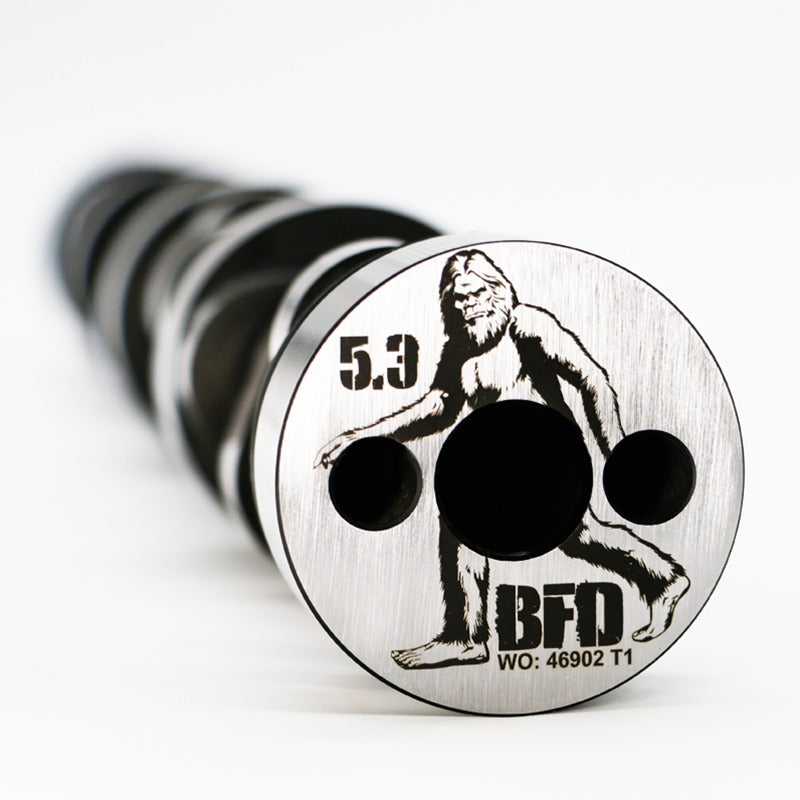

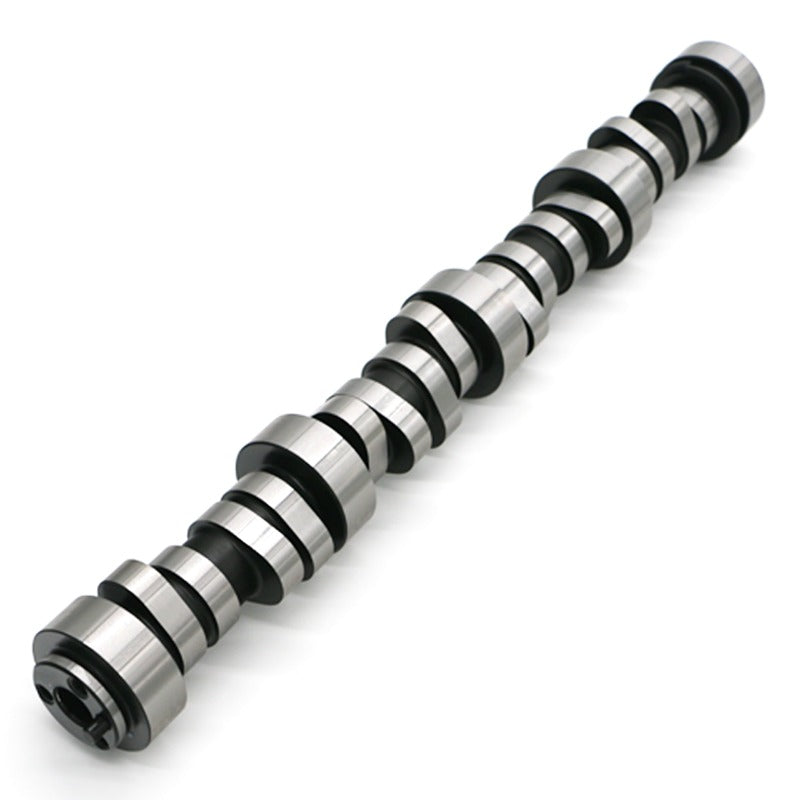

The Texas Speed B.F.D. Chop Monster 5.3L Camshaft brings the B.F.D. series, developed with Zac Mertens, the Chop King from Hoonigan, to the 5.3L LS. Ground on a tight 108 degree lobe separation with a 105 degree intake centerline, it is built to give a naturally aspirated 5.3L the most savage chop possible while still making big power through the curve, and Texas Speed notes it can also be run in 5.7L and 6.0L engines.
Texas Speed estimates a gain of 50 to 55 or more horsepower at a compression ratio of 9.5:1 or higher. TSP/PAC dual valve springs are required, automatics need a 3,200 rpm or higher stall converter, and a 3.23 or steeper rear gear is listed. The operating range is 2,000 to 6,500 rpm. Texas Speed says the cam can be daily driven with a proper tune, with 5.7L and 6.0L engines handling it better than a 5.3L, which may show slight surging at low rpm. A custom tune is required.
Specifications
- Duration at .050": 228/232
- Valve lift: .629"/.600"
- Lobe separation angle: 108 degrees
- Intake centerline: 105 degrees
- Engines: 5.3L, 5.7L and 6.0L LS (5.3L primary)
- Application: Naturally aspirated
- Recommended compression ratio: 9.5:1 or higher
- Recommended valve springs: TSP/PAC dual valve springs (upgraded springs required)
- Aftermarket stall converter required: Yes, 3,200 rpm or higher
- Upgraded rear gear: 3.23 or steeper
- Operating range: 2,000 to 6,500 rpm
- Estimated power increase: 50-55+ hp
- Drivability: Can be daily driven with a proper tune; 5.3L engines may surge slightly at low rpm
- Vehicle usage: Street performance, mid-range
- Chop level: Very aggressive
Vehicle Applications
Engine families covered per Texas Speed: Gen III and Gen IV LS 4.8L, 5.3L, 5.7L, 6.0L and 6.2L families in TSP's filter, with 5.3L, 5.7L and 6.0L named as the engines best suited.
Chevrolet Camaro
- 1998 Chevrolet Camaro
- 1999 Chevrolet Camaro
- 2000 Chevrolet Camaro
- 2001 Chevrolet Camaro
- 2002 Chevrolet Camaro
Chevrolet Colorado
- 2009 Chevrolet Colorado
- 2010 Chevrolet Colorado
- 2011 Chevrolet Colorado
- 2012 Chevrolet Colorado
Chevrolet Corvette
- 1997 Chevrolet Corvette
- 1998 Chevrolet Corvette
- 1999 Chevrolet Corvette
- 2000 Chevrolet Corvette
- 2001 Chevrolet Corvette
- 2002 Chevrolet Corvette
- 2003 Chevrolet Corvette
- 2004 Chevrolet Corvette
- 2005 Chevrolet Corvette
- 2006 Chevrolet Corvette
- 2007 Chevrolet Corvette
Cadillac CTS-V
- 2004 Cadillac CTS-V
- 2005 Cadillac CTS-V
- 2006 Cadillac CTS-V
- 2007 Cadillac CTS-V
Cadillac Escalade
- 2002 Cadillac Escalade
- 2003 Cadillac Escalade
- 2004 Cadillac Escalade
- 2005 Cadillac Escalade
- 2006 Cadillac Escalade
- 2009 Cadillac Escalade
- 2010 Cadillac Escalade
- 2011 Cadillac Escalade
- 2012 Cadillac Escalade
- 2013 Cadillac Escalade
Pontiac Firebird
- 1998 Pontiac Firebird
- 1999 Pontiac Firebird
- 2000 Pontiac Firebird
- 2001 Pontiac Firebird
- 2002 Pontiac Firebird
Pontiac Firebird Formula
- 1998 Pontiac Firebird Formula
- 1999 Pontiac Firebird Formula
- 2000 Pontiac Firebird Formula
- 2001 Pontiac Firebird Formula
- 2002 Pontiac Firebird Formula
Pontiac G8
- 2008 Pontiac G8
- 2009 Pontiac G8
Pontiac Grand Prix
- 2005 Pontiac Grand Prix
- 2006 Pontiac Grand Prix
- 2007 Pontiac Grand Prix
- 2008 Pontiac Grand Prix
Pontiac GTO
- 2004 Pontiac GTO
- 2005 Pontiac GTO
- 2006 Pontiac GTO
Chevrolet Impala SS
- 2006 Chevrolet Impala SS
- 2007 Chevrolet Impala SS
- 2008 Chevrolet Impala SS
- 2009 Chevrolet Impala SS
Chevrolet Monte Carlo
- 2006 Chevrolet Monte Carlo
- 2007 Chevrolet Monte Carlo
GMC Sierra 1500
- 1999 GMC Sierra 1500
- 2000 GMC Sierra 1500
- 2001 GMC Sierra 1500
- 2002 GMC Sierra 1500
- 2003 GMC Sierra 1500
- 2004 GMC Sierra 1500
- 2005 GMC Sierra 1500
- 2006 GMC Sierra 1500
- 2007 GMC Sierra 1500
- 2008 GMC Sierra 1500
- 2009 GMC Sierra 1500
- 2010 GMC Sierra 1500
- 2011 GMC Sierra 1500
- 2012 GMC Sierra 1500
- 2013 GMC Sierra 1500
GMC Sierra 2500
- 2001 GMC Sierra 2500
- 2002 GMC Sierra 2500
- 2003 GMC Sierra 2500
- 2004 GMC Sierra 2500
- 2005 GMC Sierra 2500
- 2006 GMC Sierra 2500
- 2007 GMC Sierra 2500
- 2009 GMC Sierra 2500
- 2010 GMC Sierra 2500
- 2011 GMC Sierra 2500
- 2012 GMC Sierra 2500
- 2013 GMC Sierra 2500
- 2014 GMC Sierra 2500
- 2015 GMC Sierra 2500
- 2016 GMC Sierra 2500
- 2017 GMC Sierra 2500
- 2018 GMC Sierra 2500
- 2019 GMC Sierra 2500
GMC Sierra 3500
- 2001 GMC Sierra 3500
- 2002 GMC Sierra 3500
- 2003 GMC Sierra 3500
- 2004 GMC Sierra 3500
- 2005 GMC Sierra 3500
- 2006 GMC Sierra 3500
- 2009 GMC Sierra 3500
- 2010 GMC Sierra 3500
- 2011 GMC Sierra 3500
- 2012 GMC Sierra 3500
- 2013 GMC Sierra 3500
- 2014 GMC Sierra 3500
- 2015 GMC Sierra 3500
- 2016 GMC Sierra 3500
- 2017 GMC Sierra 3500
- 2018 GMC Sierra 3500
- 2019 GMC Sierra 3500
Chevrolet Silverado 1500
- 1999 Chevrolet Silverado 1500
- 2000 Chevrolet Silverado 1500
- 2001 Chevrolet Silverado 1500
- 2002 Chevrolet Silverado 1500
- 2003 Chevrolet Silverado 1500
- 2004 Chevrolet Silverado 1500
- 2005 Chevrolet Silverado 1500
- 2006 Chevrolet Silverado 1500
- 2007 Chevrolet Silverado 1500
- 2008 Chevrolet Silverado 1500
- 2009 Chevrolet Silverado 1500
- 2010 Chevrolet Silverado 1500
- 2011 Chevrolet Silverado 1500
- 2012 Chevrolet Silverado 1500
- 2013 Chevrolet Silverado 1500
Chevrolet Silverado 2500
- 1999 Chevrolet Silverado 2500
- 2000 Chevrolet Silverado 2500
- 2001 Chevrolet Silverado 2500
- 2002 Chevrolet Silverado 2500
- 2003 Chevrolet Silverado 2500
- 2004 Chevrolet Silverado 2500
- 2005 Chevrolet Silverado 2500
- 2006 Chevrolet Silverado 2500
- 2007 Chevrolet Silverado 2500
- 2008 Chevrolet Silverado 2500
- 2009 Chevrolet Silverado 2500
- 2010 Chevrolet Silverado 2500
- 2011 Chevrolet Silverado 2500
- 2012 Chevrolet Silverado 2500
- 2013 Chevrolet Silverado 2500
- 2014 Chevrolet Silverado 2500
- 2015 Chevrolet Silverado 2500
- 2016 Chevrolet Silverado 2500
- 2017 Chevrolet Silverado 2500
- 2018 Chevrolet Silverado 2500
- 2019 Chevrolet Silverado 2500
Chevrolet Silverado 3500
- 2001 Chevrolet Silverado 3500
- 2002 Chevrolet Silverado 3500
- 2003 Chevrolet Silverado 3500
- 2004 Chevrolet Silverado 3500
- 2005 Chevrolet Silverado 3500
- 2006 Chevrolet Silverado 3500
- 2007 Chevrolet Silverado 3500
- 2008 Chevrolet Silverado 3500
- 2009 Chevrolet Silverado 3500
- 2010 Chevrolet Silverado 3500
- 2011 Chevrolet Silverado 3500
- 2012 Chevrolet Silverado 3500
- 2013 Chevrolet Silverado 3500
- 2014 Chevrolet Silverado 3500
- 2015 Chevrolet Silverado 3500
- 2016 Chevrolet Silverado 3500
- 2017 Chevrolet Silverado 3500
- 2018 Chevrolet Silverado 3500
- 2019 Chevrolet Silverado 3500
Chevrolet Suburban
- 2000 Chevrolet Suburban
- 2001 Chevrolet Suburban
- 2002 Chevrolet Suburban
- 2003 Chevrolet Suburban
- 2004 Chevrolet Suburban
- 2005 Chevrolet Suburban
- 2006 Chevrolet Suburban
- 2007 Chevrolet Suburban
- 2008 Chevrolet Suburban
- 2009 Chevrolet Suburban
- 2010 Chevrolet Suburban
- 2011 Chevrolet Suburban
- 2012 Chevrolet Suburban
- 2013 Chevrolet Suburban
- 2014 Chevrolet Suburban
- 2016 Chevrolet Suburban
- 2017 Chevrolet Suburban
- 2018 Chevrolet Suburban
- 2019 Chevrolet Suburban
Chevrolet Suburban 2500
- 2000 Chevrolet Suburban 2500
- 2001 Chevrolet Suburban 2500
- 2002 Chevrolet Suburban 2500
- 2003 Chevrolet Suburban 2500
- 2004 Chevrolet Suburban 2500
- 2005 Chevrolet Suburban 2500
- 2006 Chevrolet Suburban 2500
- 2007 Chevrolet Suburban 2500
Chevrolet Tahoe
- 2000 Chevrolet Tahoe
- 2001 Chevrolet Tahoe
- 2002 Chevrolet Tahoe
- 2003 Chevrolet Tahoe
- 2004 Chevrolet Tahoe
- 2005 Chevrolet Tahoe
- 2006 Chevrolet Tahoe
- 2007 Chevrolet Tahoe
- 2008 Chevrolet Tahoe
- 2009 Chevrolet Tahoe
- 2010 Chevrolet Tahoe
- 2011 Chevrolet Tahoe
- 2012 Chevrolet Tahoe
- 2013 Chevrolet Tahoe
- 2014 Chevrolet Tahoe
Chevrolet Trailblazer SS
- 2006 Chevrolet Trailblazer SS
- 2007 Chevrolet Trailblazer SS
- 2008 Chevrolet Trailblazer SS
- 2009 Chevrolet Trailblazer SS
Pontiac Trans Am
- 1998 Pontiac Trans Am
- 1999 Pontiac Trans Am
- 2000 Pontiac Trans Am
- 2001 Pontiac Trans Am
- 2002 Pontiac Trans Am
GMC Yukon
- 1999 GMC Yukon
- 2000 GMC Yukon
- 2001 GMC Yukon
- 2002 GMC Yukon
- 2003 GMC Yukon
- 2004 GMC Yukon
- 2005 GMC Yukon
- 2006 GMC Yukon
- 2007 GMC Yukon
- 2008 GMC Yukon
- 2009 GMC Yukon
- 2010 GMC Yukon
- 2011 GMC Yukon
- 2012 GMC Yukon
- 2013 GMC Yukon
- 2014 GMC Yukon
GMC Yukon XL 2500
- 2000 GMC Yukon XL 2500
- 2001 GMC Yukon XL 2500
- 2002 GMC Yukon XL 2500
- 2003 GMC Yukon XL 2500
- 2004 GMC Yukon XL 2500
- 2005 GMC Yukon XL 2500
- 2006 GMC Yukon XL 2500
Vehicle applications reflect the fitment published by Texas Speed & Performance for this part number. Confirm your engine and cylinder head configuration before ordering.
FAQ
What engines does the Texas Speed B.F.D. Chop Monster 5.3L cam fit?
It is designed first for the 5.3L LS found in 1999 to 2013 GM trucks and SUVs, and Texas Speed says it can also be run in 5.7L and 6.0L LS engines. 5.7L and 6.0L engines handle the cam better than a 5.3L.
Can the B.F.D. 5.3L cam be daily driven?
Texas Speed says it can be daily driven with a proper tune. A 5.3L may show slight surging in the lower rpm range, while 5.7L and 6.0L engines handle the 108 LSA grind more easily.
Do I need a stall converter with the Chop Monster 5.3L cam?
Yes. Texas Speed requires a stall converter of 3,200 rpm or higher in automatic vehicles and lists a 3.23 or steeper rear gear for this camshaft.
What valve springs does the B.F.D. 5.3L camshaft require?
Upgraded springs are required. Texas Speed specifies TSP/PAC dual valve springs to control the .629" intake lift and the aggressive lobes of this grind.
How much power does the B.F.D. Chop Monster 5.3L cam add?
Texas Speed estimates a gain of 50 to 55 or more horsepower on a naturally aspirated engine with a compression ratio of 9.5:1 or higher. Actual gains depend on heads, intake, exhaust and tuning.
How does the B.F.D. 5.3L cam differ from the B.F.D. LS3 cam?
The 5.3L version is 228/232 with .629"/.600" lift on a 108 LSA, sized for 5.3L, 5.7L and 6.0L engines. The B.F.D. LS3 is a larger 229/246 grind on a 110 LSA for 6.0L and 6.2L engines with rectangular-port heads.
