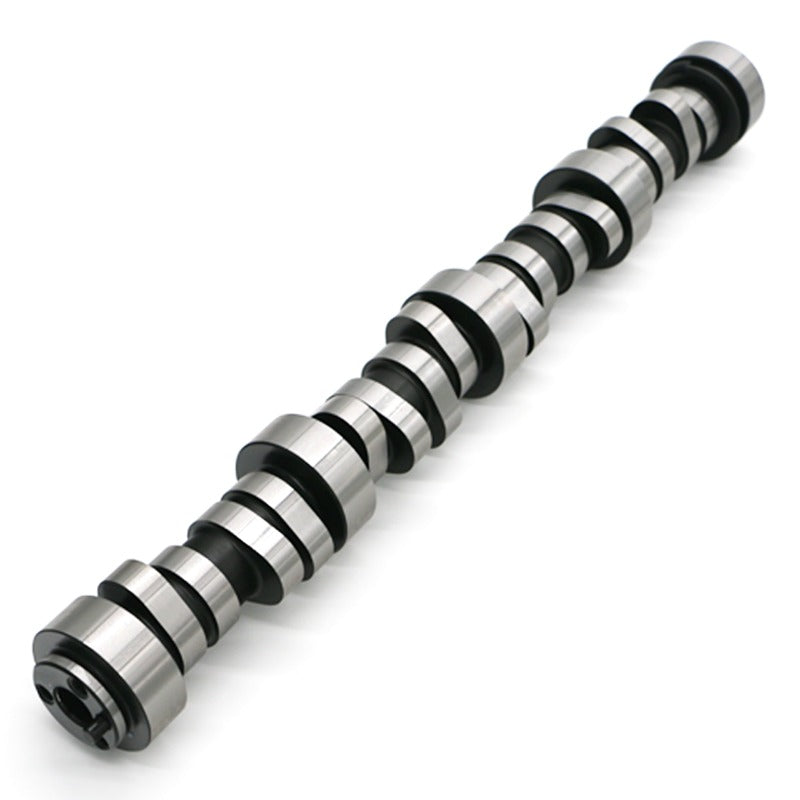

The Texas Speed 6.2 LS Chopacabra Camshaft is the Max Chop Edition of the Chopacabra line, ground for stock 6.0L and 6.2L LS engines with LS3 and L92 style rectangular-port cylinder heads. Texas Speed built it around maximum overlap and a tight 108 degree lobe separation angle to produce the loudest idle it could while keeping lift moderate and adding solid midrange power.

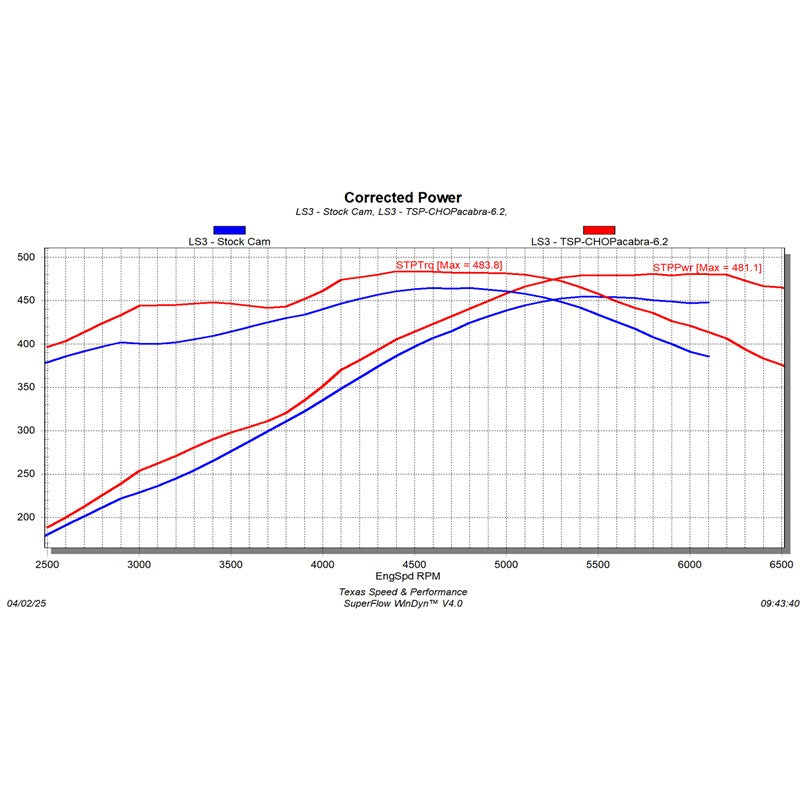

Because lift stays at .550", the cam only requires LS6-style valve springs or better and is designed to run on stock-length pushrods, though Texas Speed advises checking pushrod length during installation. It works with a stock torque converter, with a 2,600 rpm or higher stall recommended for best performance. Texas Speed's published dyno graph was recorded on a 370 cubic inch LQ4-based engine at 10:1 compression with stock L92 heads, LS6-style springs, a stock L92/LS3 intake and 93 octane pump gas.
Specifications
- Duration at .050": 216/230
- Valve lift: .550"/.550"
- Lobe separation angle: 108 degrees
- Intake centerline: 106 degrees (108+2)
- Overlap: Maximum, built for sound
- Engines: Stock 6.0L and 6.2L LS-based engines with LS3/L92-style rectangular-port cylinder heads
- Required valve springs: LS6-style springs or better (upgraded springs required)
- Pushrods: Designed for stock pushrods; check pushrod length during installation
- Torque converter: Works with stock converter; 2,600 rpm or higher stall recommended for best performance
- Vehicle usage: Street performance, mid-range
- Chop level: Choppy
- Dyno test engine: 370 CID LQ4-based build, 10:1 compression, stock L92 heads, LS6-style springs, stock L92/LS3 intake, 93 octane pump gas
Note: Pushrod length should always be checked during installation even though this camshaft is designed for stock pushrods.
Vehicle Applications
Engine families covered per Texas Speed: 6.0L and 6.2L LS with LS3/L92-style rectangular-port cylinder heads. Vehicle list below is limited to 2007 and later rectangular-port applications.
Chevrolet Camaro
- 2010 Chevrolet Camaro
- 2011 Chevrolet Camaro
- 2012 Chevrolet Camaro
- 2013 Chevrolet Camaro
- 2014 Chevrolet Camaro
- 2015 Chevrolet Camaro
Chevrolet Corvette
- 2007 Chevrolet Corvette
- 2008 Chevrolet Corvette
- 2009 Chevrolet Corvette
- 2010 Chevrolet Corvette
- 2011 Chevrolet Corvette
- 2012 Chevrolet Corvette
- 2013 Chevrolet Corvette
Cadillac CTS
- 2009 Cadillac CTS
- 2010 Cadillac CTS
- 2011 Cadillac CTS
- 2012 Cadillac CTS
- 2013 Cadillac CTS
- 2014 Cadillac CTS
- 2015 Cadillac CTS
Cadillac CTS-V
- 2007 Cadillac CTS-V
- 2008 Cadillac CTS-V
- 2009 Cadillac CTS-V
- 2010 Cadillac CTS-V
- 2011 Cadillac CTS-V
- 2012 Cadillac CTS-V
- 2013 Cadillac CTS-V
- 2014 Cadillac CTS-V
- 2015 Cadillac CTS-V
Cadillac Escalade
- 2008 Cadillac Escalade
- 2009 Cadillac Escalade
- 2010 Cadillac Escalade
- 2011 Cadillac Escalade
- 2012 Cadillac Escalade
- 2013 Cadillac Escalade
- 2014 Cadillac Escalade
Pontiac G8
- 2008 Pontiac G8
- 2009 Pontiac G8
GMC Sierra 1500
- 2007 GMC Sierra 1500
- 2008 GMC Sierra 1500
- 2009 GMC Sierra 1500
- 2010 GMC Sierra 1500
- 2011 GMC Sierra 1500
- 2012 GMC Sierra 1500
- 2013 GMC Sierra 1500
GMC Sierra 2500
- 2007 GMC Sierra 2500
- 2009 GMC Sierra 2500
- 2010 GMC Sierra 2500
- 2011 GMC Sierra 2500
- 2012 GMC Sierra 2500
- 2013 GMC Sierra 2500
- 2014 GMC Sierra 2500
- 2015 GMC Sierra 2500
- 2016 GMC Sierra 2500
- 2017 GMC Sierra 2500
- 2018 GMC Sierra 2500
- 2019 GMC Sierra 2500
GMC Sierra 3500
- 2009 GMC Sierra 3500
- 2010 GMC Sierra 3500
- 2011 GMC Sierra 3500
- 2012 GMC Sierra 3500
- 2013 GMC Sierra 3500
- 2014 GMC Sierra 3500
- 2015 GMC Sierra 3500
- 2016 GMC Sierra 3500
- 2017 GMC Sierra 3500
- 2018 GMC Sierra 3500
- 2019 GMC Sierra 3500
Chevrolet Silverado 1500
- 2007 Chevrolet Silverado 1500
- 2008 Chevrolet Silverado 1500
- 2009 Chevrolet Silverado 1500
- 2010 Chevrolet Silverado 1500
- 2011 Chevrolet Silverado 1500
- 2012 Chevrolet Silverado 1500
- 2013 Chevrolet Silverado 1500
Chevrolet Silverado 2500
- 2007 Chevrolet Silverado 2500
- 2008 Chevrolet Silverado 2500
- 2009 Chevrolet Silverado 2500
- 2010 Chevrolet Silverado 2500
- 2011 Chevrolet Silverado 2500
- 2012 Chevrolet Silverado 2500
- 2013 Chevrolet Silverado 2500
- 2014 Chevrolet Silverado 2500
- 2015 Chevrolet Silverado 2500
- 2016 Chevrolet Silverado 2500
- 2017 Chevrolet Silverado 2500
- 2018 Chevrolet Silverado 2500
- 2019 Chevrolet Silverado 2500
Chevrolet Silverado 3500
- 2007 Chevrolet Silverado 3500
- 2008 Chevrolet Silverado 3500
- 2009 Chevrolet Silverado 3500
- 2010 Chevrolet Silverado 3500
- 2011 Chevrolet Silverado 3500
- 2012 Chevrolet Silverado 3500
- 2013 Chevrolet Silverado 3500
- 2014 Chevrolet Silverado 3500
- 2015 Chevrolet Silverado 3500
- 2016 Chevrolet Silverado 3500
- 2017 Chevrolet Silverado 3500
- 2018 Chevrolet Silverado 3500
- 2019 Chevrolet Silverado 3500
Chevrolet SS
- 2014 Chevrolet SS
- 2015 Chevrolet SS
- 2016 Chevrolet SS
- 2017 Chevrolet SS
Chevrolet Suburban
- 2007 Chevrolet Suburban
- 2008 Chevrolet Suburban
- 2009 Chevrolet Suburban
- 2010 Chevrolet Suburban
- 2011 Chevrolet Suburban
- 2012 Chevrolet Suburban
- 2013 Chevrolet Suburban
- 2014 Chevrolet Suburban
- 2016 Chevrolet Suburban
- 2017 Chevrolet Suburban
- 2018 Chevrolet Suburban
- 2019 Chevrolet Suburban
Chevrolet Suburban 2500
- 2007 Chevrolet Suburban 2500
Chevrolet Tahoe
- 2007 Chevrolet Tahoe
- 2008 Chevrolet Tahoe
- 2009 Chevrolet Tahoe
- 2010 Chevrolet Tahoe
- 2011 Chevrolet Tahoe
- 2012 Chevrolet Tahoe
- 2013 Chevrolet Tahoe
- 2014 Chevrolet Tahoe
GMC Yukon
- 2007 GMC Yukon
- 2008 GMC Yukon
- 2009 GMC Yukon
- 2010 GMC Yukon
- 2011 GMC Yukon
- 2012 GMC Yukon
- 2013 GMC Yukon
- 2014 GMC Yukon
Vehicle applications reflect the fitment published by Texas Speed & Performance for this part number. Confirm your engine and cylinder head configuration before ordering.
FAQ
What engines does the Texas Speed 6.2 LS Chopacabra cam fit?
The 6.2 LS Chopacabra is ground for stock 6.0L and 6.2L LS-based engines using LS3 or L92 style rectangular-port cylinder heads, such as the LS3, L99, L92, L9H, L76 and L96. It is the rectangular-port counterpart to the cathedral-port Chopacabra truck cam.
Do I need new valve springs for the 6.2 LS Chopacabra?
Yes, upgraded springs are required, but the .550" lift means LS6-style valve springs or better are enough. A dual spring kit is not required for this grind.
Will the 6.2 LS Chopacabra work with my stock torque converter?
Yes. Texas Speed states it works with the stock converter, but recommends a 2,600 rpm or higher stall converter for the best performance from the camshaft.
Do I need new pushrods with this camshaft?
The 6.2 LS Chopacabra is designed to run on stock pushrods. Texas Speed still recommends checking pushrod length during installation, since length can vary with the camshaft core, lifters and heads.
How does the Max Chop Chopacabra differ from the Chopacabra NSR?
Both share 216/230 duration and a 108 degree LSA for rectangular-port 6.0L and 6.2L engines. This Max Chop version uses .550" lift and needs LS6-style springs or better, while the NSR version uses .495" lift so it can run on stock valve springs.
What engine did Texas Speed use for the Chopacabra 6.2 dyno test?
Texas Speed recorded its dyno graph on a 370 cubic inch LQ4-based engine at 10:1 compression with stock L92 cylinder heads, LS6-style springs, a stock L92/LS3 intake manifold and 93 octane pump gas.
