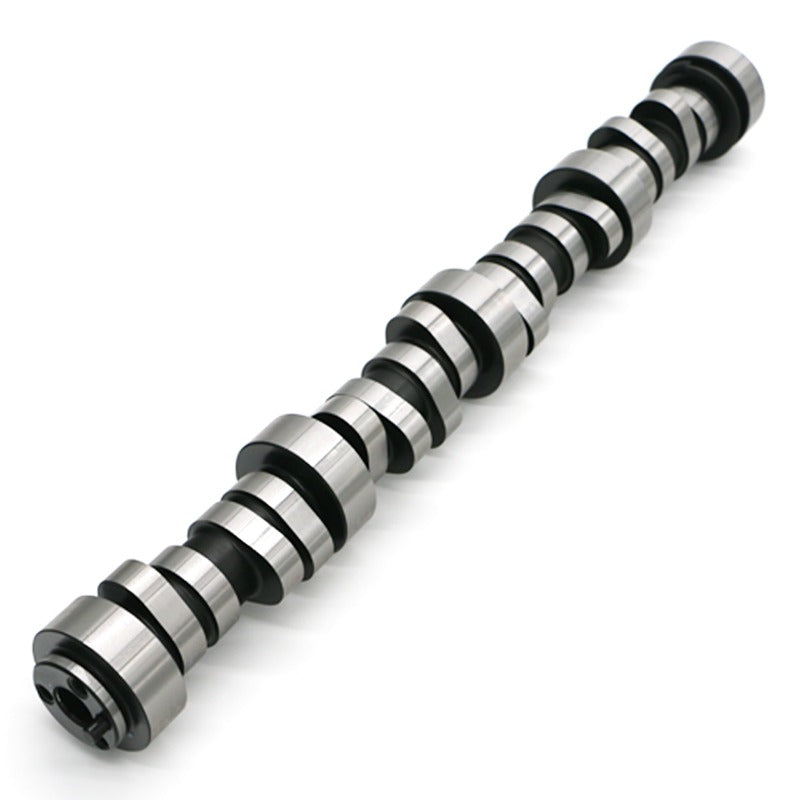

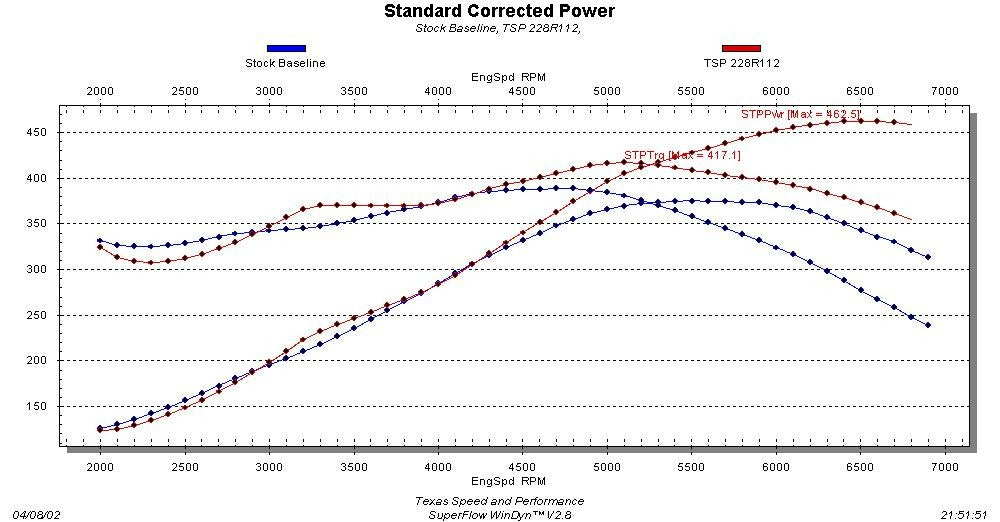

The Texas Speed 228R Camshaft is one of the most popular Texas Speed grinds, aimed at 5.7L and 6.0L LS engines that want strong power delivery while staying a great daily driver once tuned. It makes approximately 5 to 7 more horsepower than the 224R, and Texas Speed's dyno testing shows a solid 45 to 50 rear-wheel horsepower gain.
The cam measures 228/228 duration at .050", .600"/.600" lift and a 112 degree lobe separation angle across a 1,800 to 6,800 rpm operating range. Texas Speed recommends a 10.1:1 or higher compression ratio and PAC 1219 or TSP .660" dual valve springs. Because of its size, a 3,200 rpm or higher stall converter is recommended in automatic cars along with at least a 3.23 rear gear for maximum performance. The cam fits stock untouched heads with no piston-to-valve clearance issues, though measuring is always recommended. Tuning is required in both automatic and manual applications.
Specifications
- Duration at .050": 228/228
- Valve lift: .600"/.600"
- Lobe separation angle: 112 degrees
- Engines best suited for: 5.7L and 6.0L LS
- Desired compression ratio: 10.1:1 or higher
- Recommended valve springs: PAC 1219 or TSP .660" dual valve springs (upgraded springs required)
- Aftermarket stall converter required: Yes, 3,200+ rpm
- Upgraded rear gear required: No, but a minimum 3.23 is recommended for automatics for maximum performance
- Operating range: 1,800 to 6,800 rpm
- Estimated power increase: 45 to 50+ rwhp
- Fits stock untouched heads: Yes, no piston-to-valve clearance issues (measuring recommended)
- Drivability per Texas Speed: Great daily driver cam once properly tuned
- Vehicle usage: Street performance, mid-range
- Chop level: Choppy
Vehicle Applications
Engine families covered per Texas Speed: best suited for 5.7L and 6.0L Gen III and Gen IV LS. Vehicle list reflects Texas Speed's published fitment, which also includes 4.8L and 5.3L platforms; confirm your engine and cylinder head configuration.
Chevrolet Camaro
- 1998 Chevrolet Camaro
- 1999 Chevrolet Camaro
- 2000 Chevrolet Camaro
- 2001 Chevrolet Camaro
- 2002 Chevrolet Camaro
- 2010 Chevrolet Camaro
- 2011 Chevrolet Camaro
- 2012 Chevrolet Camaro
- 2013 Chevrolet Camaro
- 2014 Chevrolet Camaro
- 2015 Chevrolet Camaro
Chevrolet Corvette
- 1997 Chevrolet Corvette
- 1998 Chevrolet Corvette
- 1999 Chevrolet Corvette
- 2000 Chevrolet Corvette
- 2001 Chevrolet Corvette
- 2002 Chevrolet Corvette
- 2003 Chevrolet Corvette
- 2004 Chevrolet Corvette
- 2005 Chevrolet Corvette
- 2006 Chevrolet Corvette
- 2007 Chevrolet Corvette
- 2008 Chevrolet Corvette
- 2009 Chevrolet Corvette
- 2010 Chevrolet Corvette
- 2011 Chevrolet Corvette
- 2012 Chevrolet Corvette
- 2013 Chevrolet Corvette
Cadillac CTS-V
- 2004 Cadillac CTS-V
- 2005 Cadillac CTS-V
- 2006 Cadillac CTS-V
- 2007 Cadillac CTS-V
- 2008 Cadillac CTS-V
- 2009 Cadillac CTS-V
- 2010 Cadillac CTS-V
- 2011 Cadillac CTS-V
- 2012 Cadillac CTS-V
- 2013 Cadillac CTS-V
- 2014 Cadillac CTS-V
- 2015 Cadillac CTS-V
Cadillac Escalade
- 2002 Cadillac Escalade
- 2003 Cadillac Escalade
- 2004 Cadillac Escalade
- 2005 Cadillac Escalade
- 2006 Cadillac Escalade
- 2008 Cadillac Escalade
- 2009 Cadillac Escalade
- 2010 Cadillac Escalade
- 2011 Cadillac Escalade
- 2012 Cadillac Escalade
- 2013 Cadillac Escalade
- 2014 Cadillac Escalade
Pontiac Firebird
- 1998 Pontiac Firebird
- 1999 Pontiac Firebird
- 2000 Pontiac Firebird
- 2001 Pontiac Firebird
- 2002 Pontiac Firebird
Pontiac Firebird Formula
- 1998 Pontiac Firebird Formula
- 1999 Pontiac Firebird Formula
- 2000 Pontiac Firebird Formula
- 2001 Pontiac Firebird Formula
- 2002 Pontiac Firebird Formula
Pontiac G8
- 2008 Pontiac G8
- 2009 Pontiac G8
Pontiac GTO
- 2004 Pontiac GTO
- 2005 Pontiac GTO
- 2006 Pontiac GTO
GMC Sierra 1500
- 1999 GMC Sierra 1500
- 2000 GMC Sierra 1500
- 2001 GMC Sierra 1500
- 2002 GMC Sierra 1500
- 2003 GMC Sierra 1500
- 2004 GMC Sierra 1500
- 2005 GMC Sierra 1500
- 2006 GMC Sierra 1500
- 2007 GMC Sierra 1500
- 2008 GMC Sierra 1500
- 2009 GMC Sierra 1500
- 2010 GMC Sierra 1500
- 2011 GMC Sierra 1500
- 2012 GMC Sierra 1500
- 2013 GMC Sierra 1500
GMC Sierra 2500
- 2001 GMC Sierra 2500
- 2002 GMC Sierra 2500
- 2003 GMC Sierra 2500
- 2004 GMC Sierra 2500
- 2005 GMC Sierra 2500
- 2006 GMC Sierra 2500
- 2007 GMC Sierra 2500
- 2009 GMC Sierra 2500
- 2010 GMC Sierra 2500
- 2011 GMC Sierra 2500
- 2012 GMC Sierra 2500
- 2013 GMC Sierra 2500
- 2014 GMC Sierra 2500
- 2015 GMC Sierra 2500
- 2016 GMC Sierra 2500
- 2017 GMC Sierra 2500
- 2018 GMC Sierra 2500
- 2019 GMC Sierra 2500
GMC Sierra 3500
- 2001 GMC Sierra 3500
- 2002 GMC Sierra 3500
- 2003 GMC Sierra 3500
- 2004 GMC Sierra 3500
- 2005 GMC Sierra 3500
- 2006 GMC Sierra 3500
- 2009 GMC Sierra 3500
- 2010 GMC Sierra 3500
- 2011 GMC Sierra 3500
- 2012 GMC Sierra 3500
- 2013 GMC Sierra 3500
- 2014 GMC Sierra 3500
- 2015 GMC Sierra 3500
- 2016 GMC Sierra 3500
- 2017 GMC Sierra 3500
- 2018 GMC Sierra 3500
- 2019 GMC Sierra 3500
Chevrolet Silverado 1500
- 1999 Chevrolet Silverado 1500
- 2000 Chevrolet Silverado 1500
- 2001 Chevrolet Silverado 1500
- 2002 Chevrolet Silverado 1500
- 2003 Chevrolet Silverado 1500
- 2004 Chevrolet Silverado 1500
- 2005 Chevrolet Silverado 1500
- 2006 Chevrolet Silverado 1500
- 2007 Chevrolet Silverado 1500
- 2008 Chevrolet Silverado 1500
- 2009 Chevrolet Silverado 1500
- 2010 Chevrolet Silverado 1500
- 2011 Chevrolet Silverado 1500
- 2012 Chevrolet Silverado 1500
- 2013 Chevrolet Silverado 1500
Chevrolet Silverado 2500
- 1999 Chevrolet Silverado 2500
- 2000 Chevrolet Silverado 2500
- 2001 Chevrolet Silverado 2500
- 2002 Chevrolet Silverado 2500
- 2003 Chevrolet Silverado 2500
- 2004 Chevrolet Silverado 2500
- 2005 Chevrolet Silverado 2500
- 2006 Chevrolet Silverado 2500
- 2007 Chevrolet Silverado 2500
- 2008 Chevrolet Silverado 2500
- 2009 Chevrolet Silverado 2500
- 2010 Chevrolet Silverado 2500
- 2011 Chevrolet Silverado 2500
- 2012 Chevrolet Silverado 2500
- 2013 Chevrolet Silverado 2500
- 2014 Chevrolet Silverado 2500
- 2015 Chevrolet Silverado 2500
- 2016 Chevrolet Silverado 2500
- 2017 Chevrolet Silverado 2500
- 2018 Chevrolet Silverado 2500
- 2019 Chevrolet Silverado 2500
Chevrolet Silverado 3500
- 2001 Chevrolet Silverado 3500
- 2002 Chevrolet Silverado 3500
- 2003 Chevrolet Silverado 3500
- 2004 Chevrolet Silverado 3500
- 2005 Chevrolet Silverado 3500
- 2006 Chevrolet Silverado 3500
- 2007 Chevrolet Silverado 3500
- 2008 Chevrolet Silverado 3500
- 2009 Chevrolet Silverado 3500
- 2010 Chevrolet Silverado 3500
- 2011 Chevrolet Silverado 3500
- 2012 Chevrolet Silverado 3500
- 2013 Chevrolet Silverado 3500
- 2014 Chevrolet Silverado 3500
- 2015 Chevrolet Silverado 3500
- 2016 Chevrolet Silverado 3500
- 2017 Chevrolet Silverado 3500
- 2018 Chevrolet Silverado 3500
- 2019 Chevrolet Silverado 3500
Chevrolet SS
- 2014 Chevrolet SS
- 2015 Chevrolet SS
- 2016 Chevrolet SS
- 2017 Chevrolet SS
Chevrolet Suburban
- 2000 Chevrolet Suburban
- 2001 Chevrolet Suburban
- 2002 Chevrolet Suburban
- 2003 Chevrolet Suburban
- 2004 Chevrolet Suburban
- 2005 Chevrolet Suburban
- 2006 Chevrolet Suburban
- 2007 Chevrolet Suburban
- 2008 Chevrolet Suburban
- 2009 Chevrolet Suburban
- 2010 Chevrolet Suburban
- 2011 Chevrolet Suburban
- 2012 Chevrolet Suburban
- 2013 Chevrolet Suburban
- 2014 Chevrolet Suburban
- 2016 Chevrolet Suburban
- 2017 Chevrolet Suburban
- 2018 Chevrolet Suburban
- 2019 Chevrolet Suburban
Chevrolet Suburban 2500
- 2000 Chevrolet Suburban 2500
- 2001 Chevrolet Suburban 2500
- 2002 Chevrolet Suburban 2500
- 2003 Chevrolet Suburban 2500
- 2004 Chevrolet Suburban 2500
- 2005 Chevrolet Suburban 2500
- 2006 Chevrolet Suburban 2500
- 2007 Chevrolet Suburban 2500
Chevrolet Tahoe
- 2000 Chevrolet Tahoe
- 2001 Chevrolet Tahoe
- 2002 Chevrolet Tahoe
- 2003 Chevrolet Tahoe
- 2004 Chevrolet Tahoe
- 2005 Chevrolet Tahoe
- 2006 Chevrolet Tahoe
- 2007 Chevrolet Tahoe
- 2008 Chevrolet Tahoe
- 2009 Chevrolet Tahoe
- 2010 Chevrolet Tahoe
- 2011 Chevrolet Tahoe
- 2012 Chevrolet Tahoe
- 2013 Chevrolet Tahoe
- 2014 Chevrolet Tahoe
Chevrolet Trailblazer SS
- 2006 Chevrolet Trailblazer SS
- 2007 Chevrolet Trailblazer SS
- 2008 Chevrolet Trailblazer SS
- 2009 Chevrolet Trailblazer SS
Pontiac Trans Am
- 1998 Pontiac Trans Am
- 1999 Pontiac Trans Am
- 2000 Pontiac Trans Am
- 2001 Pontiac Trans Am
- 2002 Pontiac Trans Am
GMC Yukon
- 1999 GMC Yukon
- 2000 GMC Yukon
- 2001 GMC Yukon
- 2002 GMC Yukon
- 2003 GMC Yukon
- 2004 GMC Yukon
- 2005 GMC Yukon
- 2006 GMC Yukon
- 2007 GMC Yukon
- 2008 GMC Yukon
- 2009 GMC Yukon
- 2010 GMC Yukon
- 2011 GMC Yukon
- 2012 GMC Yukon
- 2013 GMC Yukon
- 2014 GMC Yukon
GMC Yukon XL 2500
- 2000 GMC Yukon XL 2500
- 2001 GMC Yukon XL 2500
- 2002 GMC Yukon XL 2500
- 2003 GMC Yukon XL 2500
- 2004 GMC Yukon XL 2500
- 2005 GMC Yukon XL 2500
- 2006 GMC Yukon XL 2500
Vehicle applications reflect the fitment published by Texas Speed & Performance for this part number. Confirm your engine and cylinder head configuration before ordering.
FAQ
What engines does the Texas Speed 228R cam fit?
Texas Speed lists the 228R as best suited for 5.7L and 6.0L LS engines such as the LS1, LS6, LS2 and 6.0L truck engines. Texas Speed's fitment list also covers the 4.8L and 5.3L truck platforms of the same era.
How much power does the 228R camshaft add?
Texas Speed's dyno testing shows a solid 45 to 50 rear-wheel horsepower gain from the 228R, roughly 5 to 7 more horsepower than the 224R camshaft. Results vary with heads, intake, exhaust and tuning.
Do I need a stall converter and rear gear with the 228R?
Texas Speed recommends a 3,200 rpm or higher stall converter in automatic cars. A rear gear change is not required, but at least a 3.23 is recommended for automatics to get the most from the cam.
Will the 228R cam fit stock, untouched cylinder heads?
Yes. Texas Speed states the 228R fits stock untouched heads with no piston-to-valve clearance issues, although measuring clearance is always recommended during any cam installation.
Is the 228R a good daily driver camshaft?
Texas Speed describes the 228R as a very streetable cam that makes a great daily driver once properly tuned, with a choppy idle and a 1,800 to 6,800 rpm operating range. Tuning is required for both automatic and manual cars.
