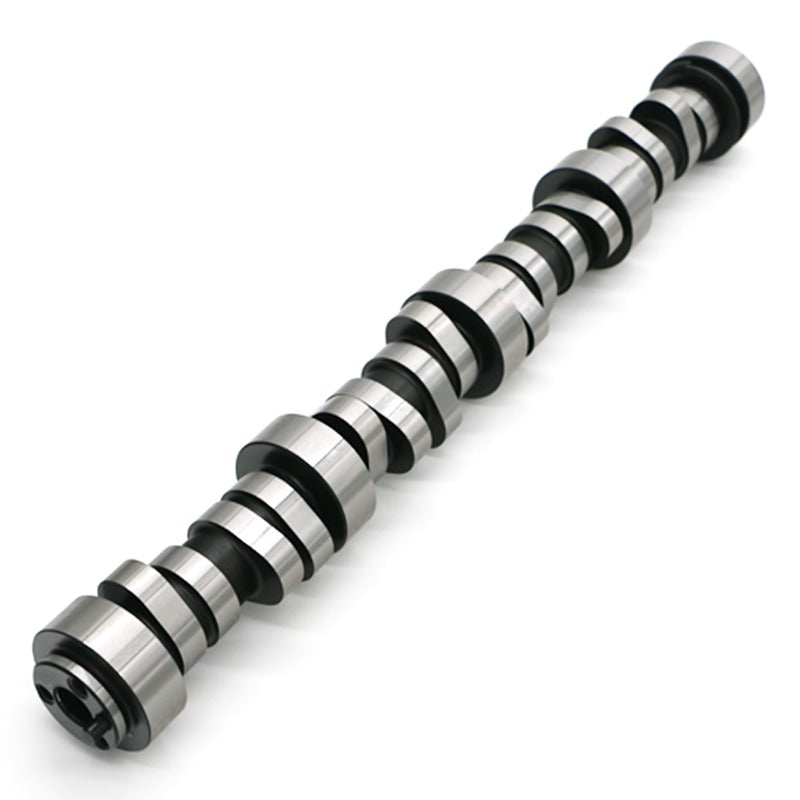

The Texas Speed Cleetus McFarland Bald Eagle LS1/LS2 N/A Camshaft is the naturally aspirated version of the grind Cleetus McFarland runs in Leroy, his C5 Corvette. It is intended for cathedral-port LS engines without a supercharger, with 5.7L and 6.0L engines listed as the best fit, and it carries a little more chop at idle than the boosted Bald Eagle. Texas Speed calls it an easy camshaft to tune with a nice lope at idle.
Texas Speed estimates a gain of 50 to 55 or more horsepower and recommends a compression ratio of 10.1:1 or higher. Automatic vehicles need a stall converter with at least a 2,800 rpm stall speed. A rear gear change is not required, though a 3.23 or steeper gear is recommended for maximum performance. The cam can run on PAC Racing 1219 single beehive springs or the TSP .660" dual spring kit, and a custom tune is required after installation.
Specifications
- Duration at .050": 227/234
- Valve lift: .600"/.600"
- Lobe separation angle: 111 degrees
- Intake centerline: 109 degrees
- Engines: LS1 and LS2 cathedral-port LS, 5.7L and 6.0L best suited
- Application: Naturally aspirated
- Recommended compression ratio: 10.1:1 or higher
- Recommended valve springs: PAC Racing 1219 beehive or TSP .660" dual spring kit (upgraded springs required)
- Aftermarket stall converter required: Yes, 2,800 rpm or higher
- Upgraded rear gear required: No, 3.23 or steeper recommended for maximum performance
- Operating range: 2,000 to 6,600 rpm
- Estimated power increase: 50-55+ hp
- Vehicle usage: Street performance, mid-range
- Chop level: Mild chop
Vehicle Applications
Engine families covered per Texas Speed: Gen III and Gen IV LS 4.8L, 5.3L, 5.7L and 6.0L with cathedral-port cylinder heads; 5.7L and 6.0L are listed as best suited.
Chevrolet Camaro
- 1998 Chevrolet Camaro
- 1999 Chevrolet Camaro
- 2000 Chevrolet Camaro
- 2001 Chevrolet Camaro
- 2002 Chevrolet Camaro
Chevrolet Corvette
- 1997 Chevrolet Corvette
- 1998 Chevrolet Corvette
- 1999 Chevrolet Corvette
- 2000 Chevrolet Corvette
- 2001 Chevrolet Corvette
- 2002 Chevrolet Corvette
- 2003 Chevrolet Corvette
- 2004 Chevrolet Corvette
- 2005 Chevrolet Corvette
- 2006 Chevrolet Corvette
- 2007 Chevrolet Corvette
Cadillac CTS-V
- 2004 Cadillac CTS-V
- 2005 Cadillac CTS-V
- 2006 Cadillac CTS-V
- 2007 Cadillac CTS-V
Cadillac Escalade
- 2002 Cadillac Escalade
- 2003 Cadillac Escalade
- 2004 Cadillac Escalade
- 2005 Cadillac Escalade
- 2006 Cadillac Escalade
- 2008 Cadillac Escalade
- 2009 Cadillac Escalade
- 2010 Cadillac Escalade
- 2011 Cadillac Escalade
- 2012 Cadillac Escalade
- 2013 Cadillac Escalade
- 2014 Cadillac Escalade
Pontiac Firebird
- 1998 Pontiac Firebird
- 1999 Pontiac Firebird
- 2000 Pontiac Firebird
- 2001 Pontiac Firebird
- 2002 Pontiac Firebird
Pontiac Firebird Formula
- 1998 Pontiac Firebird Formula
- 1999 Pontiac Firebird Formula
- 2000 Pontiac Firebird Formula
- 2001 Pontiac Firebird Formula
- 2002 Pontiac Firebird Formula
Pontiac GTO
- 2004 Pontiac GTO
- 2005 Pontiac GTO
- 2006 Pontiac GTO
GMC Sierra 1500
- 1999 GMC Sierra 1500
- 2000 GMC Sierra 1500
- 2001 GMC Sierra 1500
- 2002 GMC Sierra 1500
- 2003 GMC Sierra 1500
- 2004 GMC Sierra 1500
- 2005 GMC Sierra 1500
- 2006 GMC Sierra 1500
- 2007 GMC Sierra 1500
- 2008 GMC Sierra 1500
- 2009 GMC Sierra 1500
- 2010 GMC Sierra 1500
- 2011 GMC Sierra 1500
- 2012 GMC Sierra 1500
- 2013 GMC Sierra 1500
GMC Sierra 2500
- 2001 GMC Sierra 2500
- 2002 GMC Sierra 2500
- 2003 GMC Sierra 2500
- 2004 GMC Sierra 2500
- 2005 GMC Sierra 2500
- 2006 GMC Sierra 2500
- 2007 GMC Sierra 2500
GMC Sierra 3500
- 2001 GMC Sierra 3500
- 2002 GMC Sierra 3500
- 2003 GMC Sierra 3500
- 2004 GMC Sierra 3500
- 2005 GMC Sierra 3500
- 2006 GMC Sierra 3500
Chevrolet Silverado 1500
- 1999 Chevrolet Silverado 1500
- 2000 Chevrolet Silverado 1500
- 2001 Chevrolet Silverado 1500
- 2002 Chevrolet Silverado 1500
- 2003 Chevrolet Silverado 1500
- 2004 Chevrolet Silverado 1500
- 2005 Chevrolet Silverado 1500
- 2006 Chevrolet Silverado 1500
- 2007 Chevrolet Silverado 1500
- 2008 Chevrolet Silverado 1500
- 2009 Chevrolet Silverado 1500
- 2010 Chevrolet Silverado 1500
- 2011 Chevrolet Silverado 1500
- 2012 Chevrolet Silverado 1500
- 2013 Chevrolet Silverado 1500
Chevrolet Silverado 2500
- 1999 Chevrolet Silverado 2500
- 2000 Chevrolet Silverado 2500
- 2001 Chevrolet Silverado 2500
- 2002 Chevrolet Silverado 2500
- 2003 Chevrolet Silverado 2500
- 2004 Chevrolet Silverado 2500
- 2005 Chevrolet Silverado 2500
- 2006 Chevrolet Silverado 2500
- 2007 Chevrolet Silverado 2500
Chevrolet Silverado 3500
- 2001 Chevrolet Silverado 3500
- 2002 Chevrolet Silverado 3500
- 2003 Chevrolet Silverado 3500
- 2004 Chevrolet Silverado 3500
- 2005 Chevrolet Silverado 3500
- 2006 Chevrolet Silverado 3500
- 2007 Chevrolet Silverado 3500
Chevrolet Suburban
- 2000 Chevrolet Suburban
- 2001 Chevrolet Suburban
- 2002 Chevrolet Suburban
- 2003 Chevrolet Suburban
- 2004 Chevrolet Suburban
- 2005 Chevrolet Suburban
- 2006 Chevrolet Suburban
- 2007 Chevrolet Suburban
- 2008 Chevrolet Suburban
- 2009 Chevrolet Suburban
- 2010 Chevrolet Suburban
- 2011 Chevrolet Suburban
- 2012 Chevrolet Suburban
- 2013 Chevrolet Suburban
- 2014 Chevrolet Suburban
Chevrolet Suburban 2500
- 2000 Chevrolet Suburban 2500
- 2001 Chevrolet Suburban 2500
- 2002 Chevrolet Suburban 2500
- 2003 Chevrolet Suburban 2500
- 2004 Chevrolet Suburban 2500
- 2005 Chevrolet Suburban 2500
- 2006 Chevrolet Suburban 2500
Chevrolet Tahoe
- 2000 Chevrolet Tahoe
- 2001 Chevrolet Tahoe
- 2002 Chevrolet Tahoe
- 2003 Chevrolet Tahoe
- 2004 Chevrolet Tahoe
- 2005 Chevrolet Tahoe
- 2006 Chevrolet Tahoe
- 2007 Chevrolet Tahoe
- 2008 Chevrolet Tahoe
- 2009 Chevrolet Tahoe
- 2010 Chevrolet Tahoe
- 2011 Chevrolet Tahoe
- 2012 Chevrolet Tahoe
- 2013 Chevrolet Tahoe
- 2014 Chevrolet Tahoe
Chevrolet Trailblazer SS
- 2006 Chevrolet Trailblazer SS
- 2007 Chevrolet Trailblazer SS
- 2008 Chevrolet Trailblazer SS
- 2009 Chevrolet Trailblazer SS
Pontiac Trans Am
- 1998 Pontiac Trans Am
- 1999 Pontiac Trans Am
- 2000 Pontiac Trans Am
- 2001 Pontiac Trans Am
- 2002 Pontiac Trans Am
GMC Yukon
- 1999 GMC Yukon
- 2000 GMC Yukon
- 2001 GMC Yukon
- 2002 GMC Yukon
- 2003 GMC Yukon
- 2004 GMC Yukon
- 2005 GMC Yukon
- 2006 GMC Yukon
- 2007 GMC Yukon
- 2008 GMC Yukon
- 2009 GMC Yukon
- 2010 GMC Yukon
- 2011 GMC Yukon
- 2012 GMC Yukon
- 2013 GMC Yukon
- 2014 GMC Yukon
GMC Yukon XL 2500
- 2000 GMC Yukon XL 2500
- 2001 GMC Yukon XL 2500
- 2002 GMC Yukon XL 2500
- 2003 GMC Yukon XL 2500
- 2004 GMC Yukon XL 2500
- 2005 GMC Yukon XL 2500
- 2006 GMC Yukon XL 2500
Vehicle applications reflect the fitment published by Texas Speed & Performance for this part number. Confirm your engine and cylinder head configuration before ordering.
FAQ
What engines does the Texas Speed Bald Eagle LS1/LS2 N/A cam fit?
It fits cathedral-port LS engines such as the LS1, LS6 and LS2 in 1997 to 2007 Corvettes, 1998 to 2002 Camaros and Firebirds, 2004 to 2006 GTOs and cathedral-port GM trucks. Texas Speed lists 5.7L and 6.0L as the best suited engines.
What is the difference between the N/A and supercharged Bald Eagle cams?
This naturally aspirated version is for engines without a supercharger and has a bit more chop at idle. The boosted Bald Eagle is the version Cleetus McFarland runs in Leroy with a blower.
Do I need a stall converter with the Bald Eagle N/A cam?
Yes, in an automatic vehicle. Texas Speed requires a torque converter with a minimum 2,800 rpm stall speed. A rear gear change is not required, but a 3.23 or steeper ratio is recommended for maximum performance.
Which valve springs work with the Bald Eagle N/A camshaft?
Upgraded springs are required. Texas Speed says the cam can be run on PAC Racing 1219 single beehive springs or on the TSP dual spring kit with PAC Racing polished dual springs, titanium retainers, seats and seals.
Can the Bald Eagle N/A cam be daily driven?
Yes. Texas Speed describes it as a great daily driver camshaft once properly tuned, with a mild chop at idle and an operating range of 2,000 to 6,600 rpm.
Is tuning required after installing this camshaft?
Yes. A custom tune is required after any camshaft swap so the engine idles, starts and runs correctly with the new profile. Texas Speed states tuning is needed in both automatic and manual applications.
