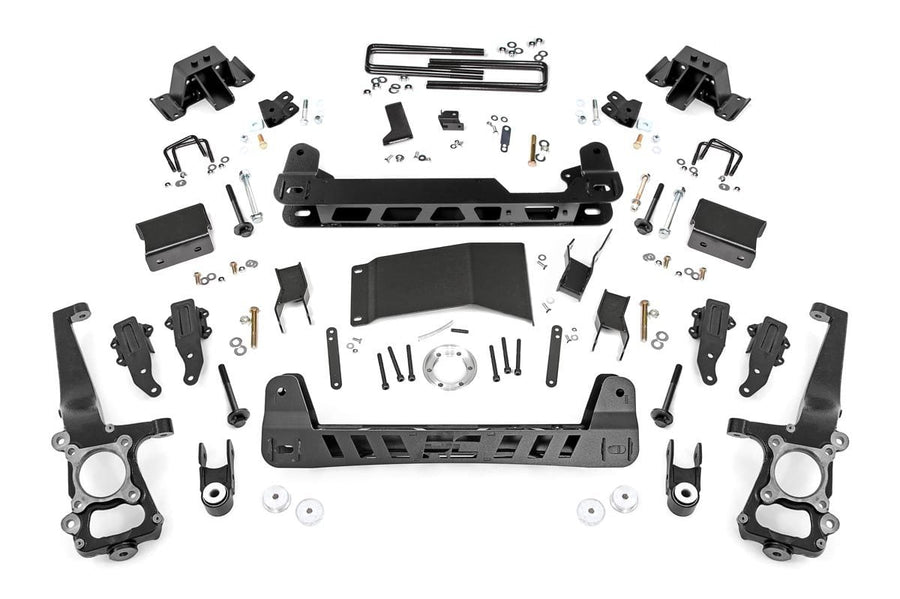

Rough Country 4.5 Inch Lift Kit | Ford Raptor 4WD (2019-2020) 51800
Specifications:
| link | https://www.roughcountry.com/product/ford-suspension-lift-kit-51800 |
| video | https://youtu.be/rScpc5t_WnM |
| features | Retains factory shocks and struts for incredible ride quality.\ Increased ground clearance.\ Retains factory track width.\ Levels the front of the vehicle with the rear.\ Includes fabricated, anti-wrap rear blocks w/ built-in bump stops.\ Maintains stock ride quality while eliminating common lift block problems.\ |
| notes | Does <>NOT fit single cab models. Does <>NOT fit models equipped with FOX Live Valve struts. Requires cutting and drilling. Factory wheels cannot be used. Aftermarket wheels must be 18in or larger. Aftermarket wheels must NOT exceed 9in width / 0mm offset / 5in backspacing. Due to manufacturing, dimension variances, and inflation, all tire and wheel combinations should be tested prior to installation. |
| install_time | 8-10 hours |
| front_components | Lifted knuckles\ |
| rear_components | Fabricated anti-wrap lift blocks\ |
| instructions | https://s3.amazonaws.com/roughcountry/install/921519300A.pdf |
| fitment | 2019-2020:4WD:Ford:Raptor |
| tire_info | 37x12.50R20:20x9:6x135:+0:-;35x12.50R20:20x9:6x135:+0:-;37x12.50R20:20x9:6x135:+1:-;35x12.50R20:20x9:6x135:+1:-;37x12.50R20:20x10:6x135:-19:Minor Trimming;35x12.50R20:20x10:6x135:-19:Minor Trimming;37x12.50R20:20x10:6x135:-18:Minor Trimming;35x12.50R20:20x10:6x135:-18:Minor Trimming;35x12.50R22:22x10:6x135:-19:Minor Trimming;35x12.50R22:22x10:6x135:-18:Minor Trimming |
| discount | 30.0 |
| multiple_box | Y |
| shipping_group | Ground Only |
| coo | USA |
| utv_product | N |
| added_date | 2019-01-14 |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2019 | Ford | F-150 | Raptor | |
| 2020 | Ford | F-150 | Raptor |
