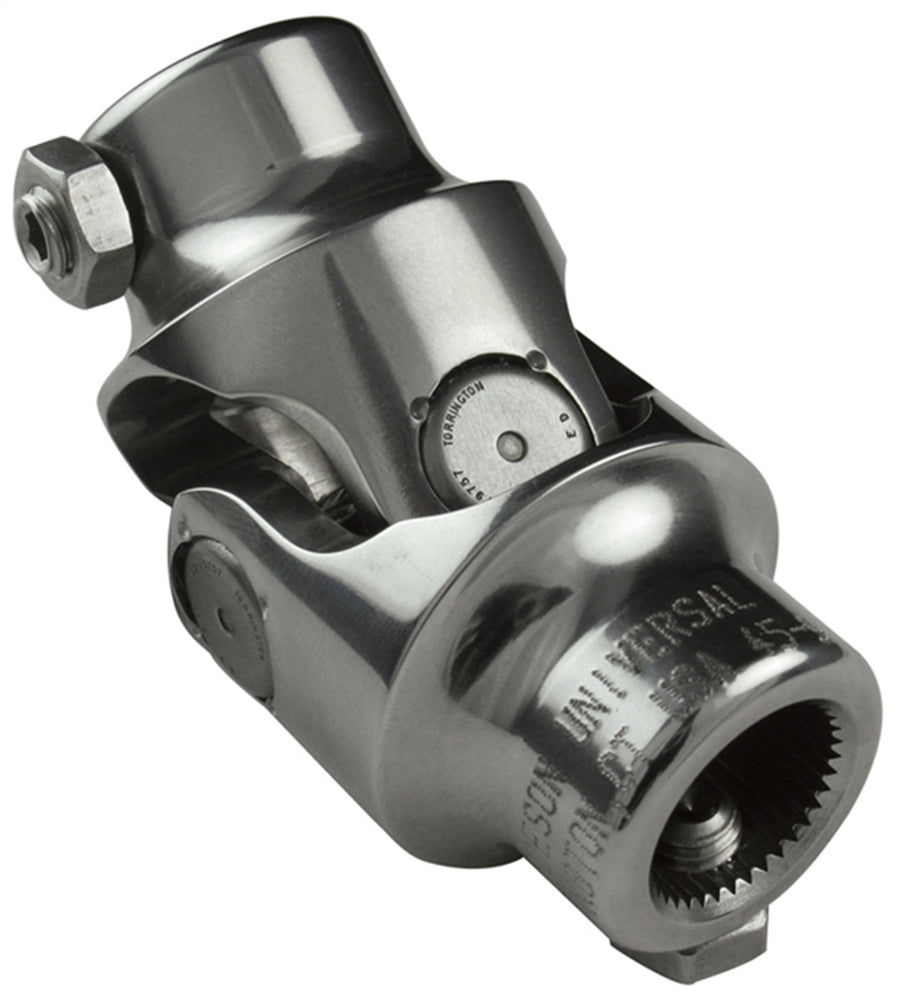

Borgeson steering u-joints are CNC-machined from solid billet stainless steel and connect a 3/4in. Double-D shaft to a 3/4in. Double-D shaft, allowing components from different steering systems to be mated together. The joint operates at angles up to 35 degrees, and staked needle bearing caps resist loosening and adjustment malfunction.
Specifications:
- Material: Polished stainless steel
- Configuration: 3/4in. Double-D X 3/4in. Double-D
- Maximum operating angle: 35°
- Bearing type: Sealed needle bearing, maintenance-free
- Manufactured in the USA
- Part Number: 124949
FAQ
What does the 3/4DD designation mean?
DD stands for Double-D, a round shaft machined with two flat sides on opposite faces. This u-joint has a 3/4in. Double-D bore on both ends.
What is the maximum operating angle for this u-joint?
It can operate at angles up to 35 degrees.
What material is this u-joint made from?
It is CNC-machined from solid billet stainless steel and polished.
Does this u-joint require regular maintenance?
No, it uses a sealed, maintenance-free needle bearing design with staked caps that resist loosening.
