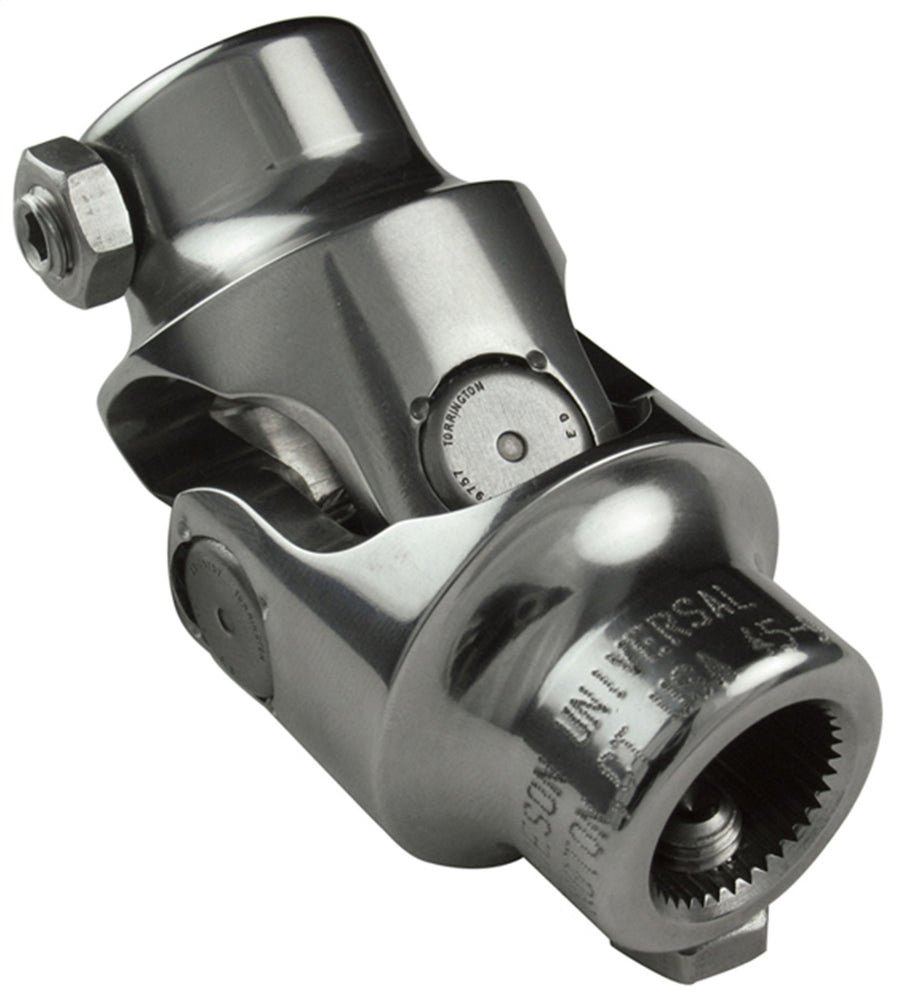

Borgeson u-joints are machined from solid billet stainless steel on CNC equipment and tested to meet or exceed current production vehicle requirements. This polished stainless single u-joint mates a 3/4in. Double-D shaft to a 1in. Double-D shaft, allowing components from different manufacturers to be connected, such as a GM column to a Mustang rack and pinion or a Ford column to a Saginaw box.
Specifications:
- Polished stainless steel single universal joint
- 3/4in. Double-D x 1in. Double-D
- Accommodates up to a 35-degree angle
- Zero radial play, sealed needle bearing design
- Machined from solid billet stainless steel
- Made in the USA
- Part Number: 124952
FAQ
What sizes does this u-joint connect?
3/4in. Double-D on one end and 1in. Double-D on the other.
What angle can this joint accommodate?
Up to 35 degrees.
What is this u-joint made from?
Solid billet stainless steel, polished.
Can this be used to mate components from different manufacturers?
Yes. Borgeson's range of Double-D and spline sizes allows components like a GM column to be connected to a Mustang rack and pinion, or a Ford column to a Saginaw box.
