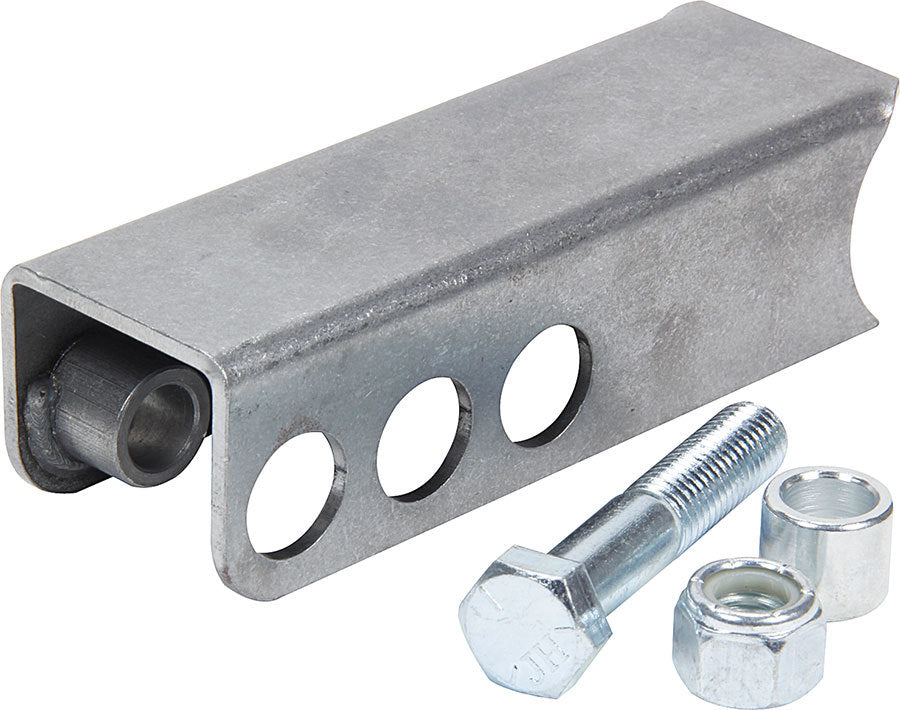

Allstar Performance's shock mount is notched to fit 1-1/2 to 1-3/4 inch round tubing, forming a gusset-style mount that welds on three sides. The notched design positions the bracket perpendicular to the tubing at a 90 degree angle and includes 1/2 inch shock mounting hardware. This is the extra-long, adjustable version with three shock mounting holes, distinct from the fixed 3-hole bracket ALL60115 despite the similar "3 Hole" naming.
Refer to the manufacturer's spec sheet for full dimensions and mounting details: Allstar Spec Sheet.
FAQ
Is the ALL60113 adjustable?
Yes, this is an adjustable, extra-long notched bracket, unlike the fixed 3-hole bracket ALL60115.
What tubing size does this bracket fit?
It is notched to fit 1-1/2 to 1-3/4 inch round tubing.
How does the notched design mount to the tubing?
The gusset-style notch welds on three sides and positions the bracket perpendicular to the tubing at a 90 degree angle.
How many mounting holes does it have?
It has three shock mounting holes.
How is this different from the ALL60115?
The ALL60115 is a fixed bracket that welds parallel to the tubing with three holes on 1 inch centers, while the ALL60113 is the adjustable, notched, extra-long version.
