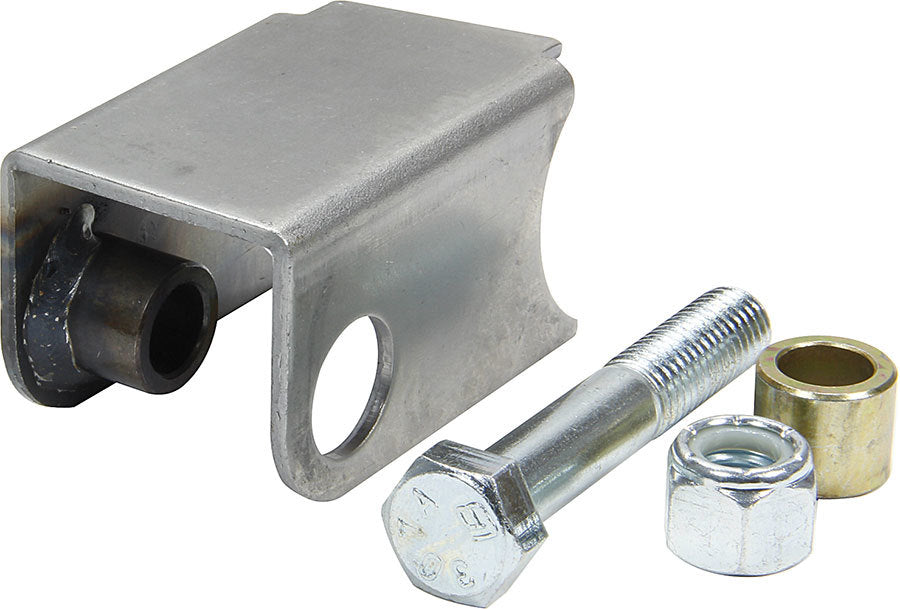

Allstar Performance's passenger-side coil-over bracket is sold as a 10-pack for shops and racers who need multiple brackets on hand. These weld-on brackets mount standard and coil-over shocks using a 1/2 inch ID inner bushing or 1/2 inch rod end to the chassis, and also work for many other mounting applications. Each bracket is made from notched 1/8 inch thick mild steel sized for 1-3/4 inch round tubing and configured for the passenger side of the vehicle. Every bracket in the set includes a 1/2 inch bolt, spacer, and locknut.
Refer to the manufacturer's spec sheet for full dimensions and hardware details: Allstar Spec Sheet.
FAQ
What does the ALL60101-10 10-pack include?
Each pack contains ten passenger-side, notched coil-over shock mount brackets, each with a 1/2 inch bolt, spacer, and locknut.
Which side of the vehicle is this bracket for?
This bracket is built for the passenger (right) side. A driver-side companion bracket, ALL60100, is sold separately.
What tubing size does this bracket fit?
The notched profile is sized for 1-3/4 inch round chassis tubing.
Is welding required to install this bracket?
Yes, this is a weld-on bracket and must be welded to the chassis tubing.
What shocks does this bracket work with?
It mounts standard and coil-over shocks that use a 1/2 inch ID inner bushing or 1/2 inch rod end.
