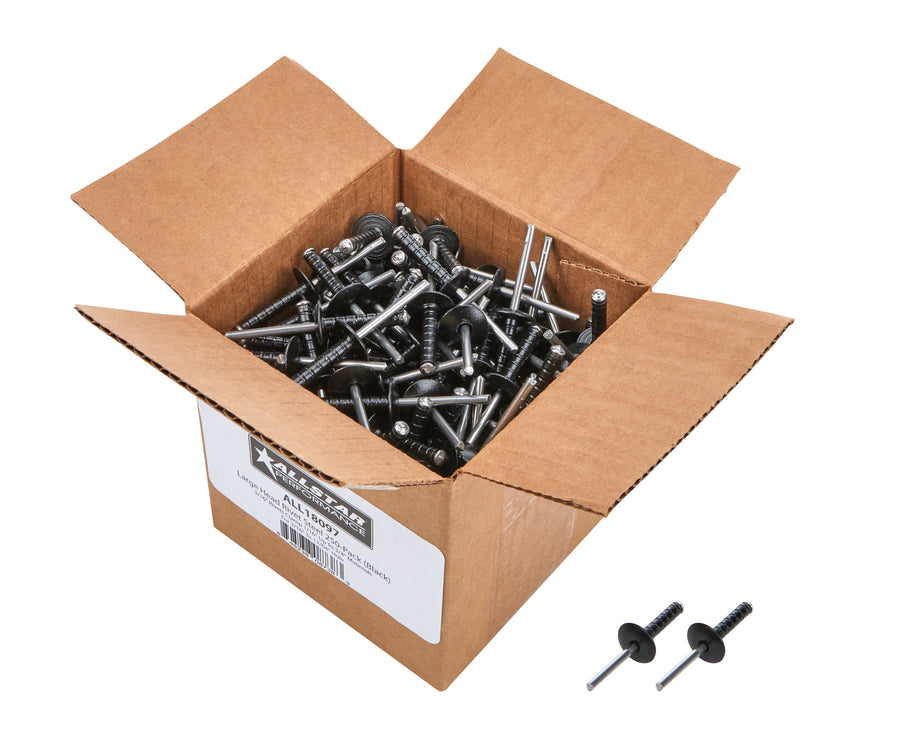

Allstar Performance ALL18097 is a large head multi-grip pull rivet built for sheet metal and body panel fastening on race cars, trailers, and fabrication projects. The ribbed multi-grip body draws panels together tighter than a standard smooth-body rivet as it sets.
- Head Style: Large Head, 0.5625 in O.D.
- Style: Multi-Grip
- Grip Range: 1/2 in to 3/4 in
- Mandrel: 3/16 in steel
- Material: Aluminum
- Color / Finish: Black, painted
- Pack Quantity: 250 rivets per box
Allstar Performance Spec Sheet
FAQ
What does "multi-grip" mean for this rivet?
Multi-grip rivets have a ribbed body that expands and locks against the material as it sets, drawing panels together tighter than a standard smooth-body rivet. This makes ALL18097 well suited for stacked sheet metal and body panel fastening.
What grip range does ALL18097 cover?
ALL18097 covers a grip range of 1/2 in to 3/4 in, making it suited for thicker material stacks than the standard grip rivets in this line.
What mandrel and drill bit does ALL18097 use?
ALL18097 uses a 3/16 in steel mandrel and is designed for use with a 13/64 in drill bit.
How many rivets are in the box?
Each box contains 250 black painted large head multi-grip rivets.
