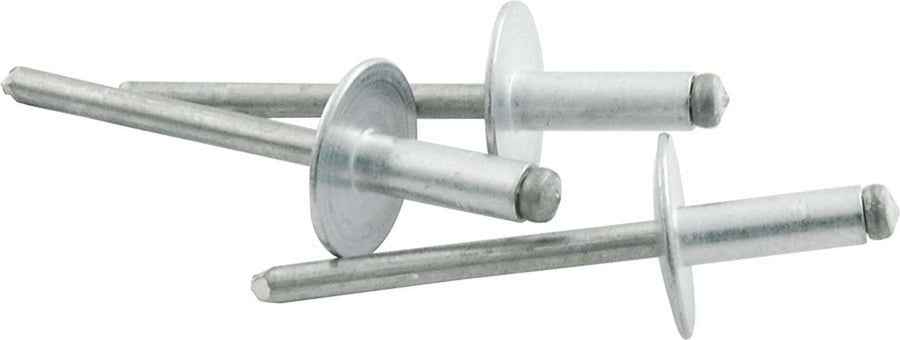

Allstar Performance large head pull rivet, part number ALL18151, in silver with a natural finish. The rivet has a 5/8 inch (0.625 in) head diameter, a 3/16 inch (0.1875 in) aluminum mandrel, and a grip range of 1/4 inch to 3/8 inch (0.25 in to 0.375 in). The rivet body is aluminum, and rivets are sold in boxes of 250.
Large head rivets provide more backside clamping surface than a small head rivet, making them suited to aluminum body panels, firewalls, and other applications needing added pull-through resistance.
Allstar Performance Spec Sheet
FAQ
What size is the head on ALL18151?
The head measures 5/8 inch (0.625 in) in outer diameter, the standard large-head size for this Allstar Performance rivet line.
What is the grip range of ALL18151?
ALL18151 has a grip range of 1/4 inch to 3/8 inch (0.25 in to 0.375 in), suited to typical body panel and bracket thicknesses.
What material is ALL18151 made from?
The rivet body and mandrel are both aluminum, finished in natural silver.
How many rivets are in a box of ALL18151?
Each box of ALL18151 contains 250 rivets.
