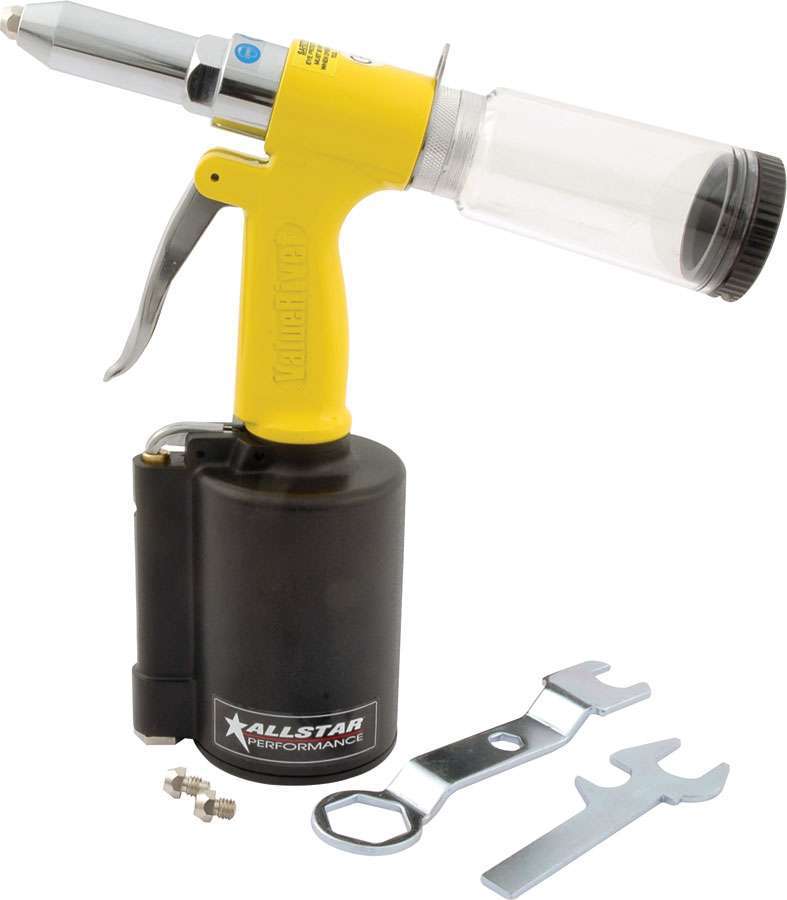

The Allstar Performance Air Rivet Gun ALL18207 is a heavy duty pneumatic riveter for setting steel or aluminum blind rivets from 3/32 in to 3/16 in diameter. It operates on 85 to 95 PSI of shop air at approximately 4 CFM through a 1/4 in NPT air inlet.
The gun has a rated pulling force of 1,940 lbs and includes 3/16 in and 1/4 in nosepieces that store underneath the base of the tool. It ships in a blow molded storage case with the wrenches needed to service the tool, including a spanner with a cutout gauge used for adjustment.
Allstar Performance Spec Sheet
FAQ
What rivet diameters can the ALL18207 air rivet gun set?
It sets steel or aluminum rivets from 3/32 in to 3/16 in in diameter.
What air pressure and flow does the ALL18207 require?
It requires 85 to 95 PSI of shop air at approximately 4 CFM through a 1/4 in NPT inlet.
What nosepieces come with the ALL18207?
The gun includes 3/16 in and 1/4 in nosepieces, which store underneath the base of the tool.
What is the rated pulling force of the ALL18207?
It has a rated traction force of 1,940 lbs.
Does the ALL18207 come with a case?
Yes, it ships in a blow molded storage case along with the wrenches needed to service the tool.
