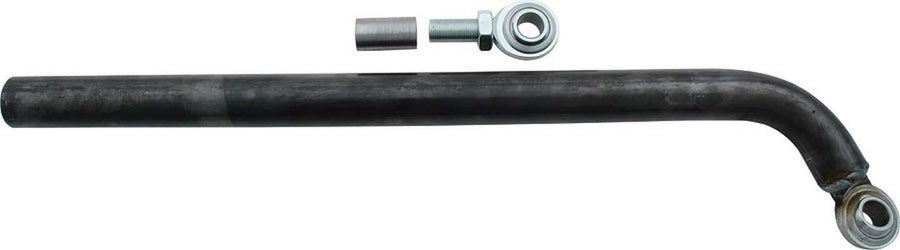

This Allstar Performance J-Bar panhard bar is a cut-to-fit kit that lets the builder create a custom-length J-Bar with up to a 27 inch center-to-center distance, enough to work with most chassis. The bar is formed from .250 inch wall 1-1/2 inch steel tubing and has a 4 inch drop. The kit includes a threaded insert and standard rod ends. Part number ALL56141.
Allstar Performance Spec Sheet (PDF)
Compatibility
This cut-to-fit J-Bar panhard bar kit is a universal rear suspension component intended for circle track and other race applications where a custom-length J-style panhard bar is needed. It is not a vehicle-specific part.
FAQ
What is the maximum length of the ALL56141 J-Bar panhard bar?
The cut-to-fit kit can be built to up to a 27 inch center-to-center distance, enough to work with most chassis.
What type of rod ends come with the ALL56141?
This kit includes standard rod ends.
What material and wall thickness is the tubing?
The bar is formed from .250 inch wall 1-1/2 inch steel tubing.
How much drop does the ALL56141 have?
This panhard bar has a 4 inch drop.
Does the kit include a threaded insert?
Yes, the kit includes a threaded insert along with the rod ends.
