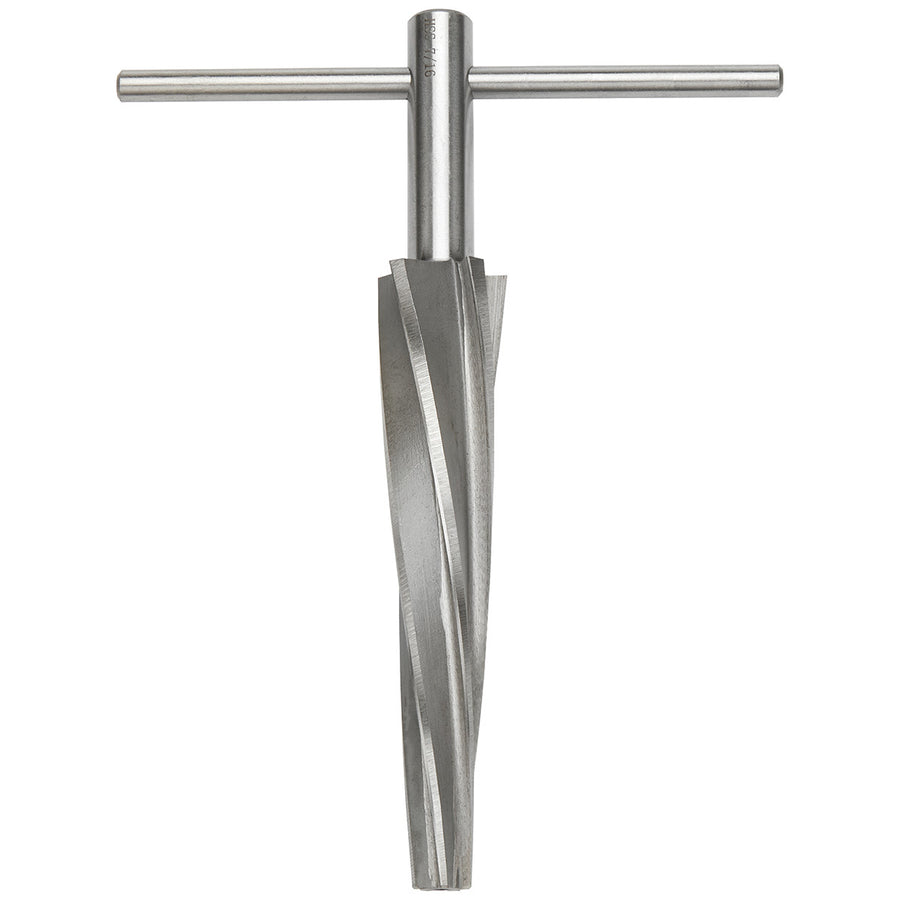

The Allstar Performance Taper Reamer ALL11170 is a steel reamer with a 1.5 in per foot taper (7.15 degrees), used to enlarge or true up tapered holes for tie rod ends and ball joints. The small diameter is 7/16 in and the large diameter is 1 in.
The reamer has an overall length of 6-1/2 in with a 4-1/2 in flute length. It includes a removable T-handle for manual use; with the T-handle removed, it can be run in a drill with a 1/2 in chuck.
Compatibility
The ALL11170 is a universal hand tool for reaming tapered holes to accept standard tie rod ends and ball joints. It is not vehicle-specific.
FAQ
What taper does the ALL11170 reamer cut?
The ALL11170 cuts a 1.5 in per foot taper, equal to 7.15 degrees.
What is the diameter range of the ALL11170?
The ALL11170 has a small diameter of 7/16 in and a large diameter of 1 in.
Can the ALL11170 be used in a drill?
Yes. The T-handle is removable, allowing the ALL11170 to be run in a drill with a 1/2 in chuck.
What is the ALL11170 used for?
The ALL11170 is used to enlarge or true up tapered holes to accept tie rod ends and ball joints.
What are the length specifications of the ALL11170?
The ALL11170 has an overall length of 6-1/2 in and a flute length of 4-1/2 in.
