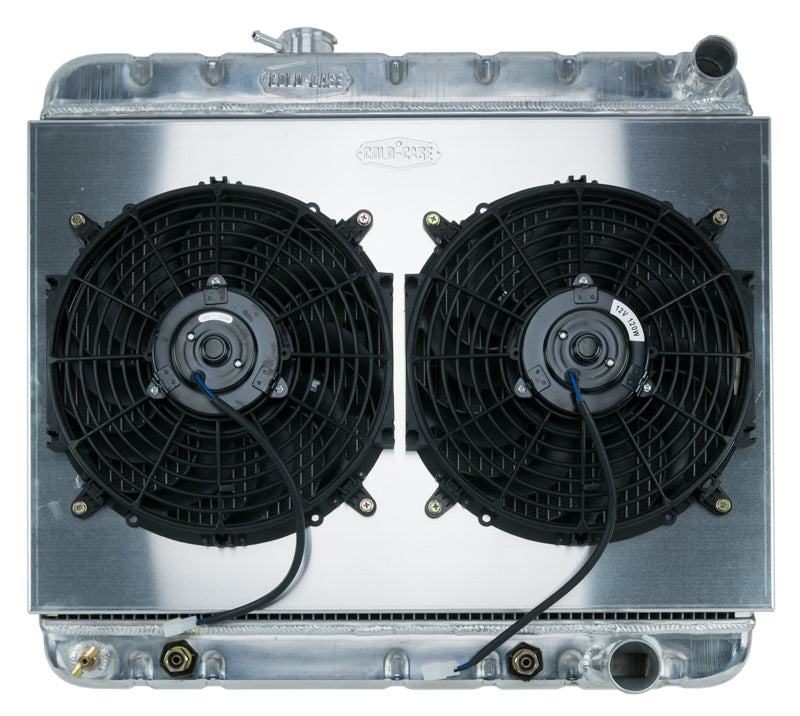

1964-1965 Pontiac GTO Tempest LeMans Aluminum Performance Radiator with Dual 12 inch Fan Kit. AT Transmission. All 1964 GTO, 1965 GTO w/ AC. This is the taller 17.5 inch core for factory AC cars.
These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.
These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.
- 100 percent TIG welded
- All Aluminum
- Polished OE style tanks
- 16 fins per inch
- Corrugated fins that give more surface area and more thermal transfer
- Pressure tested
- For auto trans (auto-trans-cooler)
- Direct fitment for 64-65 GTO
- Old Part Number: RPE24L
Radiator Specs
- Core 17-1/2 inch
- Width 25 inch
- Overall Height 21-7/8 inch
- Overall Thickness 6 inch
- Upper Hose 1-1/2 inch
- Lower Hose 1-13/16 inch
- Tubes (2) 1 inch Tubes
- Trans Lines 12-1/4 inch
COLD-CASE Radiators 64-65 GTO w/ AC AT Aluminum Performance Radiator Dual Fan Kit Cold Cae Radiators GPG22AK
Specifications:
| Country of Origin | CHN |
| Sold As | Kit |
| UPC | 846861013625 |
| Availability | Available |
| Thickness | 6.75 Inch |
| Universal | No |
| Blade Material | Curved Nylon |
| Fan Diamter (in) | 12 Inch |
| Fan Included y/n | Yes |
| Fan Quantity | 2 |
| Max Fan CFM | 3200 CFM |
| Overall Width | 25.50 Inch |
| Wiring Included | No |
| Core Height | 15.31 Inch |
| Core Width | 25.50 Inch |
| Overall Height | 20.25 Inch |
| Upper Hose | 1.50 Inch |
| Lower Hose | 1.75 Inch |
| Fins Per Inch | 16 |
| Shroud Included | Yes |
| Trans Cooler Fitting Size | 5/16 Inch Inverted Flare |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1964 | Pontiac | GTO | ||
| 1965 | Pontiac | GTO |
