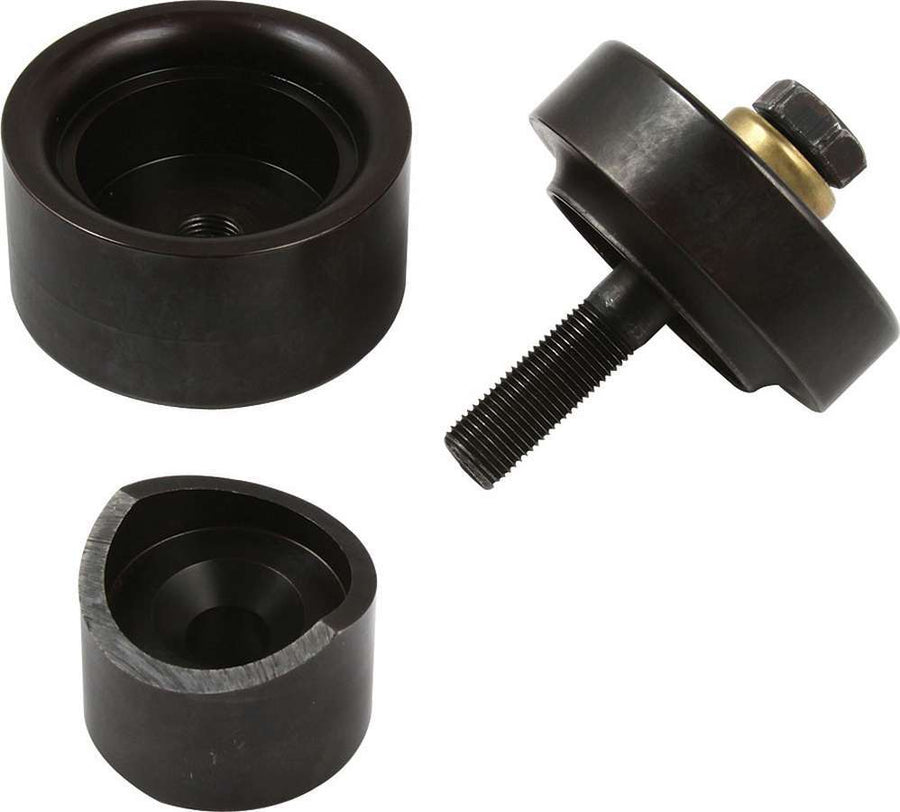

The Allstar Performance Punch and Flare Tool 2in ALL11074 punches and flares a 2in diameter hole in sheet metal in one operation. The tool cuts holes in up to 20 gauge (.0359in) steel or 18 gauge (.0403in) aluminum. Hole size increases about 1/8in when the hole is flared.
To use the tool, mark the center point of the hole location and drill a 1/2in pilot hole as a guide. Apply a lubricant such as WD-40 to the bolt, bearing, and panel surface before tightening the mandrel bolt to cut and flare the hole. The tool is constructed of steel with a black paint finish.
Spec Sheet / Instructions (PDF)
FAQ
What size hole does the ALL11074 punch and flare tool cut?
It cuts and flares a 2in diameter hole.
What materials can this tool cut?
It cuts up to 20 gauge (.0359in) steel or 18 gauge (.0403in) aluminum.
How much does the hole size increase when flared?
The hole size increases about 1/8in when the hole is flared.
What pilot hole size is needed before using the tool?
A 1/2in pilot hole should be drilled at the center point as a guide for the punch tool.
What material is the tool made from?
The tool is made from steel with a black paint finish.
