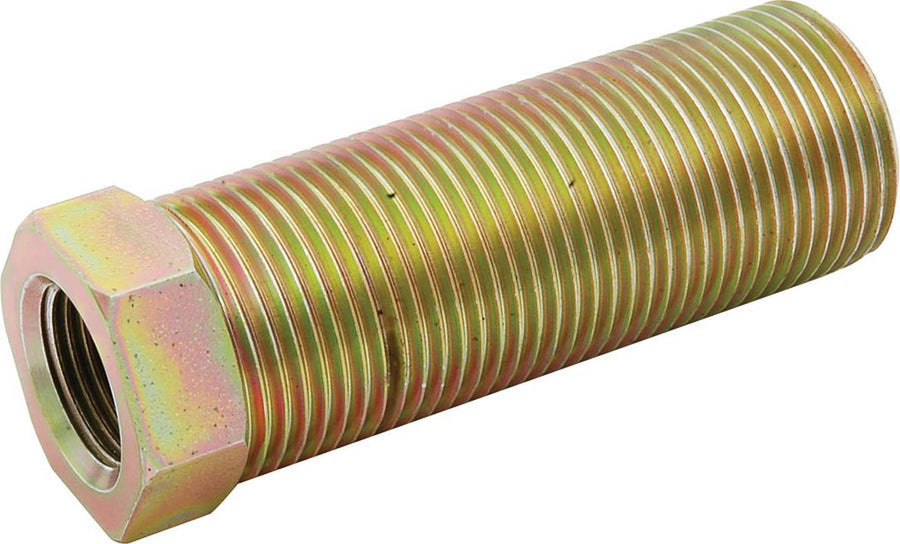

Replacement threaded adjuster for Allstar adjustable J-bar panhard bars ALL56155 and ALL56156. The J-bars are formed from 1-1/2in steel tubing and mount to the pinion rather than the axle tube to maintain adequate driveshaft clearance, using 3/4in rod ends for up to 2in of total adjustment. The 18-1/2in J-bar adjusts from 17-1/2in to 19-1/2in, and the 20-1/2in bar adjusts from 19-1/2in to 21-1/2in. This adjuster is made from steel with a cadmium finish and threads 1-1/8-12 right hand to 3/4-16 left hand.
FAQ
Which panhard bars use this threaded adjuster?
This threaded adjuster is a replacement part for Allstar's adjustable J-bar panhard bars, ALL56155 and ALL56156.
What is the thread configuration on this adjuster?
The adjuster threads 1-1/8-12 right hand on one end to 3/4-16 left hand on the other, allowing the J-bar length to be tuned.
How much adjustment range does the J-bar provide?
The J-bar rod ends allow up to 2in of total adjustment; the 18-1/2in bar adjusts from 17-1/2in to 19-1/2in, while the 20-1/2in bar adjusts from 19-1/2in to 21-1/2in.
What material and finish is the adjuster made from?
The adjuster is made from steel with a cadmium finish.
