Edelbrock Edelbrock Max-Fire Universal High Performance's Spark Plug Wires 22700
Regular Price
$71.95
Press & drag to view

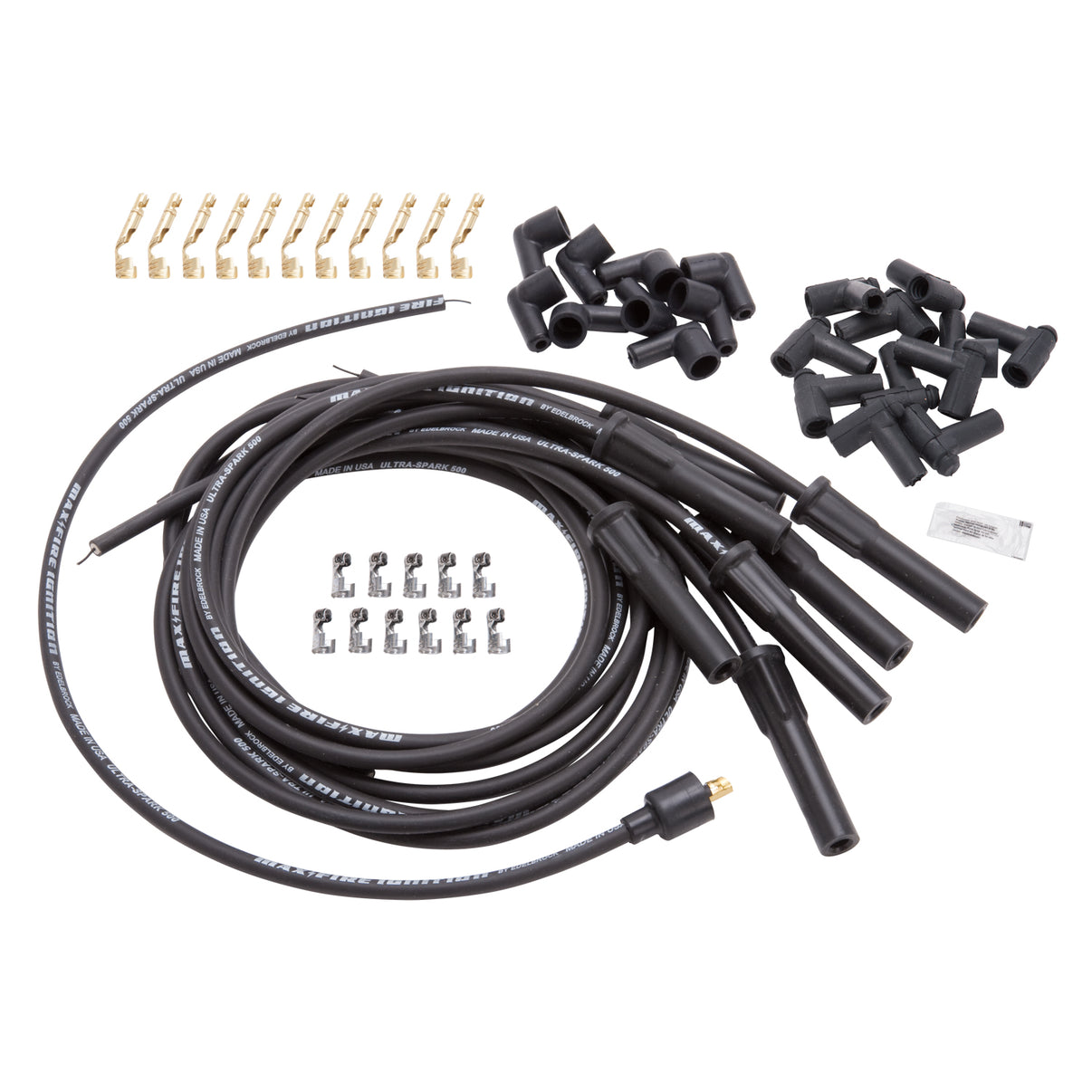

one 53", one 49", two 45", one 41", one 37" and two 33", as well as 11 points style terminals, 11 HEI plug style terminals, 9 straight distributor boots, 9 90 Deg distributor boots, 1 distributor to coil wire, dielectric grease and installation instructions. Will require the use of a wire crimping tool to complete the installation.
Edelbrock Edelbrock Max-Fire Universal High Performance's Spark Plug Wires 22700
Specifications:
| Insulation Material | Inner Insulation |
| Wire 2 Length | 49.0 |
| Insulation Outside Diameter | 0.23 |
| Insulation Color | White |
| Universal Or Specific Fit | Universal |
| Spark Plug End Boot Color | Black |
| Spark Plug End Boot Quantity Straight | 8 |
| Wire 4 Length | 45.0 |
| Spark Plug Wire Resistance | 500 |
| Core Material | Magnetic Kevlar Core |
| Distributor Coil End Boot Type | Points, HEI |
| Wire Separators Included | No |
| Wire 1 Length | 53.0 |
| Wire 5 Length | 41.0 |
| Wire 8 Length | 33.0 |
| Spark Plug Boot Material | Compact Silicone |
| Wire 6 Length | 37.0 |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Coil End Boot Color | Black |
| Wire 3 Length | 45.0 |
| Spark Plug End Terminal Type | Standard |
| Resistance | 500 |
| Coil Wire Length | 28.0 |
| Distributor Coil End Terminal Type | HEI & Non_HEI |
| Noise Suppression Type | No |
| Distributor Coil End Boot Degree | 90 |
| Wire 7 Length | 33.0 |
| Outside Diameter | 8.5 |
| Description_ABR | Sprk Plg Wir |
| Description_INV | Edelbrock Universal Spark Plug Wire Set |
| Description_LAB | Max-Fire (Ultra-Spark 500) Universal Flex Boot Plug 500 ohm Wire Set |
| Description_EXT | Edelbrock Max-Fire Universal High Performance's Spark Plug Wires |
| Description_MKT | The Edelbrock #22700 Max-Fire Universal Ultra-Spark 500 spark plug wire set features the same high quality as our model specific sets, but give you the flexibility to tailor them to fit your V8 application perfectly. Includes the straight spark plug boot pre-installed from the factory and the 90 Deg boots. The straight boot is a "Vari-Angle" boot that allows the boot to be bent and hold its position in tight areas to clear headers. The Edelbrock #22700 include early OEM socket style and late style HEI plug distributor terminals to make sure your covered. Comes with the following wire lengths |
| Description_MKT | one 53", one 49", two 45", one 41", one 37" and two 33", as well as 11 points style terminals, 11 HEI plug style terminals, 9 straight distributor boots, 9 90 Deg distributor boots, 1 distributor to coil wire, dielectric grease and installation instructions. Will require the use of a wire crimping tool to complete the installation. |
| Description_TRA | Check your spark plug wires regularly! Like everything else on your car, spark plug wires need to be checked and require periodic changing. If you want to keep the performance of your engine at the optimal level, we recommend you replace your spark plug wires at the same time you replace your spark plugs. Fouled, damaged, or worn out spark plugs can lead to a variety of engine problems, such as misfires, hard starts, increased emissions, poor fuel economy and reduce acceleration. For most vehicles, you should replace your spark plugs every 30,000 miles. |
| Description_DEF | Spark Plug Wire Set |
