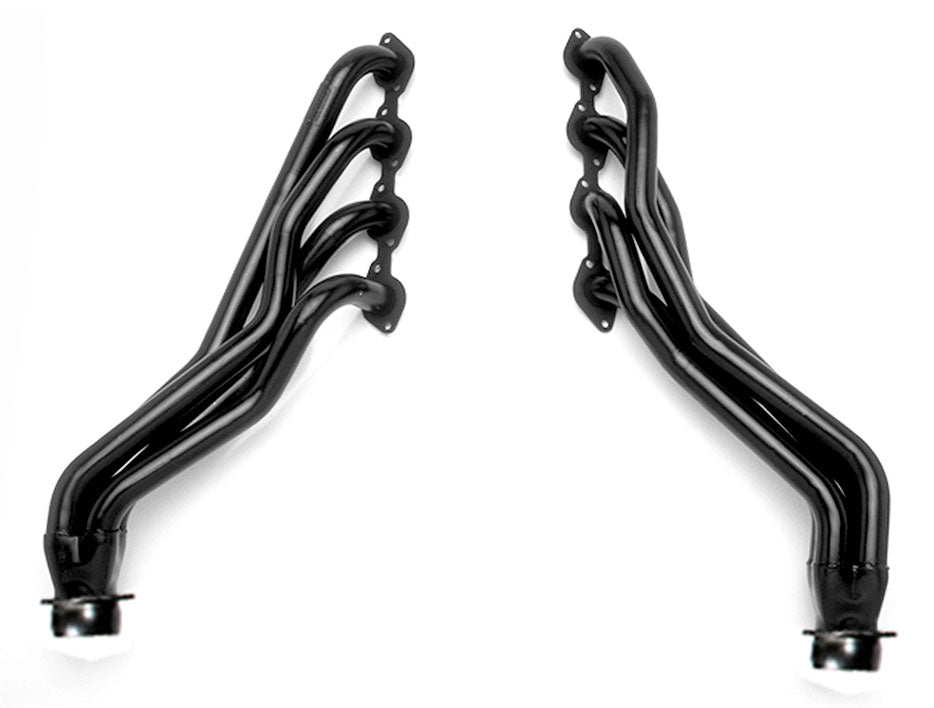

Hedman Hedders Long-Tube Headers For '88-95 GM 2WD 2500-3500 7.4L Trucks 69450
Regular Price
$379.99
Press & drag to view
Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and mid-length tube headers for Chevy trucks for nearly as long. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Big Block 7.4L Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.
These uncoated, LONG-TUBE headers fit 1988-95 2WD 3/4 and 1 ton Chevy Trucks with a factory 7.4L Chevy powerplant (check the application listings for exact fitment). The smooth 1-3/4 in. tube design provides ample exhaust flow to let your OBS Chevy truck's Big Block engine breathe easy, and produce maximum horsepower and torque.
These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish.
Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.
Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.
Hedman Hedders Long-Tube Headers For '88-95 GM 2WD 2500-3500 7.4L Trucks 69450
Specifications:
| with A.I.R. System | No |
| with EGR | No |
| Y-Pipe Included | No |
| E.O. # | No |
| Contents | headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware |
| Title | HEDMAN HEDDERS STANDARD-DUTY UNCOATED HEADERS; 1-3/4 IN. TUBE; 3 IN. COLLECTOR; FULL-LENGTH DESIGN; 88-95 CHEVROLET & GMC 2WD 3/4 & 1 TON TRUCK 7.4L; 1990-93 CHEVROLET 1/2 TON 454 SS HEADER |
| Notes | 88-95 1/2, 3/4, 1 Ton Truck/SUV 396-502 |
| Collector Diameter | 3 in. |
| Package Contents | Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Tube Material Thickness | 16g |
| Variations | 69456, 69850 |
| Emissions Notes | Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only. |
| Header Construction | MILD STEEL- Standard-Duty |
| Reducer Outlet Size | 2-1/2 in. |
| Gasket Or Seal Included | Yes |
| Flange Thickness | 0.3125 in. |
| Collector Attachment | 3 in. |
| Exhaust System Dia | 2-1/2 in. |
| Material | Mild Steel |
| Collector Style | BALL and SOCKET Style (Gasketless) |
| Footnotes | 127. Late Model Chassis. ENGINE OFFSET to passenger side of vehicle. |
| California Proposition 65 | WARNING: Cancer. For more info visit www.P65Warnings.ca.gov |
| Tube Style | Long Tubes |
| Finish Type | UNCOATED Mild Steel! Shipped with Temporary Paint. |
| Tube Length | Long Tubes |
| Tube Diameter | 1-3/4 in. |
| Tube Size | 1-3/4 in. |
| Tube Design | Standard |
| Replacement Head Flange Gasket | 27530 |
| Finish | Uncoated |
| Collector Size | 3 in. |
| Flange Style | Standard |
| Automatic Transmission - Floor | Yes |
| Automatic Transmission - Column | Yes |
| Air Conditioning | Yes |
| Reducers Included | Yes |
| Header Port Shape | Round |
| Header Style | Long Tube |
| Manual Transmission - Column | No |
| Header Material | Mild Steel |
| Mounting Hardware Included | Yes |
| Primary Tube Diameter (in) | 1.75 in. |
| Tuned | No |
| Weld-Up | No |
| Collector Bolts Included | Yes |
| Catalytic Converter(s) Included | No |
| Crossover Pipe Included | No |
| Motor Mounts Included | No |
| Quantity | Sold as a pair. |
| Replacement Gasket | 27530 |
| Header Finish | Uncoated |
| Installation Hardware Included | Yes |
| Manual Transmission - Floor | Yes |
| Bolts/Studs Included | Yes |
| Port Shape | Round |
| Power Steering | Yes |
| Cylinder Head Port Shape | Round |
| Primary Tube Gauge | 16g |
| Header Fasteners Included | Yes |
| Cylinder Head | Stock Profile Heads |
| Description_SHO | HEADERS, UNCOATED |
| Description_INV | HEDMAN GM TRUCK HEADER-UNCOATED |
| Description_DEF | Exhaust Header |
| Description_DES | Long-Tube Headers For '88-95 GM 2WD 2500-3500 7.4L Trucks |
| Description_ASM | 1991-1995 Chevrolet C2500 7.4 Liter, 1988-1995 Chevrolet C3500 7.4 Liter, 1988 Chevrolet R20 7.4 Liter, 1989 Chevrolet R2500 7.4 Liter, 1988 Chevrolet R30 7.4 Liter, 1989-1991 Chevrolet R3500 7.4 Liter, 1991-1995 GMC C2500 7.4 Liter, 1988-1995 GMC C3500 7.4 Liter, 1988-1989 GMC R2500 7.4 Liter, 1988-1991 GMC R3500 7.4 Liter |
| Description_EXT | UNCOATED Headers; 1-3/4 in. Tube; 3 in. Collector; FULL-LENGTH Design; 88-95 Chevrolet & GMC 2WD 3/4 & 1 Ton Truck 7.4L; 1990-93 Chevrolet 1/2 Ton 454 SS- Uncoated Mild Steel |
| Description_MKT |
Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and mid-length tube headers for Chevy trucks for nearly as long. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Big Block 7.4L Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors. These uncoated, LONG-TUBE headers fit 1988-95 2WD 3/4 and 1 ton Chevy Trucks with a factory 7.4L Chevy powerplant (check the application listings for exact fitment). The smooth 1-3/4 in. tube design provides ample exhaust flow to let your OBS Chevy truck's Big Block engine breathe easy, and produce maximum horsepower and torque. These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish. Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed. Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. |
| Description_FAB | Handcrafted, Mild Steel Construction. |
| Description_FAB | Long Tube Header Design Provides Excellent Top-End Horsepower and Torque. |
| Description_FAB | Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors |
| Description_FAB | Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters) |
| Description_FAB | Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating! |
| Description_FAB | Proud To Say, Made In The USA, Since 1954! |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1988 | Chevrolet | C2500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1989 | Chevrolet | C2500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1990 | Chevrolet | C2500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1991 | Chevrolet | C2500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1992 | Chevrolet | C2500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1993 | Chevrolet | C2500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1994 | Chevrolet | C2500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1995 | Chevrolet | C2500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1988 | Chevrolet | C3500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1989 | Chevrolet | C3500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1990 | Chevrolet | C3500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1991 | Chevrolet | C3500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1992 | Chevrolet | C3500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1993 | Chevrolet | C3500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1994 | Chevrolet | C3500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1995 | Chevrolet | C3500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1988 | Chevrolet | R20 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1989 | Chevrolet | R2500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1988 | Chevrolet | R30 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1989 | Chevrolet | R3500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1990 | Chevrolet | R3500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1991 | Chevrolet | R3500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1988 | GMC | C2500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1989 | GMC | C2500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1990 | GMC | C2500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1991 | GMC | C2500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1992 | GMC | C2500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1993 | GMC | C2500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1994 | GMC | C2500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1995 | GMC | C2500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1988 | GMC | C3500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1989 | GMC | C3500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1990 | GMC | C3500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1991 | GMC | C3500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1992 | GMC | C3500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1993 | GMC | C3500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1994 | GMC | C3500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1995 | GMC | C3500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1988 | GMC | R2500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1989 | GMC | R2500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1988 | GMC | R3500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1989 | GMC | R3500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1990 | GMC | R3500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. | |
| 1991 | GMC | R3500 | Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles.,Air Conditioning: Yes; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (208) Due to cylinder heads (aluminum) generation 6 engines, 502 BB Chevy may have clearance problems on some applications. Bottom of header flanges may hit head bolts. Notching may be necessary.; Footnotes: (1) Without smog injection or injection heads.; Footnotes: (127) Late model chassis. ENGINE OFFSET to passenger side of vehicle.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: RACE ONLY! NOT LEGAL for public street or highway use on '75-later vehicles. |
