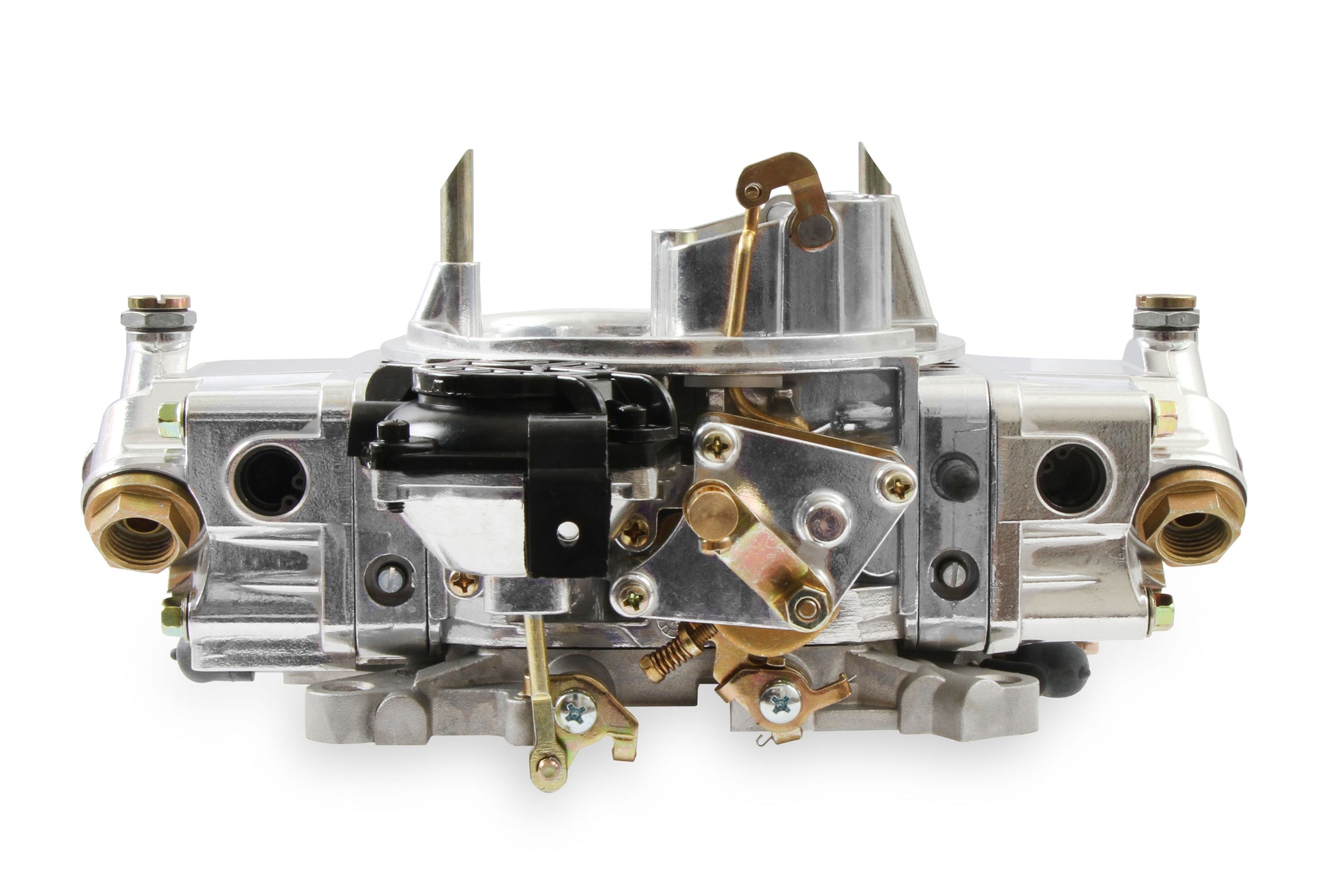

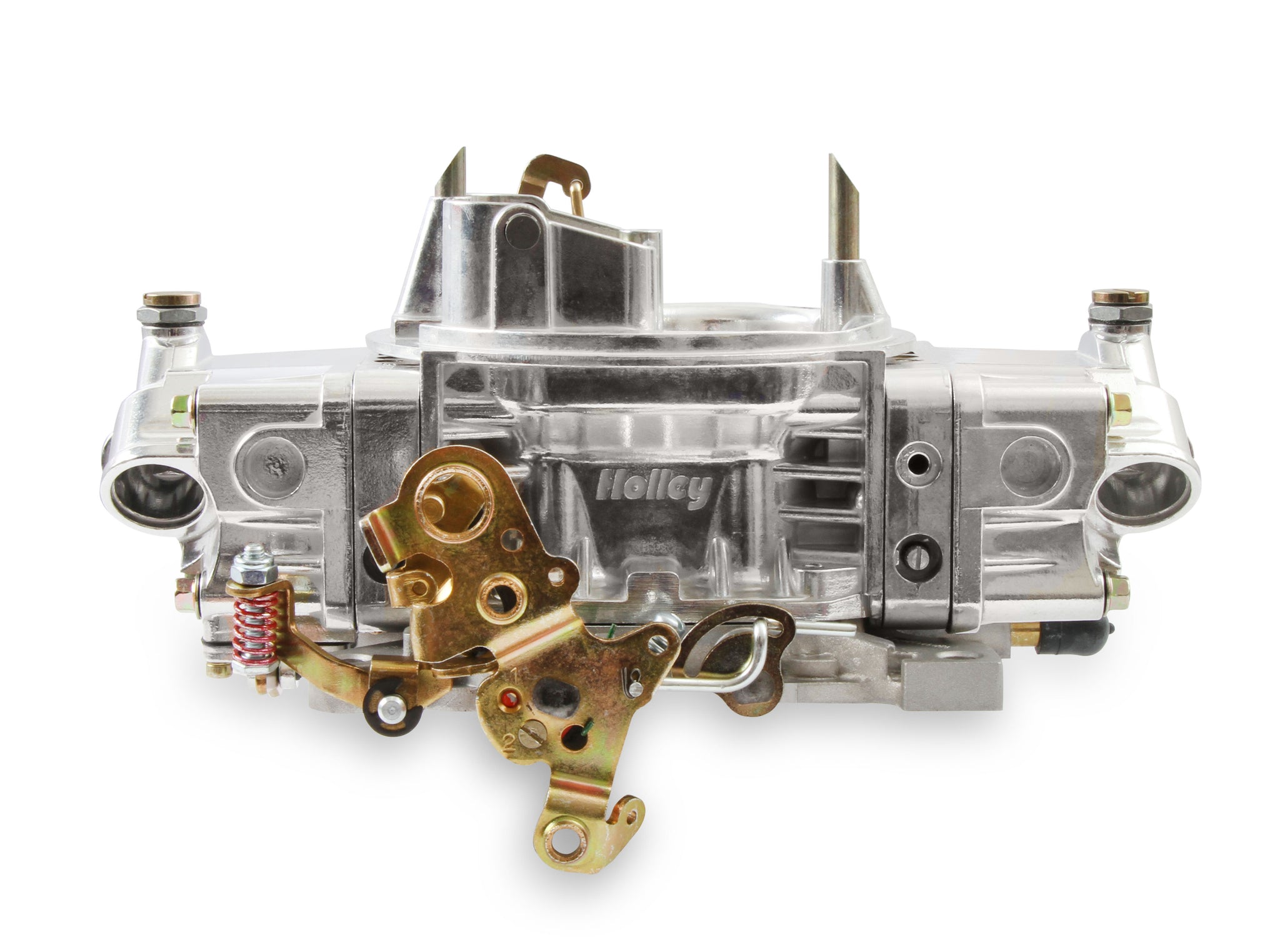

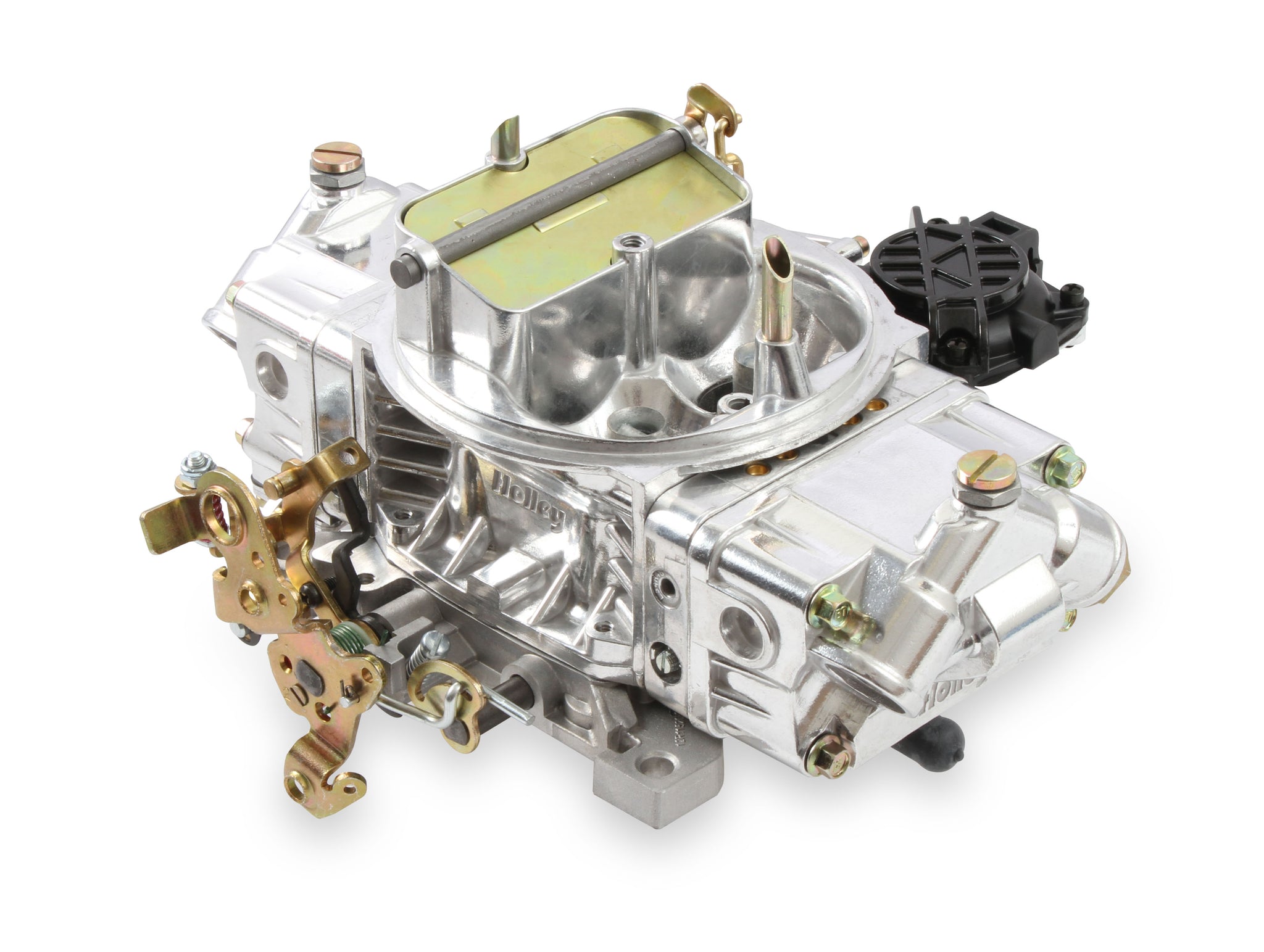

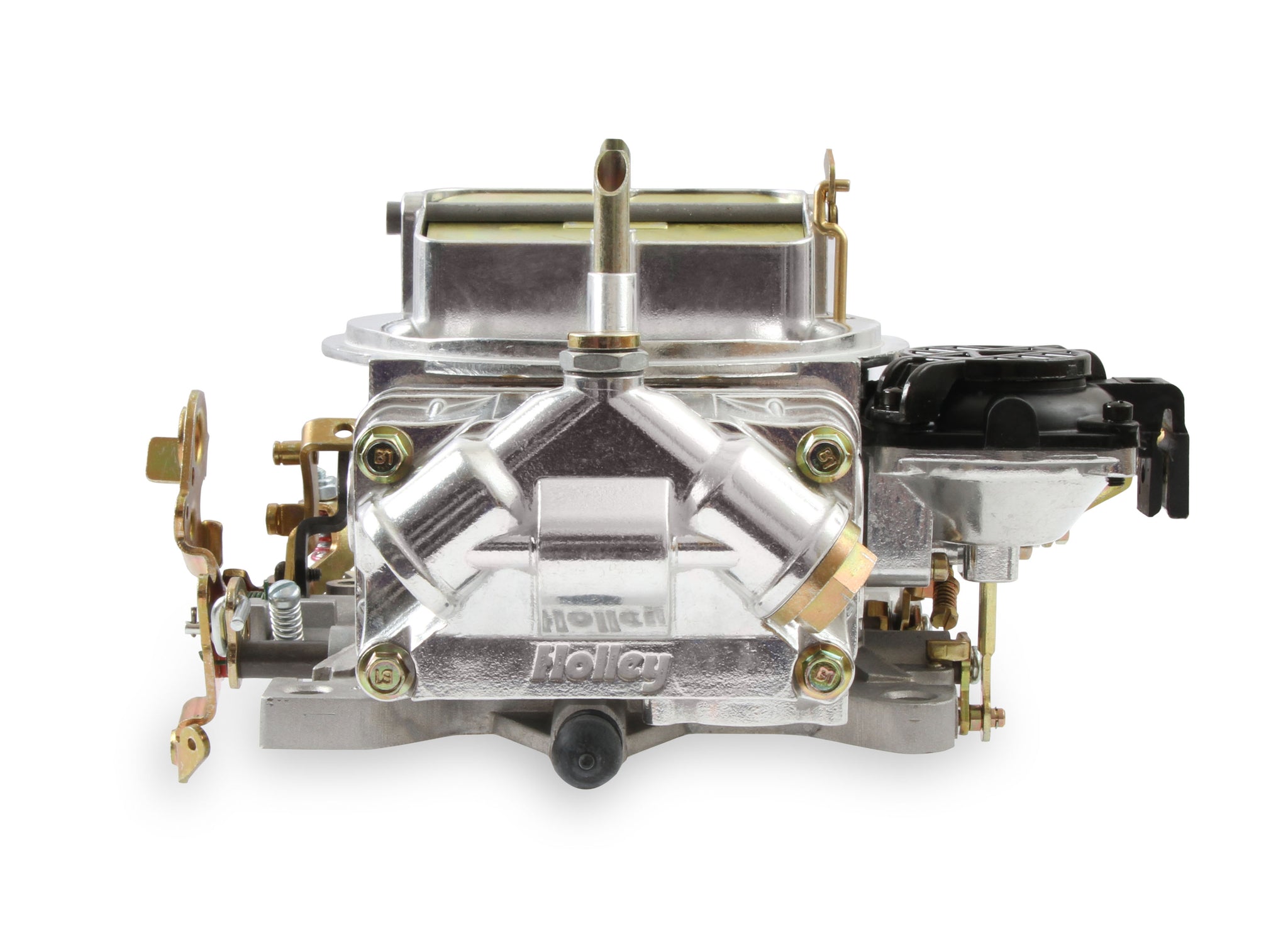

Holley 570 CFM - 4150 - Vacuum Secondaries - Shiny - Gasoline 0-81570
Specifications:
| 857 | 4 |
| Barrels | 4 |
| 1385 | Polished |
| 2464 | Polished |
| Booster | Straight |
| Booster Design | Straight |
| Brand | Holley |
| Carburetor Material | Aluminum |
| Carburetor Use | Street |
| Category | Air and Fuel Delivery |
| CFM | 570 |
| Choke | Manual |
| 4235 | Manual |
| Condition | New |
| Cubic Feet Per Minute Rating | 570 |
| Emission Code | 3 |
| Finish | Shiny |
| 8783 | Square/4150 |
| Fuel | Gasoline |
| Fuel Inlet | Dual |
| 3390 | Performance |
| 4234 | Yes |
| 574 | No |
| Marine Use | No |
| Material | Aluminum |
| Model | 4150 |
| 356 | 4 |
| part type | Carburetor |
| Primary Jet Diameter | 64 |
| Primary Main Jet | 64 |
| Primary Power Valve | 6.5 |
| Primary Pump Nozzle Size | 31 |
| Product Type | Carburetor |
| Secondaries | Vacuum |
| Secondary Main Jet | 68 |
| 4708 | No |
| Sub Category | Carburetion |
| Supercharged Application | No |
| Throttle Bore | 1.562 inch |
| Vacuum Ports | 1 timed (spark) port, 2 full, and 1 PCV port |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited Lifetime Warranty |
| Description_INV | 4150 570CFM H/C STREET AVENGER |

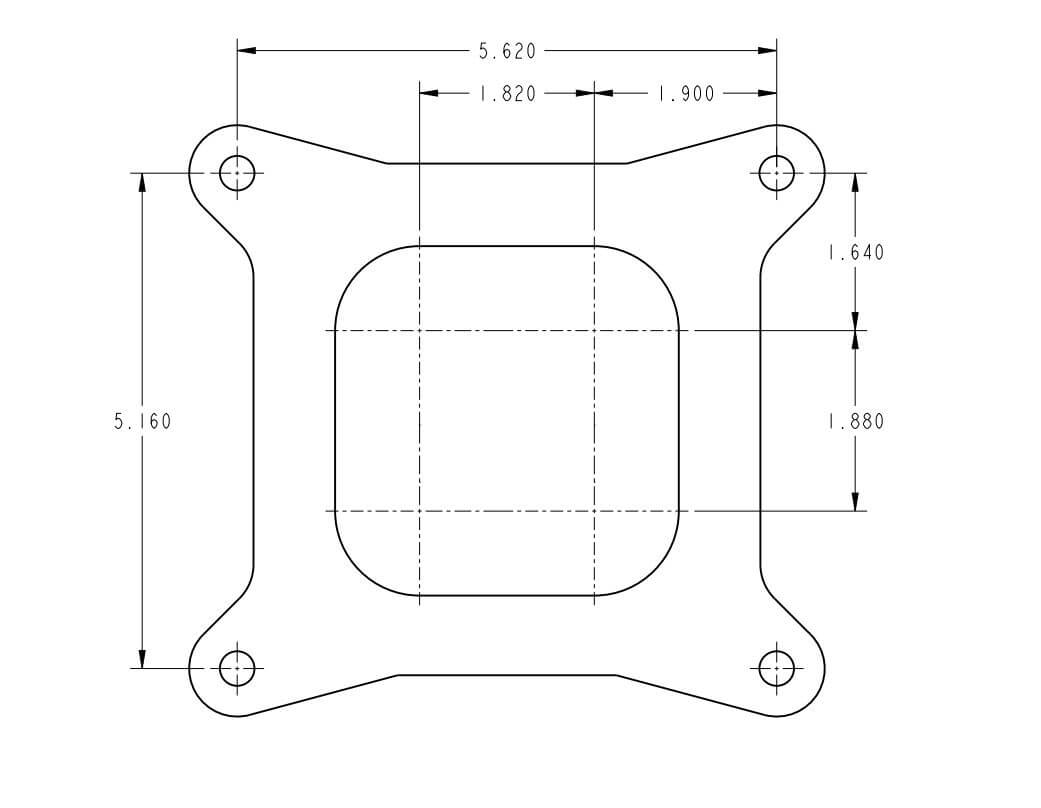

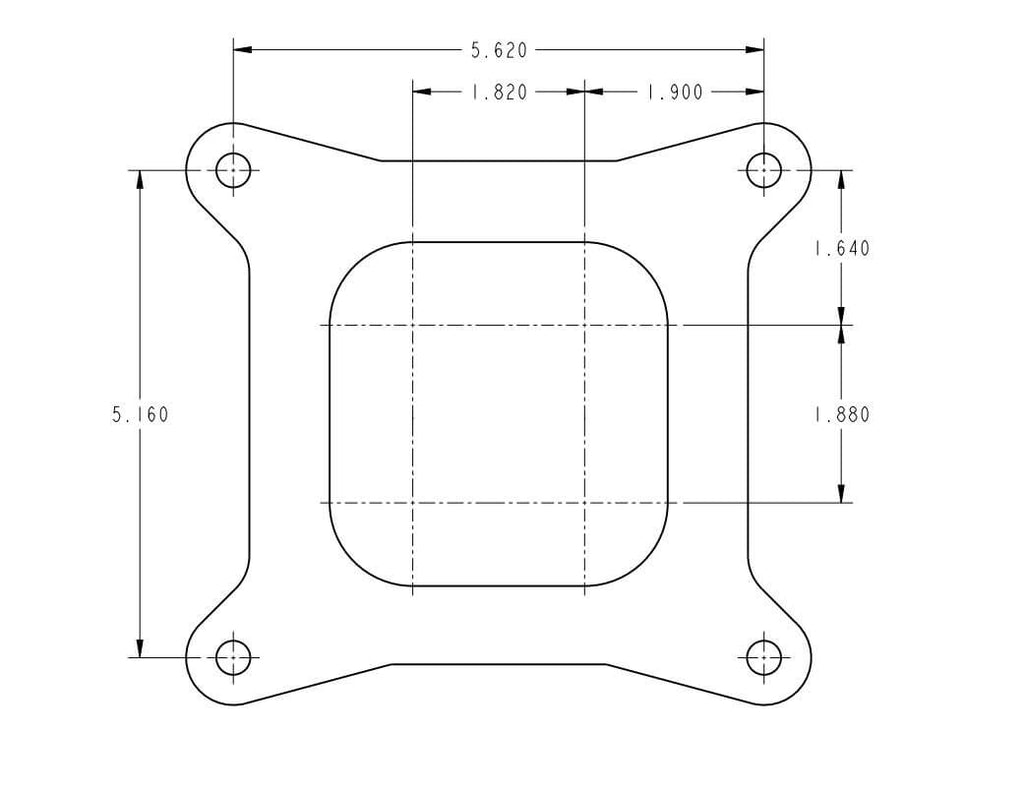

| Description_ASC | This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932. |
| Description_DES | Holley Street Avenger Carburetor |
| Description_EXT | 570 CFM - 4150 - Vacuum Secondaries - Shiny - Gasoline |
| Description_MKT | Street Avenger carburetors are known to bolt on right out of the box and have great features such as a quick change vacuum secondary for easy fine tuning; optimized street calibrations; four vacuum ports for all necessary vacuum accessories; factory preset electric choke for easy start ups; built-in fuel filters; and an included fuel line kit so there are no unnecessary trips back to the parts store. |
| Description_MKT | The Avenger series are the first carburetors to have a limited lifetime warranty. With a great warranty like that and the included comprehensive instruction manual, you can count on years of worry free service. |
| Description_FAB | Vibratory polished for good looks |
| Description_FAB | Optimized street calibration that works-out-of-the-box |
| Description_FAB | Manual choke (Cable driven, hand operated) for precise cold start control |
| Description_FAB | Vacuum secondaries allow use on a wide variety of vehicles. Quick Change vacuum housing cap allows you to tune for performance or fuel economy (springs included) |

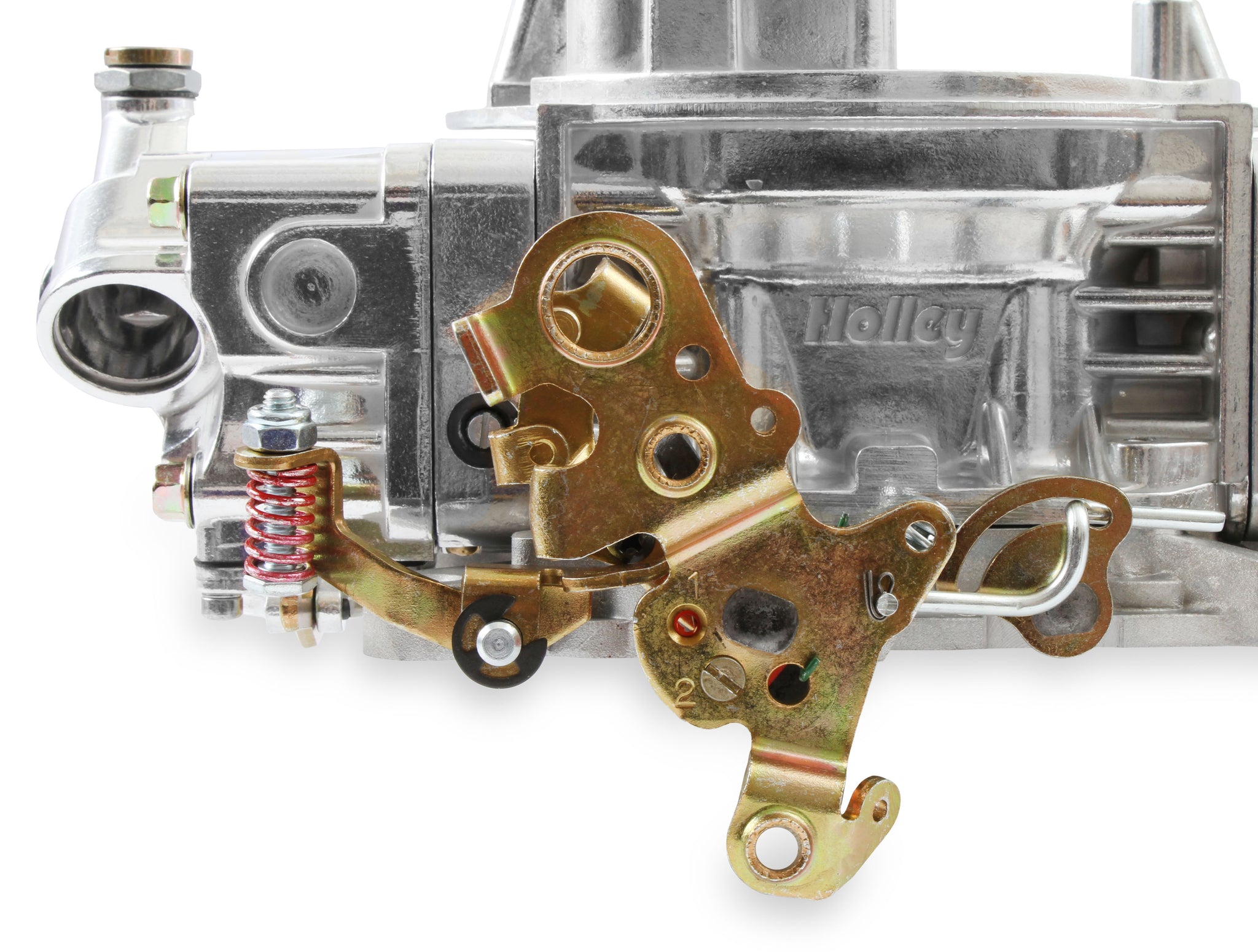

| Description_FAB | Compatible with GM, Chrysler, and Ford A/T kickdown linkage. Additional parts may be required. |
| Description_FAB | Fuel line kit included so there are no unnecessary trips back to the parts store |
| Description_FAB | Limited lifetime warranty - Guaranteed to be free from defects in material and workmanship for the life of the product! |
| Description_FAB | 100% wet-flow tested by Holley technicians to assure it arrives ready to run! |
