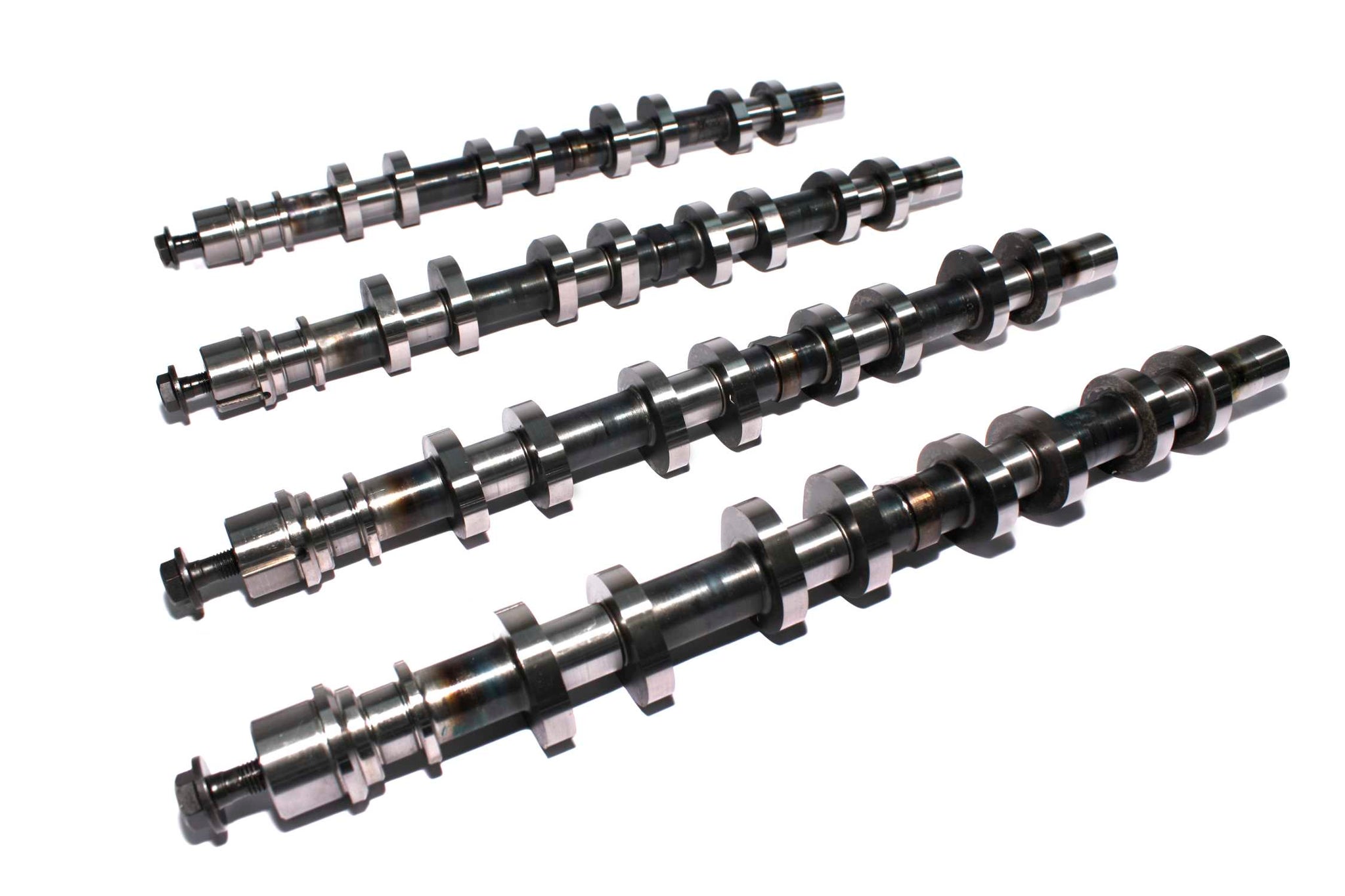

COMP Cams XE-R S-Charged/N2O 238/240 Hydraulic Roller Cams Ford 4.6/5.4/5.8 Modular 4-V 106460
Specifications:
| Camshaft Series | XE-R Supercharged and Nitrous |
| Usage | Street/Performance |
| Cam Type | Hydraulic Roller Swinging Follower |
| Grind Number | XE274BH-116 |
| Basic Operating RPM Range | 2,000-6,400 |
| Intake Duration at .050 Inch Lift | 238 |
| Exhaust Duration at .050 inch Lift | 240 |
| Advertised Intake Duration | 273 |
| Advertised Exhaust Duration | 275 |
| Lobe Separation | 116 |
| Intake Valve Lift | 0.475 |
| Exhaust Valve Lift | 0.45 |
| Lifters Included | No |
| Valve Springs Required | Yes |
| Assembly Lubricant Included | No |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Billet Steel |
| Engine Family | Ford 4.6L, 5.4L and 5.8L DOHC Modular 4 Valve 8 Cylinder (1993+) |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Lifter Type | Hydraulic Roller Swinging Follower |
| Title | XE-R S-Charged/N2O 238/240 Hydraulic Roller Cams Ford 4.6/5.4/5.8 Modular 4-V |
| Amazon ASIN | B000P5G4NM |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exemption Reason | N/A |
| C.A.R.B. E.O. Number | N/A |
| 10602 | XE274BH-116 |
| Description_SHO | XERSC 238/240 Ford4V |
| Description_INV | XER SC/N2O 238/240 H-Rlr Cam Ford Mod 4V |
| Description_KSW | Ford |
| Description_KSW | Modular |
| Description_KSW | 4-Valve |
| Description_KSW | Mustang |
| Description_KSW | Mustang GT |
| Description_KSW | SN95 |
| Description_KSW | 4V |
| Description_KSW | Mercury |
| Description_DES | XE-R S-Charged/N2O 238/240 Hydraulic Roller Cams Ford 4.6/5.4/5.8 Modular 4-V |
| Description_EXT | Max strip and street cams for centrifugal supercharged or nitrous engines. Large gains in power with larger throttle body |
| Description_EXT | mass air |
| Description_EXT | injectors and exhaust upgrades. Requires lower gears and custom tuning. Use a 2500+ stall. Rough idle. |
| Description_DEF | Engine Camshaft |
