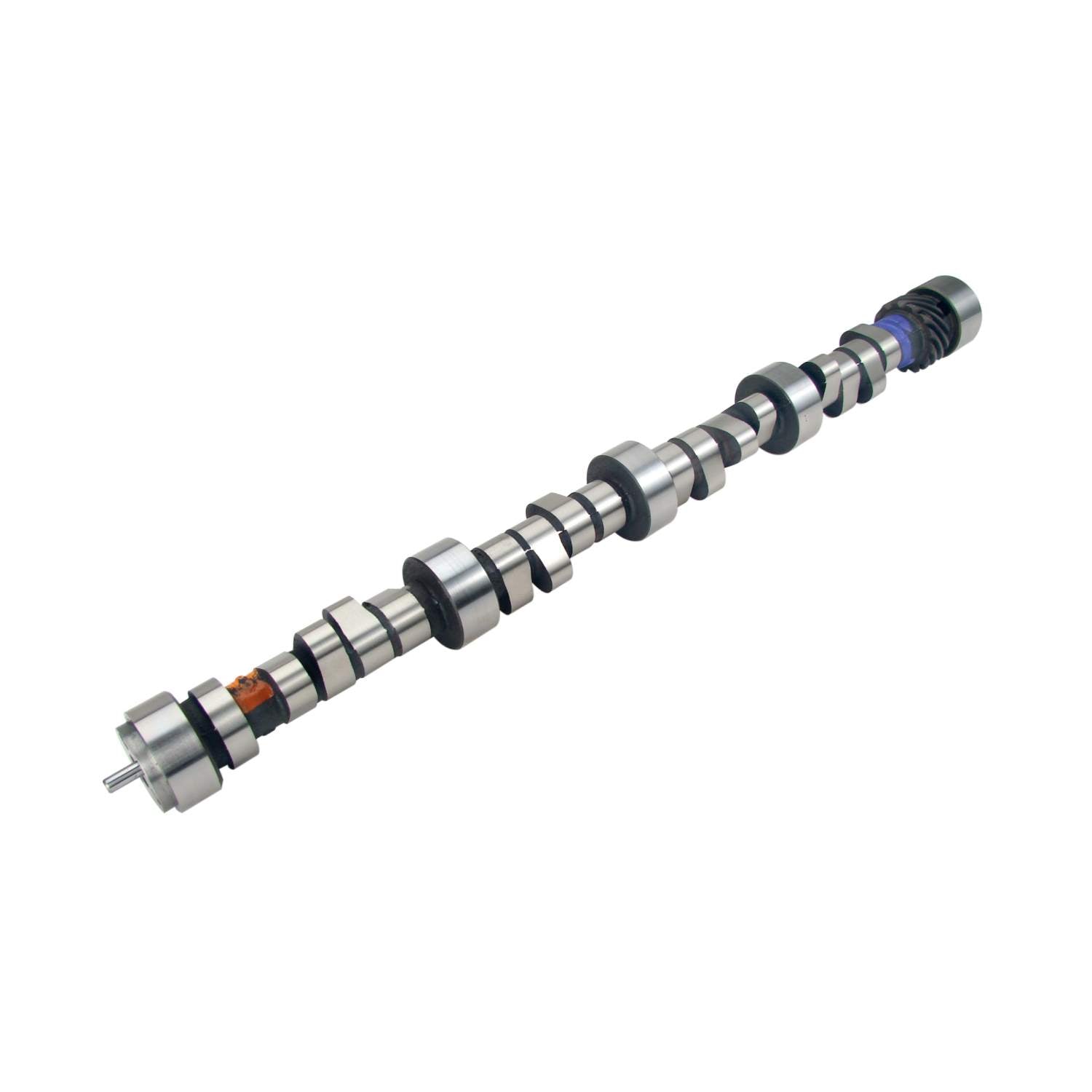

COMP Cams Good for performance LT1. Requires custom tuning and upgraded exhaust. 07-502-8
Specifications:
| Camshaft Series | Xtreme Energy |
| Usage | Street/Performance |
| Cam Type | Hydraulic Roller |
| Grind Number | 269HR-12 |
| Basic Operating RPM Range | 1,500-5,500 |
| Intake Duration at .050 Inch Lift | 218 |
| Exhaust Duration at .050 inch Lift | 224 |
| Advertised Intake Duration | 269 |
| Advertised Exhaust Duration | 276 |
| Lobe Separation | 112 |
| Intake Valve Lift | 0.495 |
| Exhaust Valve Lift | 0.503 |
| Lifters Included | No |
| Valve Springs Required | Yes |
| Assembly Lubricant Included | No |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Austempered Ductile Iron |
| Engine Family | GM LT1 and LT4 350 c.i. 8 Cylinder (1995-1997) |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Lifter Type | Hydraulic Roller |
| Title | Xtreme Energy 218/224 Hydraulic Roller Cam for GM LT1/LT4 |
| Amazon ASIN | B000VTWY5Y |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exemption Reason | N/A |
| C.A.R.B. E.O. Number | N/A |
| 10602 | 269HR-12 |
| Description_EXT | Good for performance LT1. Requires custom tuning and upgraded exhaust. |
| Description_MKT | Featuring a quicker valve opening |
| Description_MKT | the Xtreme Energy camshaft profile provides increased responsiveness and more area under the lift curve than older |
| Description_MKT | slower grinds. Designed to increase performance without sacrificing driveability and creature comforts |
| Description_MKT | the Xtreme Energy grind family offers gains in torque and horsepower while still delivering adequate vacuum for power brakes and other vacuum dependent accessories. Xtreme Energy camshafts work great in carbureted applications |
| Description_MKT | but offer the best performance with aftermarket intake manifolds |
| Description_MKT | lower gear ratios |
| Description_MKT | headers and free flowing exhaust. |
| Description_DEF | Engine Camshaft |
| Description_SHO | XE 218/224 HRlrLT1/4 |
| Description_INV | XE 218/224 Hyd Roller Cam GM LT1/LT4 |
| Description_KSW | SBC |
| Description_KSW | Chevrolet |
| Description_KSW | Chevy Small Block |
| Description_KSW | Small Block Chevrolet |
| Description_KSW | 305 |
| Description_KSW | 350 |
| Description_KSW | LT1 |
| Description_KSW | LT4 |
| Description_KSW | Chevelle |
| Description_KSW | Camaro |
| Description_KSW | Swap |
| Description_KSW | Corvette |
| Description_KSW | Bel Air |
| Description_KSW | Z28 |
| Description_KSW | Z2/8 |
| Description_KSW | Duntov |
| Description_KSW | Nova |
| Description_KSW | Monaro |
| Description_KSW | Firebird |
| Description_KSW | Trans-Am |
| Description_KSW | Pontac |
| Description_KSW | C10 |
| Description_KSW | C20 |
| Description_KSW | K10 |
| Description_KSW | Blazer |
| Description_KSW | S10 |
| Description_KSW | Monza |
| Description_KSW | Ventura |
| Description_KSW | Monte Carlo |
| Description_KSW | Malibu |
| Description_KSW | El Camino |
| Description_KSW | Caprice |
| Description_KSW | Vortec |
| Description_KSW | SS |
| Description_DES | Xtreme Energy 218/224 Hydraulic Roller Cam for GM LT1/LT4 |
| Description_APS | Buick: Commercial Chassis 94 - 96 5.7 L Engine Buick: Roadmaster 94 - 96 5.7 L Engine Cadillac: Commercial Chassis 94 - 96 5.7 L Engine Cadillac: Fleetwood 94 - 96 5.7 L Engine |
| Description_APS | Chevrolet: Camaro 92 - 97 5.7 L Engine Chevrolet: Caprice 94 - 96 4.3 L Engine Chevrolet: Caprice 94 - 96 5.7 L Engine Chevrolet: Commercial Chassis 94 - 94 5.7 L Engine |
| Description_APS | Chevrolet: Corvette 92 - 96 5.7 L Engine Chevrolet: Impala 94 - 96 5.7 L Engine Excalibur: Limited 93 - 93 5.7 L Engine Pontiac: Firebird 92 - 97 5.7 L Engine |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1994 | Buick | Commercial Chassis | Base | |
| 1995 | Buick | Commercial Chassis | Base | |
| 1996 | Buick | Commercial Chassis | Base | |
| 1994 | Buick | Roadmaster | Base | |
| 1995 | Buick | Roadmaster | Base | |
| 1996 | Buick | Roadmaster | Collector's Edition | |
| 1994 | Buick | Roadmaster | Estate Wagon | |
| 1995 | Buick | Roadmaster | Estate Wagon | |
| 1996 | Buick | Roadmaster | Estate Wagon Collector's Edition | |
| 1994 | Buick | Roadmaster | Limited | |
| 1995 | Buick | Roadmaster | Limited | |
| 1996 | Buick | Roadmaster | Limited Collector's Edition | |
| 1994 | Cadillac | Commercial Chassis | Base | |
| 1995 | Cadillac | Commercial Chassis | Base | |
| 1996 | Cadillac | Commercial Chassis | Base | |
| 1994 | Cadillac | Commercial Chassis | Brougham | |
| 1995 | Cadillac | Commercial Chassis | Brougham | |
| 1996 | Cadillac | Commercial Chassis | Brougham | |
| 1994 | Cadillac | Fleetwood | Base | |
| 1995 | Cadillac | Fleetwood | Base | |
| 1996 | Cadillac | Fleetwood | Base | |
| 1994 | Cadillac | Fleetwood | Brougham | |
| 1995 | Cadillac | Fleetwood | Brougham | |
| 1996 | Cadillac | Fleetwood | Brougham | |
| 1993 | Chevrolet | Camaro | Indianapolis 500 Pace Car | |
| 1992 | Chevrolet | Camaro | Z28 | |
| 1993 | Chevrolet | Camaro | Z28 | |
| 1994 | Chevrolet | Camaro | Z28 | |
| 1995 | Chevrolet | Camaro | Z28 | |
| 1996 | Chevrolet | Camaro | Z28 | |
| 1997 | Chevrolet | Camaro | Z28 | |
| 1992 | Chevrolet | Camaro | Z28 Heritage Edition | |
| 1994 | Chevrolet | Caprice | Classic | |
| 1994 | Chevrolet | Caprice | Classic | |
| 1995 | Chevrolet | Caprice | Classic | |
| 1995 | Chevrolet | Caprice | Classic | |
| 1996 | Chevrolet | Caprice | Classic | |
| 1996 | Chevrolet | Caprice | Classic | |
| 1994 | Chevrolet | Caprice | Classic LS | |
| 1994 | Chevrolet | Caprice | Classic LS | |
| 1994 | Chevrolet | Commercial Chassis | Base | |
| 1993 | Chevrolet | Corvette | 40th Anniversary Edition | |
| 1992 | Chevrolet | Corvette | Base | |
| 1993 | Chevrolet | Corvette | Base | |
| 1994 | Chevrolet | Corvette | Base | |
| 1995 | Chevrolet | Corvette | Base | |
| 1996 | Chevrolet | Corvette | Base | |
| 1996 | Chevrolet | Corvette | Collector's Edition | |
| 1996 | Chevrolet | Corvette | Grand Sport | |
| 1995 | Chevrolet | Corvette | Indianapolis 500 Pace Car | |
| 1994 | Chevrolet | Impala | SS | |
| 1995 | Chevrolet | Impala | SS | |
| 1996 | Chevrolet | Impala | SS | |
| 1993 | Excalibur | Limited | Base | |
| 1992 | Pontiac | Firebird | Formula | |
| 1993 | Pontiac | Firebird | Formula | |
| 1994 | Pontiac | Firebird | Formula | |
| 1995 | Pontiac | Firebird | Formula | |
| 1996 | Pontiac | Firebird | Formula | |
| 1997 | Pontiac | Firebird | Formula | |
| 1992 | Pontiac | Firebird | Trans Am | |
| 1993 | Pontiac | Firebird | Trans Am | |
| 1994 | Pontiac | Firebird | Trans Am | |
| 1995 | Pontiac | Firebird | Trans Am | |
| 1996 | Pontiac | Firebird | Trans Am | |
| 1997 | Pontiac | Firebird | Trans Am | |
| 1994 | Pontiac | Firebird | Trans Am GT | |
| 1992 | Pontiac | Firebird | Trans Am GTA |
