COMP Cams best with upgraded exhaust and 2000+ stall. Choppy idle. 94-306-5
Specifications:
| Exhaust Duration at .050 inch Lift | 224 |
| Advertised Intake Duration | 270 |
| Advertised Exhaust Duration | 270 |
| Lobe Separation | 110 |
| Intake Valve Lift | 0.516 |
| Exhaust Valve Lift | 0.516 |
| Lifters Included | No |
| Valve Springs Required | Yes |
| Assembly Lubricant Included | Yes |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Cast Iron |
| Engine Family | Cadillac 425, 472, 500 c.i. (1963-1979) |
| Cam and Lifter Kit Upgrade | CL94-306-5 |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Lifter Type | Hydraulic Flat Tappet |

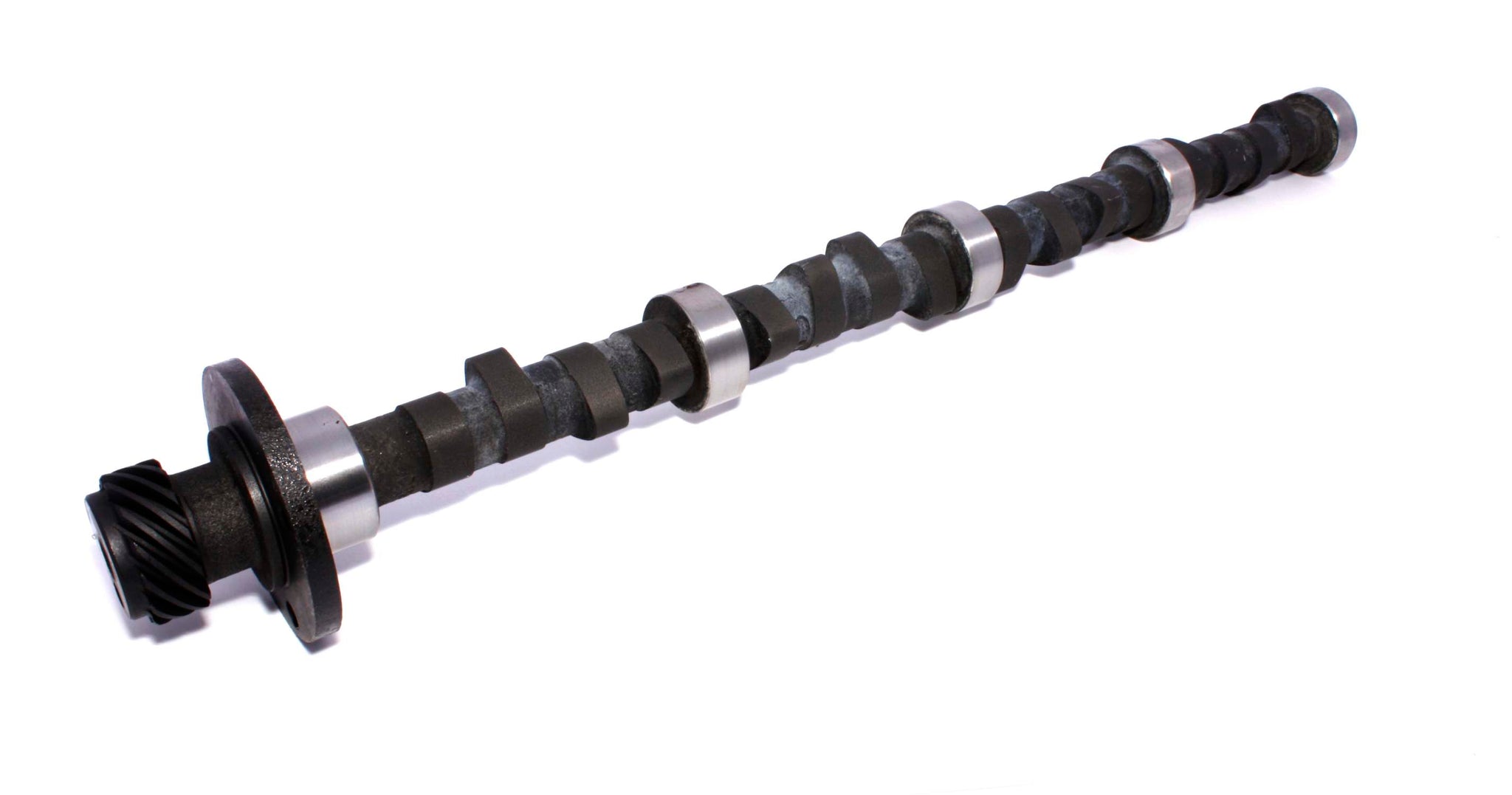

| Title | Magnum 224/224 Hydraulic Flat Cam for Cadillac 425, 472, 500 |
| Amazon ASIN | B001R9DRXU |
| C.A.R.B. Exempt for Racing and Off-Road Only Vehicles? | Yes, but must be a race/competition only vehicle. |
| C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967? | Yes, but must meet tailpipe emission standards for year of vehicle. |
| C.A.R.B. Exempt for On-Road Vehicles? | No |
| C.A.R.B. Exemption Reason | N/A |
| C.A.R.B. E.O. Number | N/A |
| 10602 | 270H |
| Camshaft Series | Magnum |
| Usage | Street/Strip |
| Cam Type | Hydraulic Flat Tappet |
| Grind Number | 270H |
| Basic Operating RPM Range | 1,500-5,500 |
| Intake Duration at .050 Inch Lift | 224 |
| Description_SHO | 270H |
| Description_INV | Magnum 224/224 Hyd Flat Cam Cadillac |
| Description_ASC | Available in a Cam and Lifter Kit under CL94-306-5 |
| Description_KSW | Cadillac |
| Description_KSW | 425 |
| Description_KSW | 472 |
| Description_KSW | 500 |
| Description_KSW | Cadillac 500 |
| Description_DES | Magnum 224/224 Hydraulic Flat Cam for Cadillac 425 |
| Description_DES | 472 |
| Description_DES | 500 |
| Description_APS | Fits Cadillac 425 |
| Description_APS | 472 and 500 |
| Description_EXT | High performance street |
| Description_EXT | strong mid-range |
| Description_EXT | best with upgraded exhaust and 2000+ stall. Choppy idle. |
| Description_DEF | Engine Camshaft |
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 1968 | Cadillac | Calais | Base | |
| 1969 | Cadillac | Calais | Base | |
| 1970 | Cadillac | Calais | Base | |
| 1971 | Cadillac | Calais | Base | |
| 1972 | Cadillac | Calais | Base | |
| 1973 | Cadillac | Calais | Base | |
| 1974 | Cadillac | Calais | Base | |
| 1975 | Cadillac | Calais | Base | |
| 1976 | Cadillac | Calais | Base | |
| 1968 | Cadillac | Commercial Chassis | Base | |
| 1969 | Cadillac | Commercial Chassis | Base | |
| 1970 | Cadillac | Commercial Chassis | Base | |
| 1971 | Cadillac | Commercial Chassis | Base | |
| 1972 | Cadillac | Commercial Chassis | Base | |
| 1973 | Cadillac | Commercial Chassis | Base | |
| 1974 | Cadillac | Commercial Chassis | Base | |
| 1975 | Cadillac | Commercial Chassis | Base | |
| 1976 | Cadillac | Commercial Chassis | Base | |
| 1977 | Cadillac | Commercial Chassis | Base | |
| 1978 | Cadillac | Commercial Chassis | Base | |
| 1979 | Cadillac | Commercial Chassis | Base | |
| 1968 | Cadillac | DeVille | Base | |
| 1969 | Cadillac | DeVille | Base | |
| 1970 | Cadillac | DeVille | Base | |
| 1971 | Cadillac | DeVille | Base | |
| 1972 | Cadillac | DeVille | Base | |
| 1973 | Cadillac | DeVille | Base | |
| 1974 | Cadillac | DeVille | Base | |
| 1975 | Cadillac | DeVille | Base | |
| 1976 | Cadillac | DeVille | Base | |
| 1977 | Cadillac | DeVille | Base | |
| 1978 | Cadillac | DeVille | Base | |
| 1979 | Cadillac | DeVille | Base | |
| 1975 | Cadillac | DeVille | Cabriolet | |
| 1976 | Cadillac | DeVille | Cabriolet | |
| 1978 | Cadillac | DeVille | Cabriolet | |
| 1979 | Cadillac | DeVille | Cabriolet | |
| 1975 | Cadillac | DeVille | d'Elegance | |
| 1976 | Cadillac | DeVille | d'Elegance | |
| 1977 | Cadillac | DeVille | d'Elegance | |
| 1978 | Cadillac | DeVille | d'Elegance | |
| 1979 | Cadillac | DeVille | d'Elegance | |
| 1978 | Cadillac | DeVille | Phaeton | |
| 1979 | Cadillac | DeVille | Phaeton | |
| 1968 | Cadillac | Eldorado | Base | |
| 1969 | Cadillac | Eldorado | Base | |
| 1970 | Cadillac | Eldorado | Base | |
| 1971 | Cadillac | Eldorado | Base | |
| 1972 | Cadillac | Eldorado | Base | |
| 1973 | Cadillac | Eldorado | Base | |
| 1974 | Cadillac | Eldorado | Base | |
| 1975 | Cadillac | Eldorado | Base | |
| 1976 | Cadillac | Eldorado | Base | |
| 1977 | Cadillac | Eldorado | Base | |
| 1978 | Cadillac | Eldorado | Base | |
| 1976 | Cadillac | Eldorado | Biarritz | |
| 1977 | Cadillac | Eldorado | Biarritz | |
| 1978 | Cadillac | Eldorado | Biarritz | |
| 1976 | Cadillac | Eldorado | Bicentenial Edition | |
| 1976 | Cadillac | Eldorado | Cabriolet | |
| 1978 | Cadillac | Eldorado | Cabriolet | |
| 1968 | Cadillac | Fleetwood | 60 Special | |
| 1969 | Cadillac | Fleetwood | 60 Special | |
| 1970 | Cadillac | Fleetwood | 60 Special | |
| 1971 | Cadillac | Fleetwood | 60 Special | |
| 1972 | Cadillac | Fleetwood | 60 Special | |
| 1973 | Cadillac | Fleetwood | 60 Special | |
| 1974 | Cadillac | Fleetwood | 60 Special | |
| 1973 | Cadillac | Fleetwood | 60 Special Brougham | |
| 1974 | Cadillac | Fleetwood | 60 Special Brougham | |
| 1975 | Cadillac | Fleetwood | 60 Special Brougham | |
| 1976 | Cadillac | Fleetwood | 60 Special Brougham | |
| 1968 | Cadillac | Fleetwood | 75 | |
| 1969 | Cadillac | Fleetwood | 75 | |
| 1970 | Cadillac | Fleetwood | 75 | |
| 1971 | Cadillac | Fleetwood | 75 | |
| 1972 | Cadillac | Fleetwood | 75 | |
| 1973 | Cadillac | Fleetwood | 75 | |
| 1974 | Cadillac | Fleetwood | 75 | |
| 1975 | Cadillac | Fleetwood | 75 | |
| 1976 | Cadillac | Fleetwood | 75 | |
| 1977 | Cadillac | Fleetwood | 75 | |
| 1977 | Cadillac | Fleetwood | 75 Formal | |
| 1978 | Cadillac | Fleetwood | Base | |
| 1979 | Cadillac | Fleetwood | Base | |
| 1968 | Cadillac | Fleetwood | Brougham | |
| 1969 | Cadillac | Fleetwood | Brougham | |
| 1970 | Cadillac | Fleetwood | Brougham | |
| 1976 | Cadillac | Fleetwood | Brougham | |
| 1977 | Cadillac | Fleetwood | Brougham | |
| 1978 | Cadillac | Fleetwood | Brougham | |
| 1979 | Cadillac | Fleetwood | Brougham | |
| 1976 | Cadillac | Fleetwood | Brougham d'Elegance | |
| 1978 | Cadillac | Fleetwood | Brougham d'Elegance | |
| 1979 | Cadillac | Fleetwood | Brougham d'Elegance | |
| 1976 | Cadillac | Fleetwood | Brougham Talisman | |
| 1977 | Cadillac | Fleetwood | Formal | |
| 1978 | Cadillac | Fleetwood | Formal | |
| 1979 | Cadillac | Fleetwood | Formal |
