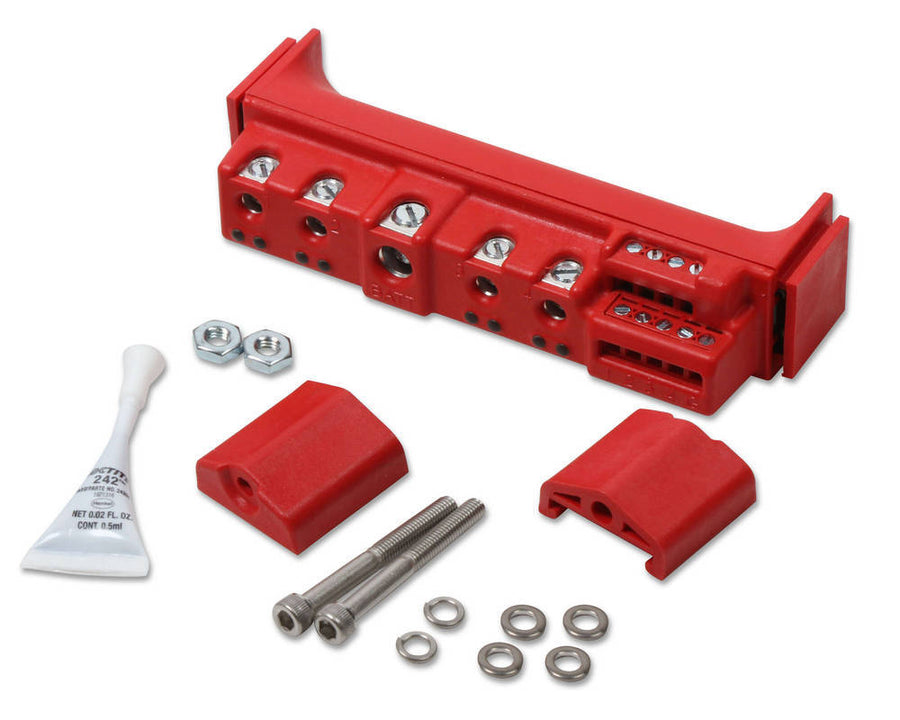

This MSD Solid State Relay Block cleans up wiring by replacing 4 standard relays in a single compact module. Four independent channels can be activated using either power or ground, with each channel capable of handling 50 amps for up to 8 seconds or 20 amps continuous. Combined, the 4 channels can deliver up to 200 amps momentary or 80 amps constant, enough to control electric fans, water pumps, nitrous solenoids, auxiliary lighting, and other accessories that would normally require a relay.
Specifications:
- Part Type: Multi-Purpose Relay Kit
- Color: Red
- Channel Count: 4
- Amperage Rating: 20A continuous per channel, 50A for up to 8 seconds
- Combined Rating: Up to 200A momentary / 80A constant
- Part Number: 7564
Built-in over-temp, short circuit, and overload protection; mounting tabs rotate 90° for flexible installation, and channels can be run in parallel for loads exceeding a single channel's rating.
FAQ
How many relays does the MSD 7564 replace?
It replaces 4 standard automotive relays in a single solid-state module.
What is each channel rated for?
20 amps continuous, or 50 amps for up to 8 seconds, with a combined rating up to 200 amps momentary or 80 amps constant across all 4 channels.
What safety protection is built in?
Automatic over-temp, short circuit, and overload protection, along with LED status indicators for each channel.
How is each channel activated?
Each of the 4 independent channels can be triggered using either a power or ground signal.
