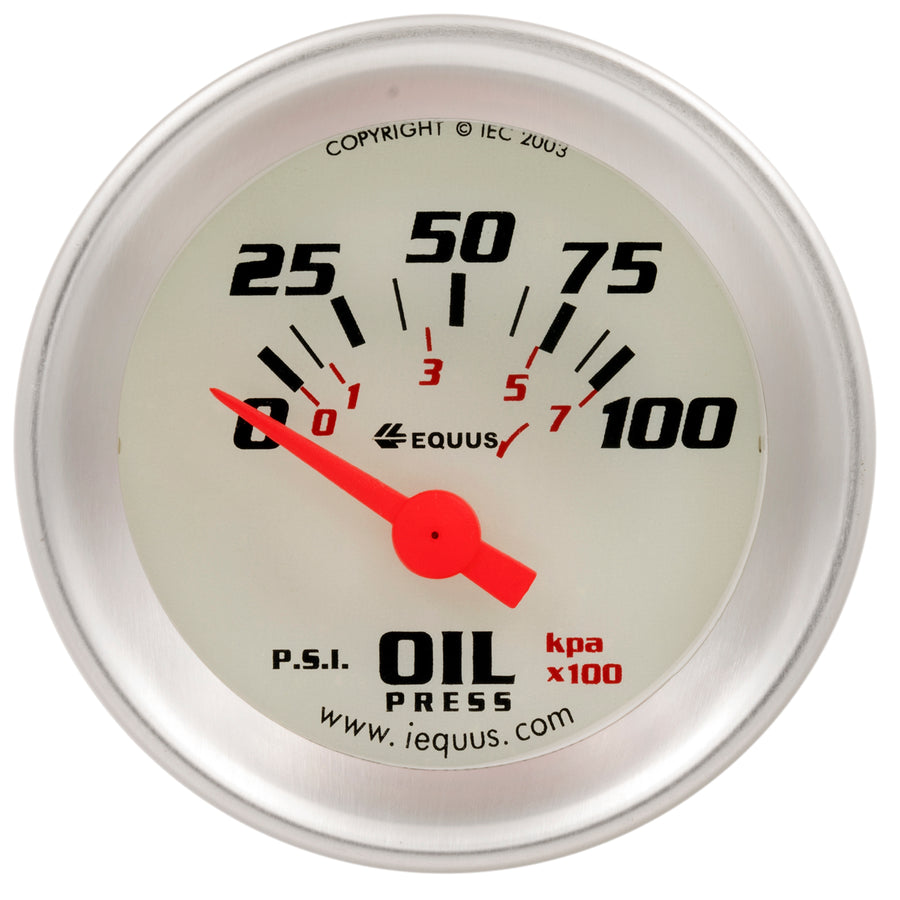

Equus GAUGE, OIL PRESS, 1.5", 0-100 PSI, 90 DEGREE SWEEP, ELEC, WHT, SLVR, 8000 SERIES E8164
Specifications:
| Description_DEF | Engine Oil Pressure Gauge |
| Description_DES | GAUGE, OIL PRESS, 1.5", 0-100 PSI, 90 DEGREE SWEEP, ELEC, WHT, SLVR, 8000 SERIES |
| Description_FAB | 0 - 100 PSI / 0 - 70 kPa |
| Description_FAB | Aluminum bezel is lightweight and optimizes appearance |
| Description_FAB | Back-Lit illumination for night use. Includes red, green, blue and yellow bulb covers. |
| Description_FAB | 90 degree analog needle sweep provides reliable performance on a budget |
| Description_FAB | Rear twist-on ring mount design makes mounting simple |
| Description_FAB | Includes 1/8 NPT sensor with brass adapters for 1/4 NPT and 1/8 BSPT |
| Description_FAB | Features 1/4 in. male spade terminals for electrical connections. Wiring not included. |
| Description_FAB | Includes installation instructions in English, French, and Spanish. |
| Description_INV | 1-1/2 Elec Oil Press |
| Description_KEY | Oil Pressure, Press, Oil PSI, PSI, Low, Oil, Electrical, Elec, sender, sensor, transducer, analog, gauge, guage, instrument, insturment |
| Description_MKT | This Accurate, Durable, And Simple To Install Iequus 8000 Performance 1.5 In. Electrical Pressure Gauge Features Race Inspired Styling, 90 Degree Sweep, White Dial, Satin Silver Aluminum Bezel, And Backlit Illumination For Efficiently Monitoring Engine Oil Pressure. Installation Hardware Included. Additional Adapters Sold Separately. |
| Description_SHO | 1-1/2" Oil Press Ga |
| Bezel Color | Aluminum |
| Bezel Style | Equus V |
| Cup/Hole Size - Metric - MM | 38 |
| Cup/Hole Size - Standard - IN | 1.5 in. |
| Dial Color | White |
| Gauge Type | Oil Pressure |
| Includes Mounting Hardware | Yes |
| Includes Sensor Unit | Yes |
| Lens Style | Flat, Clear |
| Lighting Color | Red, Green, Blue, Yellow Incandescent |
| Lighting Type | Incandescent |
| Mounting- Direct or Universal | 0 - 100 PSI / 0 - 70 kPa |
| Movement | Electric, Air-Core |
| Outer Bezel Diameter - Standard | 1.85 |
| Pointer Color | Orange |
| Product Overall Depth | 2 |
| Product Overall Height | 1.85 |
| Product Overall Width | 1.85 |
| Product Type | Gauge Oil Press |
| Prop 65 - Long Label | Warning: This product can expose you to chemicals including DiNP, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov. |
| Prop 65 - Short Label | Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer. For more information, visit www.p65warnings.ca.gov. |
| Prop 65 (C, R or CR) | C |
| Prop 65 Yes/No | Y |
| Range | 0-100 PSI |
| Size - Metric - MM | 38 mm |
| Size - Standard - IN | 1.5 in. |
| Title | 1-1/2 in Electric Oil Pressure Gauge |
| Upsell | 8444 |
| Add-On | 8162 |
