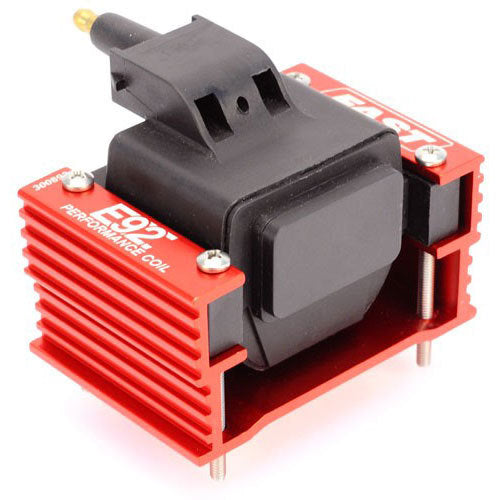

FAST The E92 features the more efficient E-Core Construction 308250
Specifications:
| Description_SHO | E92 Coil |
| Description_INV | E92 Street Coil |
| Description_ASC | Primary resistance .20 ohms, secondary resistance .82 ohms |
| Description_ASC | Primary inductance 1.9mH, secondary inductance 6.8 mH |
| Description_ASC | High-output E-core coils for race and street |
| Description_ASC | Up to 70% higher energy at the spark plug than stock for maximum performance, race or street |
| Description_ASC | E-core design with closed magnetic path reduces leakage and improves energy transfer to the spark plug, for maximum ignition performance. |
| Description_ASC | Plastic overmolded core with improved urethane encapsulation material provides protection against severe shock, harsh vibration, and high voltage breakdown by eliminating the exposed E-core |
| Description_ASC | Insulated primary connector for enhanced safety with mating connector included |
| Description_ASC | Improved coil wire retention and longer creep path protects against high voltage arcing |
| Description_ASC | 50 state legal CARB E.O. D-225-60 |
| Description_DES | E92 Performance/Street Ignition Coil |
| Description_SHP | No |
| Description_EXT | The E92 features the more efficient E-Core Construction |
| Description_MKT | The E92 Coil was designed for high performance street engines running an E6-series Ignition Control. The efficient E-core construction provides a secure housing that can handle the rigors of street and performance use while producing a high output spark. The extruded metal housing provides a durable mount and acts as an effective heat sink as well. |
| Description_DEF | Ignition Coil |
