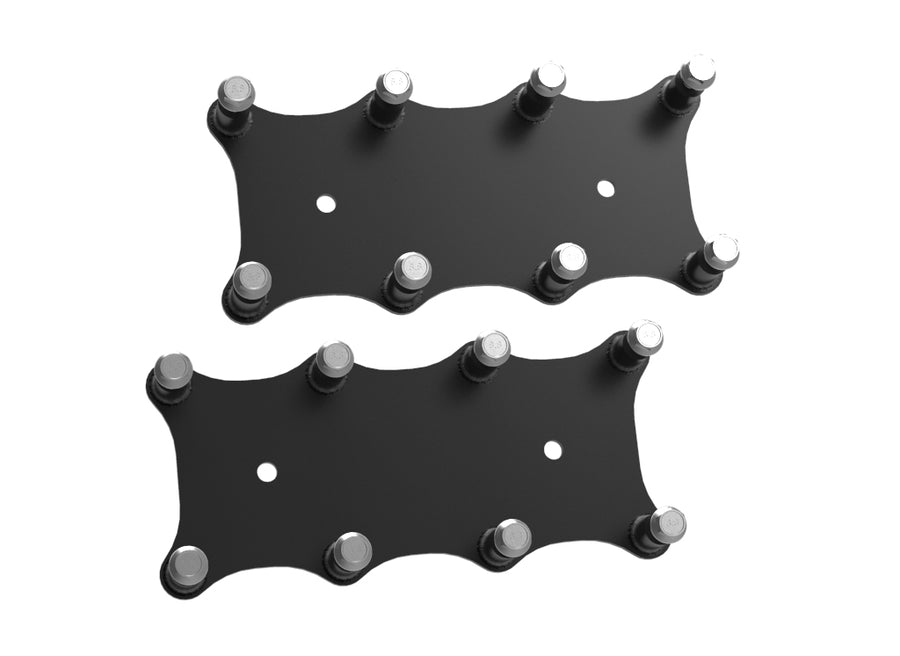

These remote coil relocation brackets let LS engine owners discreetly remote-mount their ignition coils in a location of their choice, eliminating factory coil-on-cover clutter. Fabricated from lightweight aluminum and sold in black finish, each kit is custom-sized for the specific coil model to keep the mounted package as compact as possible.
Specifications:
- Finish: Black
- Material: Aluminum
- Coil Compatibility: 3rd Gen LS coils (GM 12563293 / AC Delco D581 / MSD 8264, 82648)
- Coil Spacing: 0.904 in. / 22.95mm
- Dimension with Coils Installed: 9.3 in. L x 3.6 in. W x 2.75 in. H
- Bracket-Only Dimension: 7.8 in. L x 3.6 in. W x 0.9 in. H
- Thread Size: M6 x 1.0 x 25mm
- Hardware Included: Yes
- Sold As: Pair (coils not included)
- Part Number: 561-128
Fits 1999-2006 Chevy, Cadillac, and GMC trucks with 4.8L, 5.3L, 6.0L, or 8.1L engines, and 2003-2006 Hummer H2 with 6.0L engines.
FAQ
Are the ignition coils included with this bracket kit?
No. This kit includes two coil-specific mounting brackets and mounting hardware; the LS ignition coils themselves are sold separately.
What coils is this bracket designed for?
It's designed for 3rd Gen LS truck coils, cross-referencing to GM 12563293, AC Delco D581, and MSD 8264/82648, as well as Holley EFI SmartCoils.
What vehicles is this bracket compatible with?
It fits 1999-2006 Chevy, Cadillac, and GMC trucks with 4.8L, 5.3L, 6.0L, or 8.1L engines, and 2003-2006 Hummer H2 models with the 6.0L engine.
What finish options are available?
This bracket is available in black finish; a natural aluminum finish is also offered.
