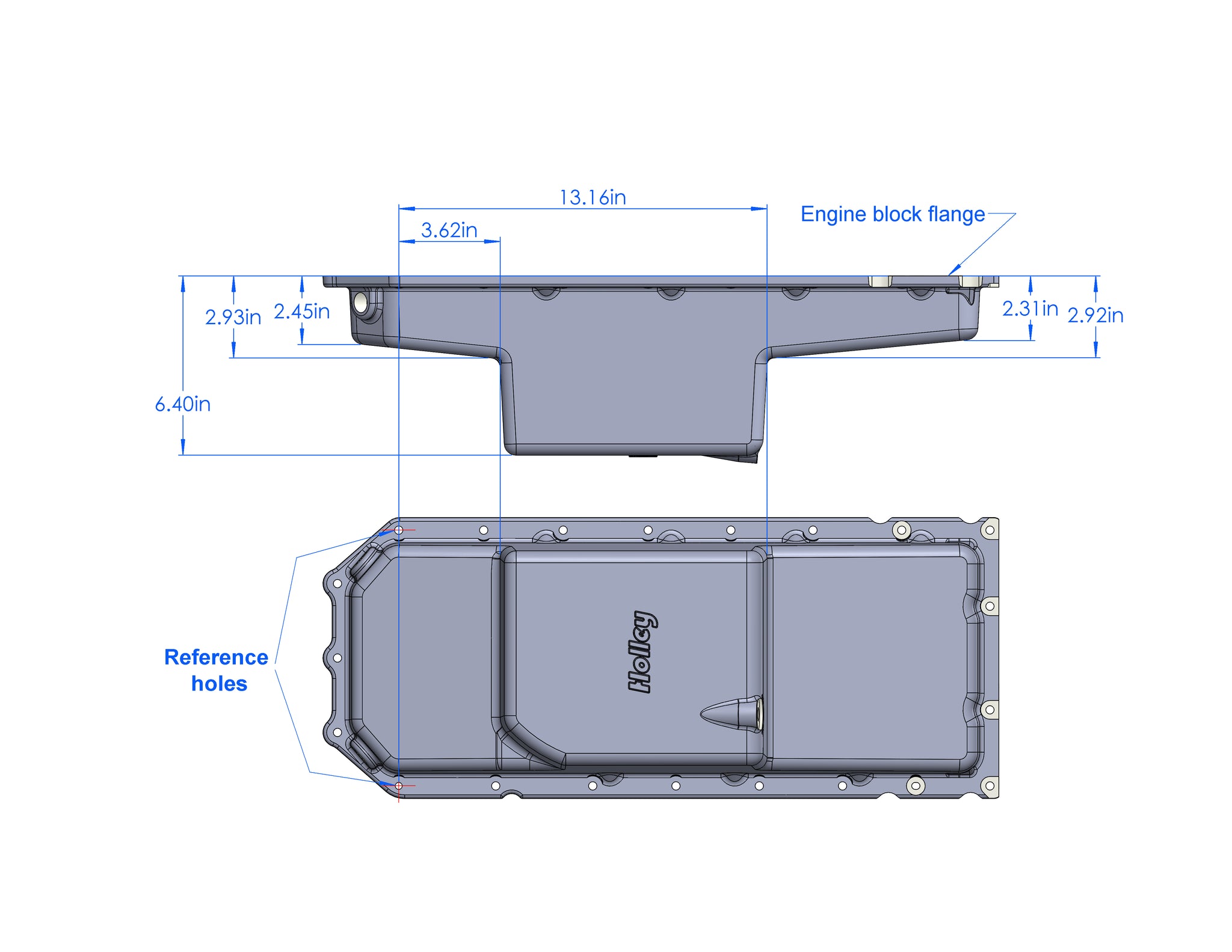

Mopar's Gen III Hemi engines are popular swap candidates, but the factory oil pan usually hangs too low to fit. This cast aluminum mid-sump oil pan (patent pending) uses an integrated windage tray and o-ring sealing for a leak-free swap, and comes as a complete kit with the pickup assembly, o-ring seal, windage tray, baffling, and mounting bolts.
Specifications:
- Application: Gen III Hemi
- Cam Style: Non-VVT (fits 2003-2008 5.7L, 2005-2010 6.1L, 2007-2010 392 Hemi crate engines)
- Category: Engine
- Finish: Black
- Material: Aluminum
- Maximum Stroke: 4.060 in.
- Oil Pan Capacity: 6.0 Quarts (6.5 with filter)
- Oil Pan Type: Cast
- Oil Return Size: 1/2 in. NPT (two ports, one per front corner, for turbo applications)
- Product Type: Oil Pan Kit
- Sub Category: Cylinder Block Components
- Turbo Oil Drainback: Yes
- Warranty: Manufacturer's Limited 90 Day Warranty
- Part Number: 302-60BK
Most Gen III Hemi engines come from the factory with a block stud that's reused to mount the oil pickup; if it's missing, it's available from Mopar as part number 06513100AA. Any dipstick from a Dodge or Ram truck originally equipped with a Gen III Hemi is compatible with this pan. Fits 1963-1974 Mopar A-Body, B-Body, C-Body, and E-Body swap applications. Note: fitment is not guaranteed when using aftermarket exhaust.
FAQ
What engines does this oil pan fit?
Earlier non-VVT Gen III Hemi engines: 2003-2008 5.7L, 2005-2010 6.1L, and 2007-2010 392 Hemi crate engines.
What's included in the kit?
The oil pan, pickup assembly, o-ring seal, windage tray, baffling, and mounting bolts.
What if my engine is missing the oil pickup mounting stud?
It can be purchased from Mopar, part number 06513100AA.
What dipstick works with this pan?
Any dipstick from a Dodge or Ram truck originally equipped with a Gen III Hemi engine.
